Disassembling the Liebert DS for Transport
57

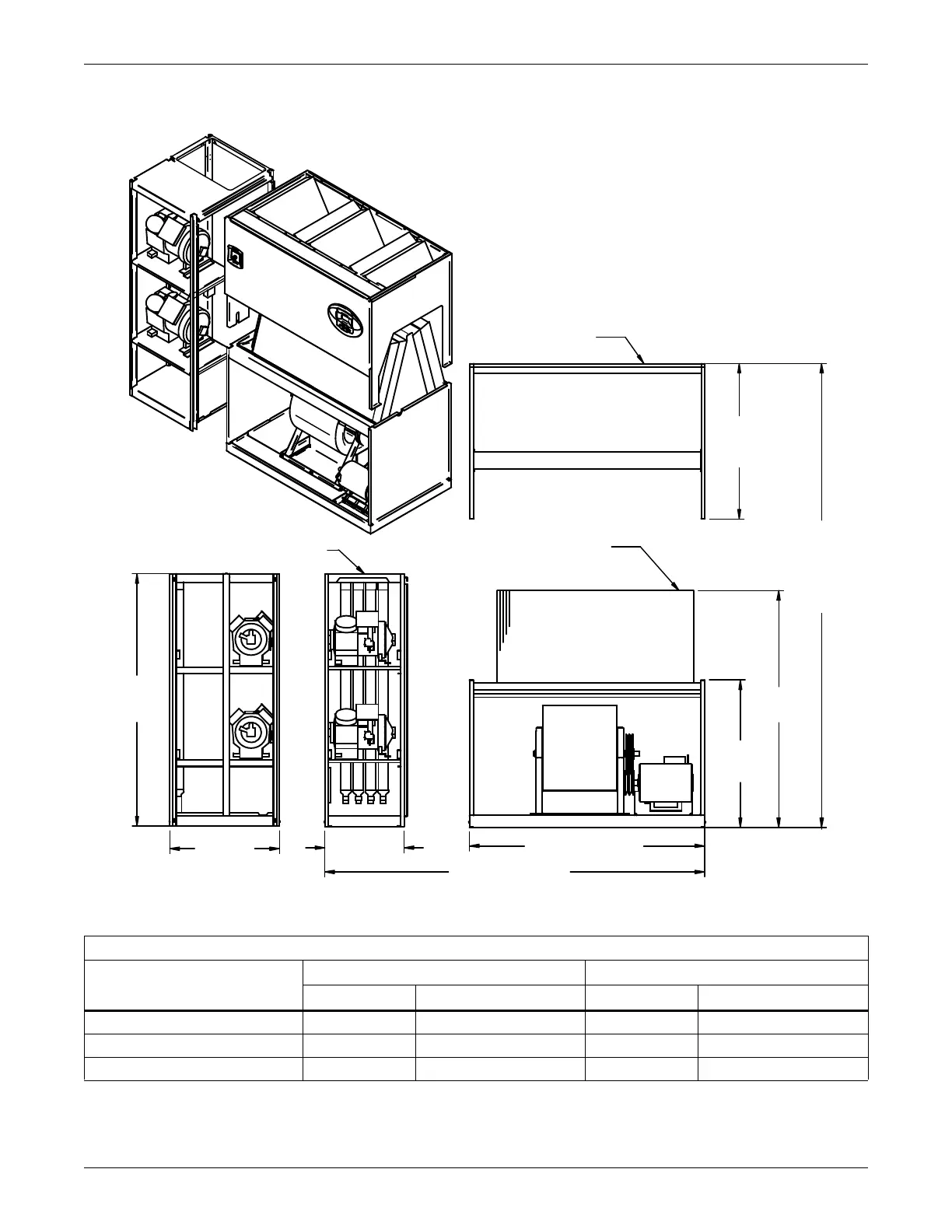

Figure 45 Component dimensions—downflow, water/glycol/GLYCOOL, 28-42kW (8-12 ton), all compressor
models
Table 31 Component weights—downflow, water/glycol/GLYCOOL, 28-42kW (8-12 ton), all
Dry Weight, Approximate, Including Panels, lb (kg)
Component
Semi-Hermetic Compressor Scroll or Digital Scroll Compressor
Water/Glycol GLYCOOL/Dual-Cool Water/Glycol GLYCOOL/Dual-Cool
Compressor Assembly 950 (432) 950 (432) 800 (364) 800 (364)
Filter & Electric Box Assembly 210 (96) 210 (96) 210 (96) 210 (96)
Blower & Coil Assembly 770 (350) 920 (418) 770 (350) 920 (418)
59" (1499mm)
DPN000899
Rev. 1
33"
(838mm)
26"
(660mm)
76"
(1930mm)
85" (2159mm)
Assembled Length
76"
(1930mm)
Assembled
Height
60-3/16"
(1529mm)
37"
(940mm)
39"
(991mm)
Compressor Assembly
Filter & Electric
Box Assembly
Blower & Coil
Assembly
Drawing views are simplified
with panels removed to show
overall dimensions.
See disassembly and handling
instructions in installation manual.
