Liebert DS Dimensions and Weights
35

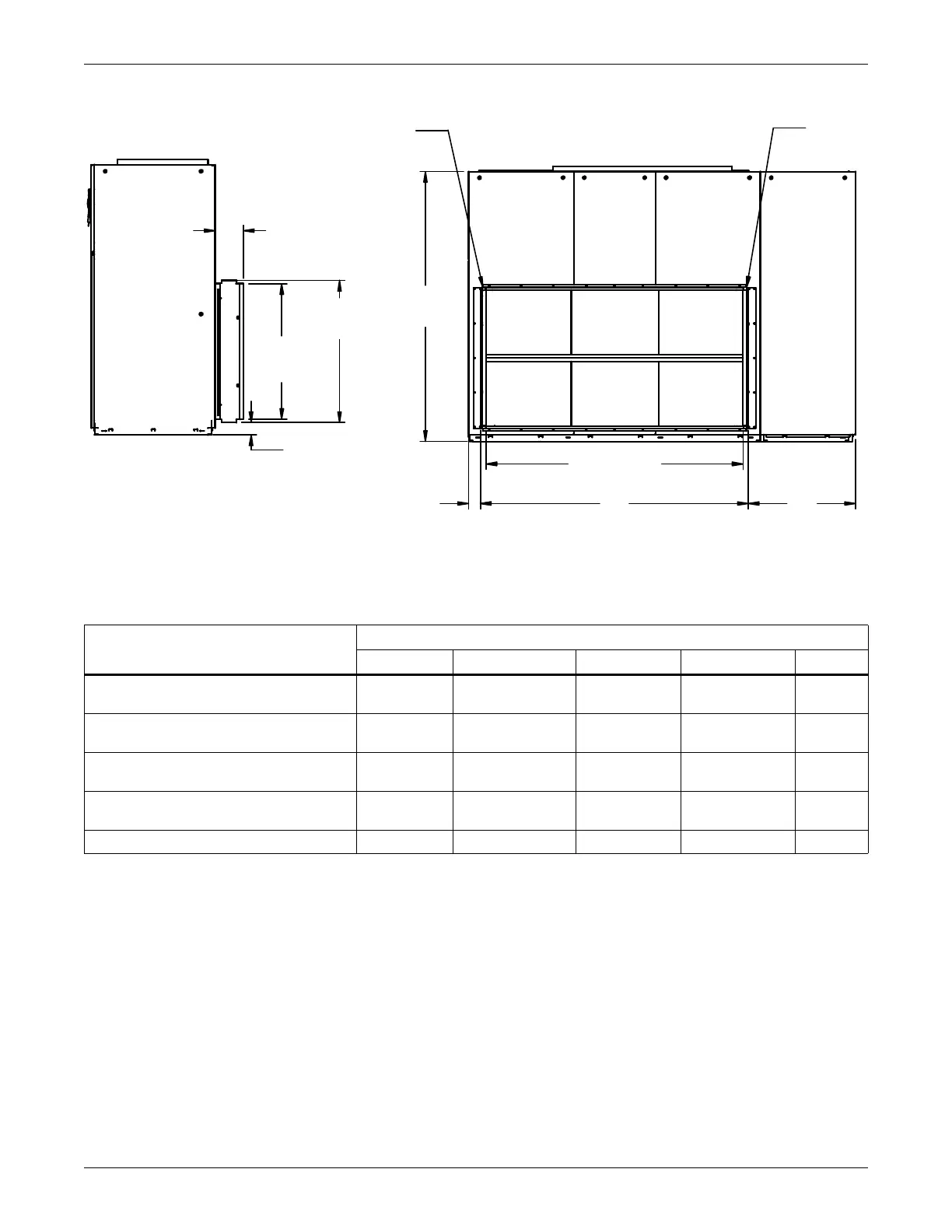

Figure 30 Rear return filter box dimensions
Table 27 Rear return filter box dimensions
Compressor Type
Dimensions, in (mm)
AB CD# Filters
28-42kW (8-12 ton) Air-Cooled Scroll
and Air-Cooled Digital Scroll Models
4-1/4 (108) 50-3/4 (1289) 18 (457) 47-5/8 (1210) 4
28-42kW (8-12 ton) Semi-Hermetic
and all Water/Glycol/GLYCOOL Models
4-1/4 (108) 50-3/4 (1289) 31 (787) 47-5/8 (1210) 4
53-77kW (15-22 ton) Air-Cooled Scroll
and Air-Cooled Digital Scroll Models
3-1/4 (83) 75-1/2 (1918) 19-1/4 (489) 72-3/8 (1838) 6
53-77kW (15-22 ton) Semi-Hermetic
and all Water/Glycol/GLYCOOL Models
3-1/4 (83) 75-1/2 (1918) 30-1/4 (768) 72-3/8 (1838) 6
105kW (30 ton) All Models 2-1/4 (57) 100-1/4 (2546) 29-1/2 (749) 97-1/8 (2467) 8
DPN001196
Rev. 0
NOTES:
1. Filters can be accessed from either side.
2. 25" (635mm) minimum clearance provided on one side for filter access.
3. Filter boxes are shipped flat and must be field assembled.
7-15/16"
(202mm)
38-1/4 "
(971mm)
Duct Size
D Duct Size
AB
C
3-1/2"
(89mm)
40"
(1016mm)
76"
(1930mm)
Filter
Access
Door
Filter
Access
Door
