EC Fans—Lowering and Removing
49

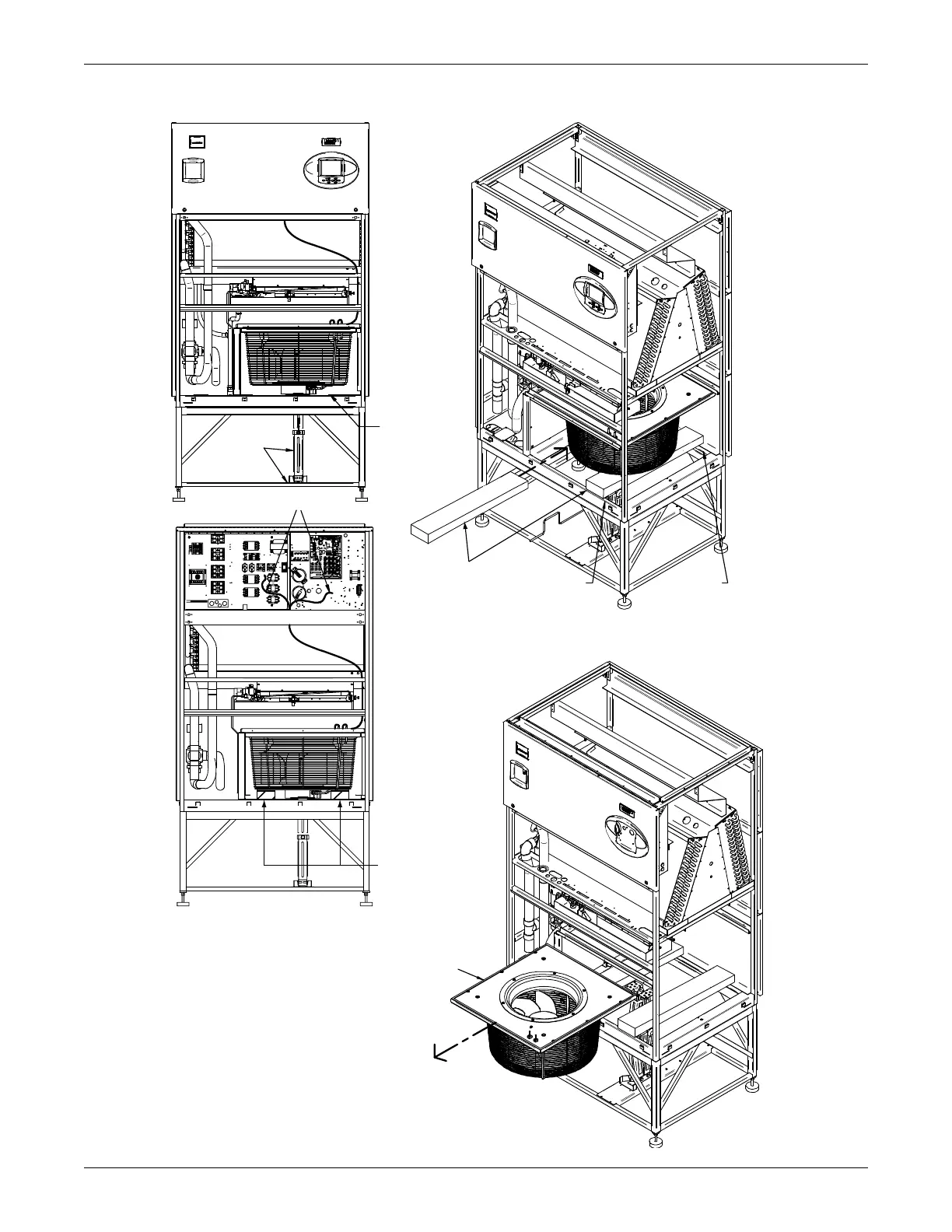

Figure 42 Removing the EC fans, Steps 6 through 9
DPN001695
Page 2, Rev. 5
Front Frame
Channel
Raise Fan
Module
With Jack
Disconnect Hign- and
Low-Voltage Wiring
Front Frame
Channel
Rear Frame
Channel
Right Side Panel Not Shown
Right Side
Panel Not Shown
DPN001695
Page 3, Rev. 5
Field-Supplied
Fan-Removal
Devices, End View
Field-Supplied
Fan-Removal
Devices
Slide the Fan Out
the Front of the Unit
