Emerson Liebert DS Series User Manual

Liebert DS Dimensions and Weights
36

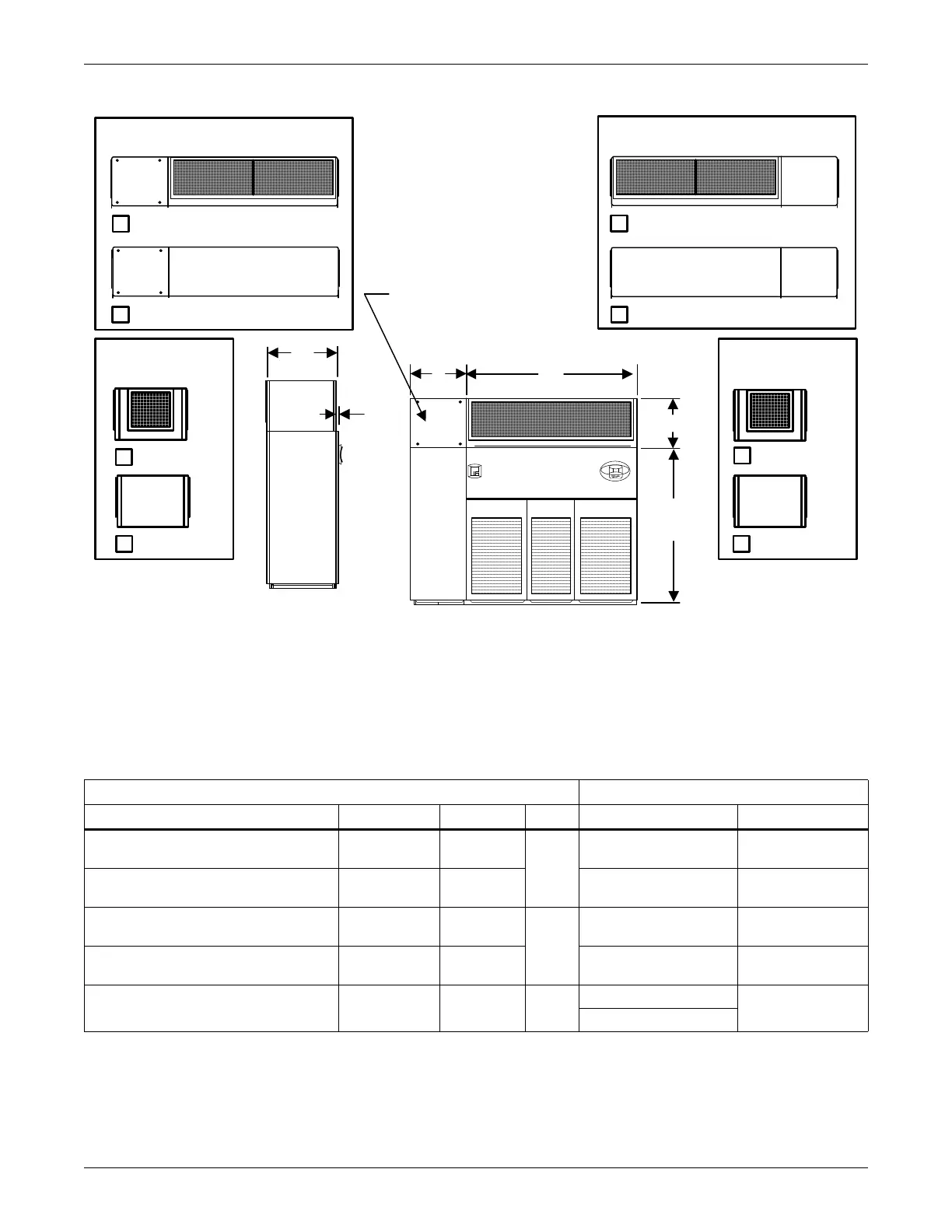

Figure 31 Upflow unit plenum dimensions
Table 28 Upflow unit plenum dimensions
Plenum Dimensions, in (mm) Grille Size, in (mm) - Nominal
A B H Front/Rear Grilles Side Grille
28-42kW (8-12 ton) Air-Cooled Scroll
and Air-Cooled Digital Scroll Models
59-1/4 (1505) 13-3/4 (349)
20
(508)
18 x 55 (457 x 1397) 18 x 20 (457 x 508)
28-42kW (8-12 ton) Semi-Hermetic
and all Water/Glycol/GLYCOOL Models
59-1/4 (1505) 26-3/4 (679) 18 x 55 (457 x 1397) 18 x 20 (457 x 508)
53-77kW (15-22 ton) Air-Cooled Scroll
and Air-Cooled Digital Scroll Models
82-1/4 (2089) 15-3/4 (400)
24
(610)
18 x 78 (457 x 1981) 18 x 20 (457 x 508)
53-77kW (15-22 ton) Semi-Hermetic
and all Water/Glycol/GLYCOOL Models
82-1/4 (2089) 26-3/4 (679) 18 x 78 (457 x 1981) 18 x 20 (457 x 508)
105kW (30 ton) All Models 105-1/4 (2673) 26-3/4 (679)
36
(914)
(1) 18 x 20 (457 x 508)
18 x 20 (457 x 508)
(1) 18 x 78 (457 x 1981)
Notes:
1. Typical 53-77kW (15-22ton) unit orientation shown with grille plenum .
View varies by unit size and plenum selection .
2. All plenums are shipped flat and must be field assembled .
3. Optional grille plenum kits must include front or rear grille .
4. Non-grille plenums are open on the top and not designed with duct flange .
DPN001187
Rev. 0
Panel removable for
condenser cleanout
access (water/glycol/
GLYCOOL models only)
Front Views – Check One (1):
With Grille
Without Grille
Rear Views – Check One (1):
With Grille
Without Grille
Side View – Unit
With Plenum
34"
(864mm)
1"
(25mm)
Left Side Views –
Check One (1):
With Grille
Without Grille
Right Side Views –
Check One (1):
With Grille
Without Grille
76"
(1930mm)
Front View – Unit With Plenum
A
B
H
