Disassembling the Liebert DS for Transport

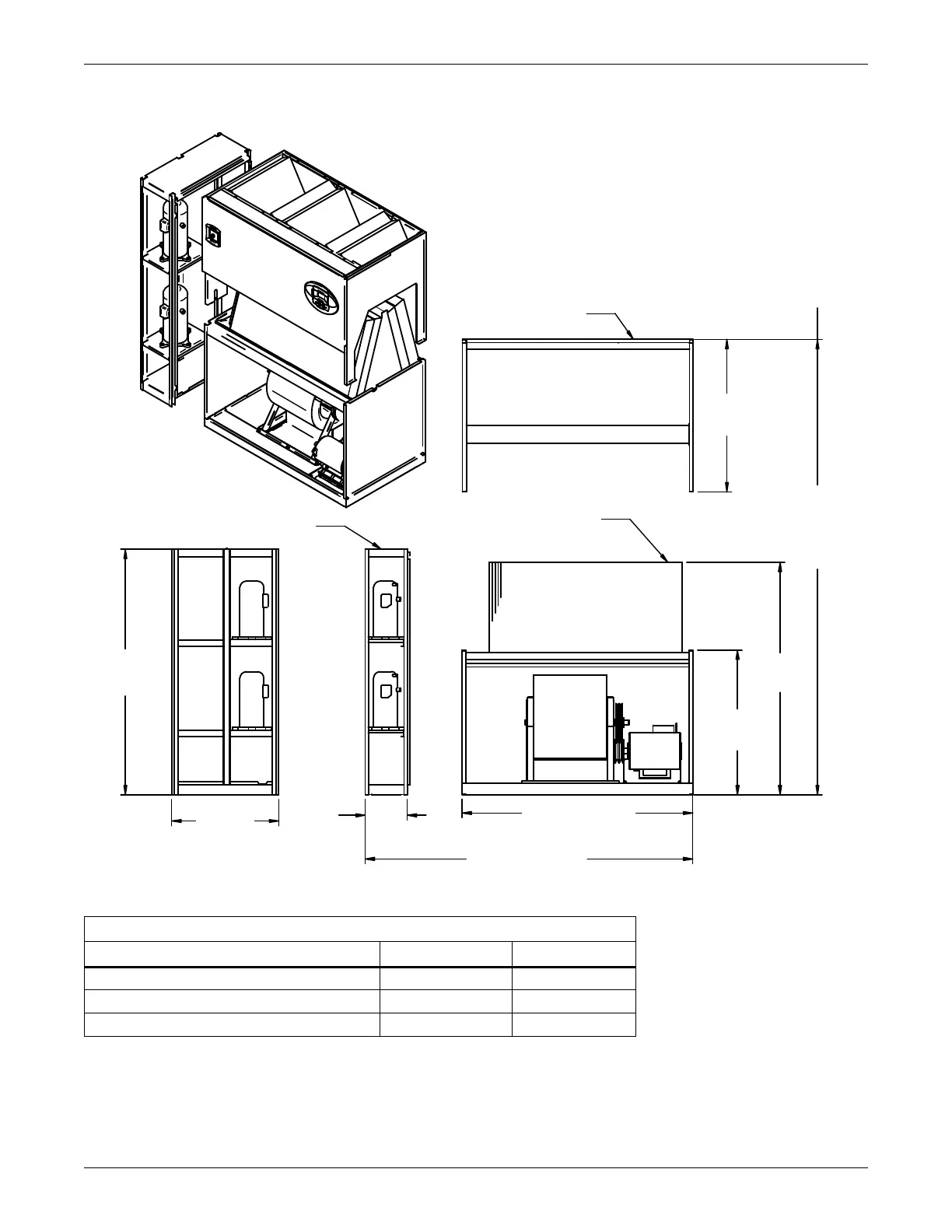

Figure 44 Component dimensions—downflow, air-cooled, 28-42kW (8-12 ton), scroll/digital scroll

compressor models

Table 30 Component weights—downflow, air-cooled, 28-42kW (8-12 ton), scroll/digital scroll

Dry Weight, Approximate, lb. (kg)

Component

Air-Cooled Dual-Cool

Compressor Assembly 490 (223) 490 (223)

Filter & Electric Box Assembly 210 (96) 210 (96)

Blower & Coil Assembly 770 (350) 920 (418)

59" (1499mm)

DPN000802

Rev. 1

33"

(838mm)

13"

(330mm)

76"

(1930mm)

72" (1829mm)

Assembled Length

76"

(1930mm)

Assembled

Height

60-3/16"

(1529mm)

37"

(940mm)

39"

(991mm)

Compressor Assembly

Filter & Electric

Box Assembly

Blower & Coil

Assembly

Drawing views are simplified

with panels removed to show

overall dimensions.

See disassembly and handling

instructions in installation manual.
