Liebert DS Dimensions and Weights
26

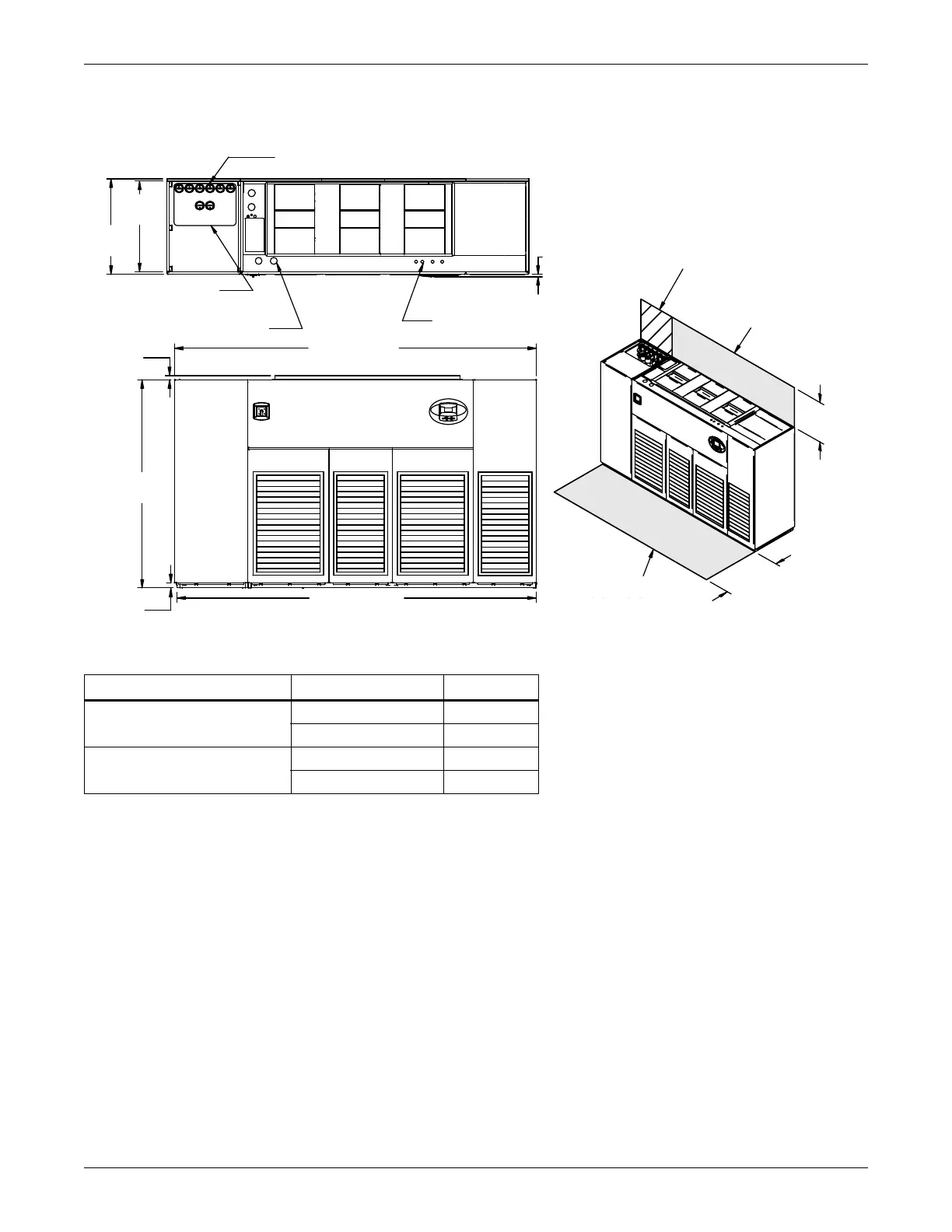

Figure 21 Cabinet and floor planning dimensions—upflow water/glycol/GLYCOOL 105kW (30 ton), all
compressors
Table 18 Weights—upflow water/glycol/GLYCOOL 105kW (30 ton), all compressors
Model 105
Semi-Hermetic Compressor
Water/Glycol 3370 (1529)
GLYCOOL/Dual-Cool 3700 (1678)
Scroll or Digital Scroll
Compressor
Water/Glycol 3250 (1474)
GLYCOOL/Dual-Cool 3580 (1624)
DPN001169
REV 0
FRONT VIEW
TOP VIEW
High Volt Connection(s)
Alternate Condenser
Fluid Piping Entrance
Alternate Refrigerant
Piping Entrance
Low Volt Connection(s)
Shaded area indicates a
recommended minimum
clearance for component
access.
Minimum required
for blower replacement
Required for
condenser cleanout
34"
(864mm)
24"
(610mm)
3/4" (19mm)
Bezels
33"
(838mm)
35"
(889mm)
2"
(51mm)
76"
(1930mm)
1-1/2"
(38mm)
131" (3327mm)
132" (3353mm)
Note: Front air return unit shown. For rear
return unit, in addition to front service area
shown, also include 25" (635mm) on one
side of unit for access to rear return filter
box.
See DPN001196, Figure 30.
