Liebert DS Dimensions and Weights
25

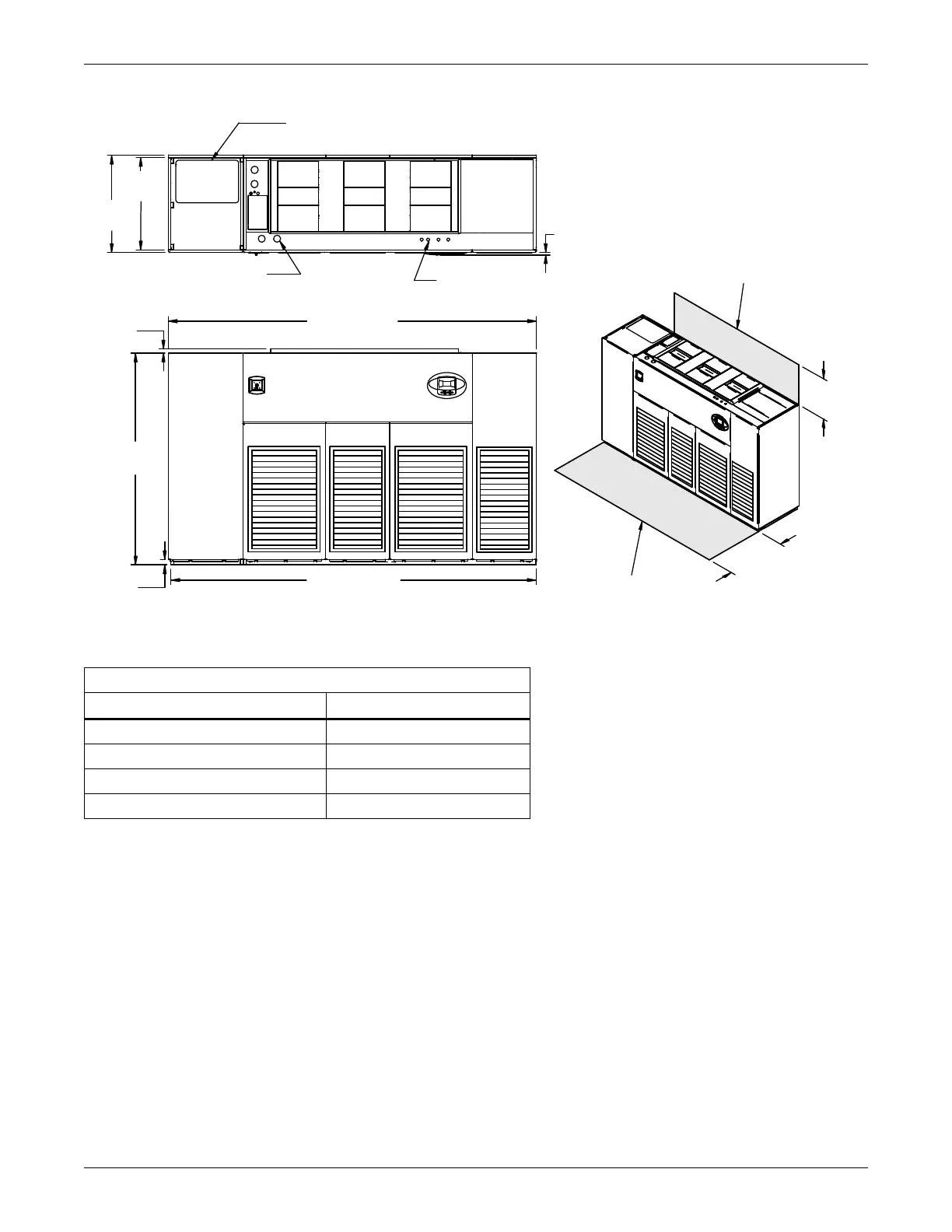

Figure 20 Cabinet and floor planning dimensions—upflow, air-cooled, 105kW (30 ton), all
Table 17 Weights—upflow, air-cooled, 105kW (30 ton), all
Dry Weight, Approximate, lb (kg)
Model 105
Semi- Hermetic, Air-Cooled
3000 (1361)
Semi-Hermetic, Dual-Cool
3330 (1510)
Scroll or Digital Scroll, Air-Cooled
2880 (1306)
Scroll or Digital Scroll, Dual-Cool
3210 (1456)
DPN001168
REV 0
FRONT VIEW
TOP VIEW
High Volt
onnection(s)
Alternate Refrigerant
Piping Entrance
Low Volt
Connection(s)
Shaded area indicates a
recommended minimum
clearance for component
access.
Minimum required
for blower replacement
34"
(864mm)
24"
(610mm)
3/4" (19mm)
Bezels
33"
(838mm)
35"
(889mm)
2"
(51mm)
76"
(1930mm)
1-1/2"
(38mm)
131" (3327mm)
132" (3353mm)
Note: Front air return unit shown. For rear
return unit, in addition to front service area
shown, also include 25" (635mm) on one
side of unit for access to rear return filter
box.
See DPN001196, Figure 30.
