Disassembling the Liebert DS for Transport

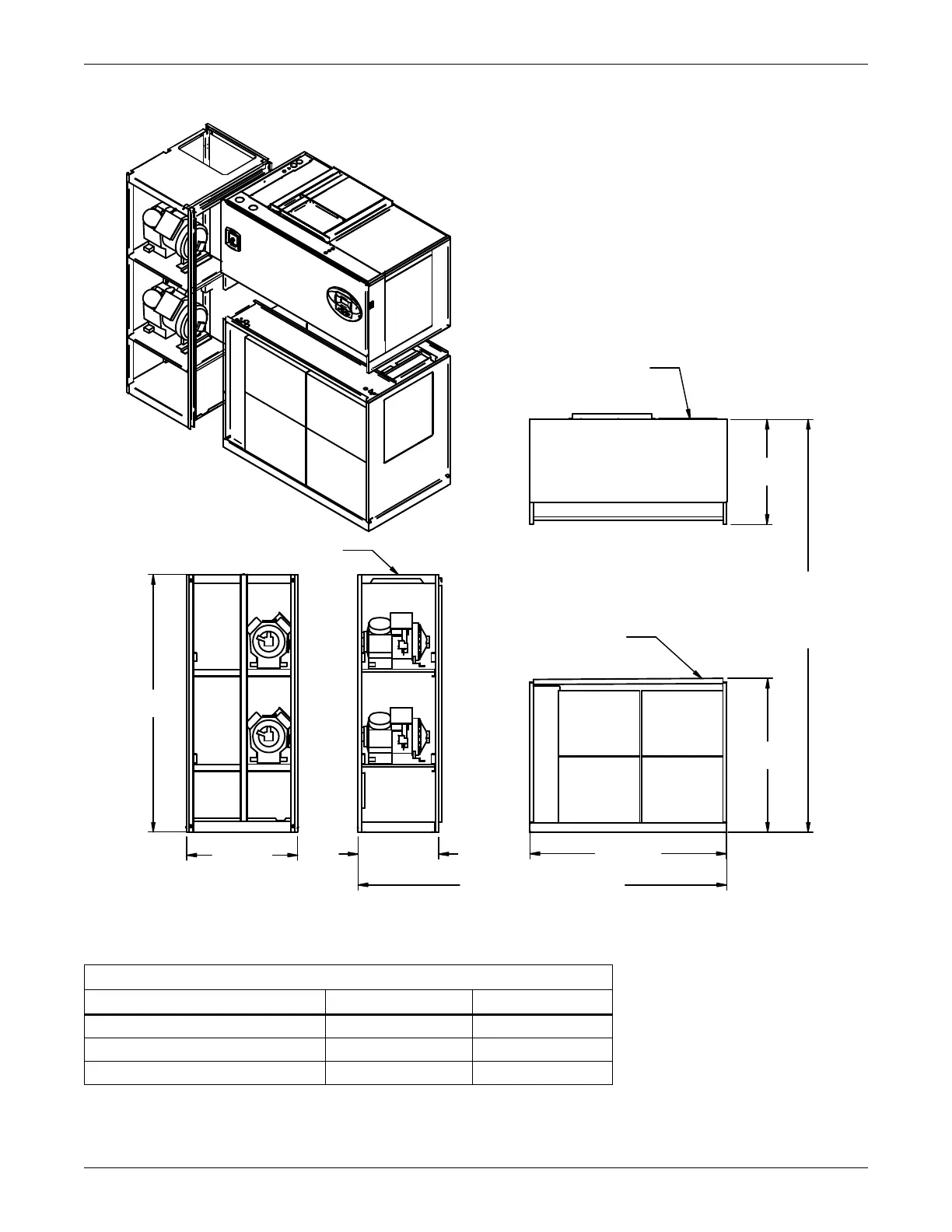

Figure 52 Component dimensions—upflow, air-cooled, 28-42kW (8-12 ton), semi-hermetic compressor

models

Table 38 Component weights—upflow, air-cooled, 28-42kW (8-12 ton), semi-hermetic compressor

models

Dry Weight, Approximate, Including Panels, lb (kg)

Component

Air-Cooled Dual-Cool

Compressor Assembly 800 (364) 800 (364)

Blower & Electric Box Assembly 510 (231) 510 (231)

Filter & Coil Assembly 520 (236) 670 (304)

DPN001171

Rev. 0

31-1/4"

(794mm)

45-13/16"

(1163mm)

76"

(1930mm)

Assembled

Height

85"

(2159mm)

59"

(1499mm)

Assembled Length

26"

(660mm)

Drawing views are simplified with panels

removed to show overall dimensions.

See disassembly and handling instructions

in installation manual.

33"

(838mm)

76"

(1930mm)

Compressor Assembly

Blower & Electric

Box Assembly

Filter & Coil

Assembly
