Disassembling the Liebert DS for Transport
60

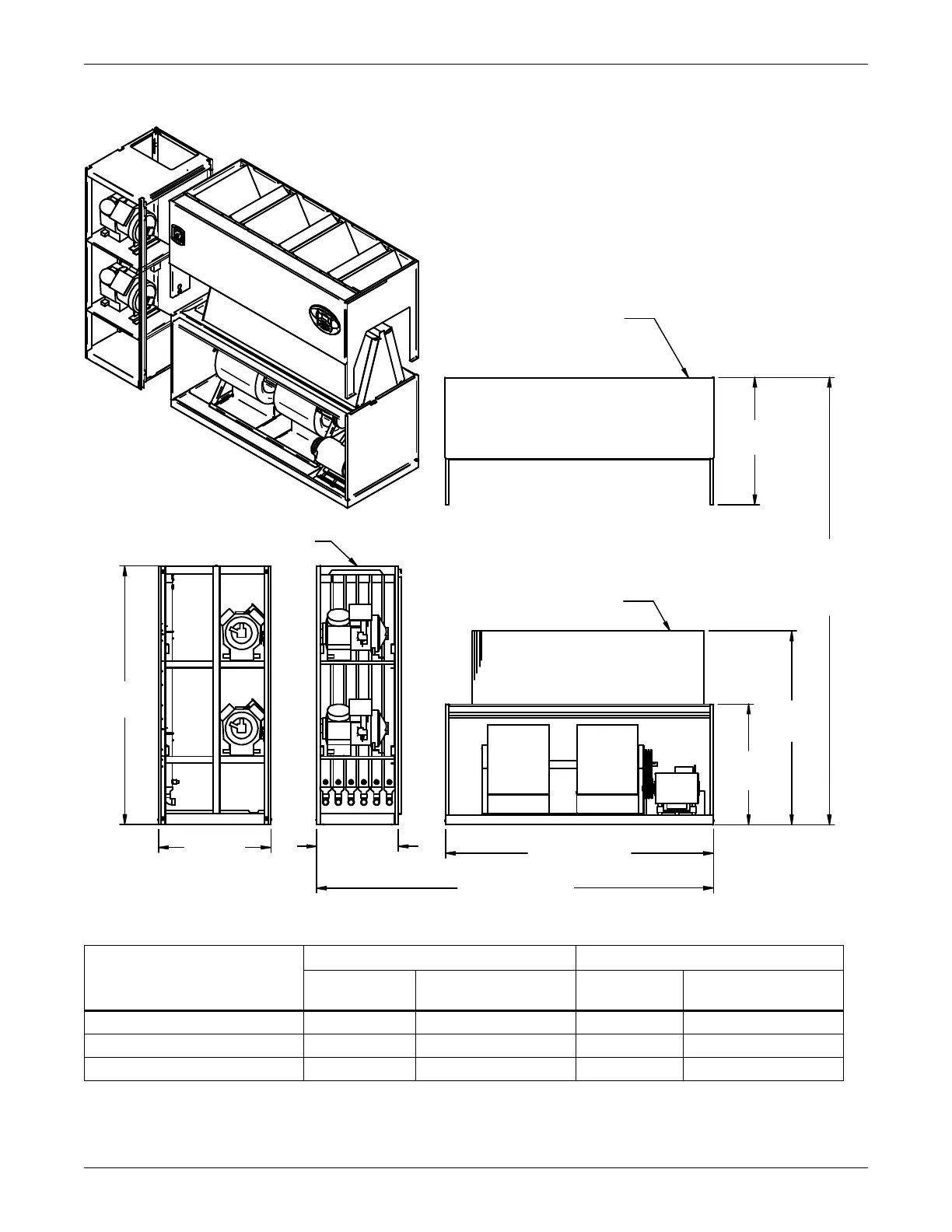

Figure 48 Component dimensions—downflow water/glycol, GLYCOOL, 53-77kW (15-22 ton), all
compressor models; forward-curved and EC fan
Table 34 Component weights—downflow water/glycol, GLYCOOL, 53-77kW (15-22 ton), all
Liebert DS Section
Semi-Hermetic Compressor Scroll Compressor
Water/Glycol
lb (kg)
GLYCOOL Dual-Cool
lb (kg)
Water/Glycol
lb (kg)
GLYCOOL Dual-Cool
lb (kg)
Compressor Assembly 1270 (578) 1270 (578) 840 (382) 840 (382)
Filter and Electric Box Assembly 250 (114) 250 (114) 250 (114) 250 (114)
Blower & Coil Assembly 1230 (560) 1410 (641) 1230 (560) 1410 (641)
76"
(1930mm)
Assembled
Height
33"
(838mm)
76"
(1930mm)
26"
(660mm)
Compressor Assembly
Filter & Electric
Box Assembly
Blower & Coil Assembly
108" (2743mm)
Assembled Length
82" (2083mm)
37"
(940mm)
59-7/16"
(1509mm)
39"
(991mm)
DPN000932
Rev. 2
Drawing views are simplified
with panels removed to show
overall dimensions.
See disassembly and handling
instructions in installation manual.
