Disassembling the Liebert DS for Transport
72

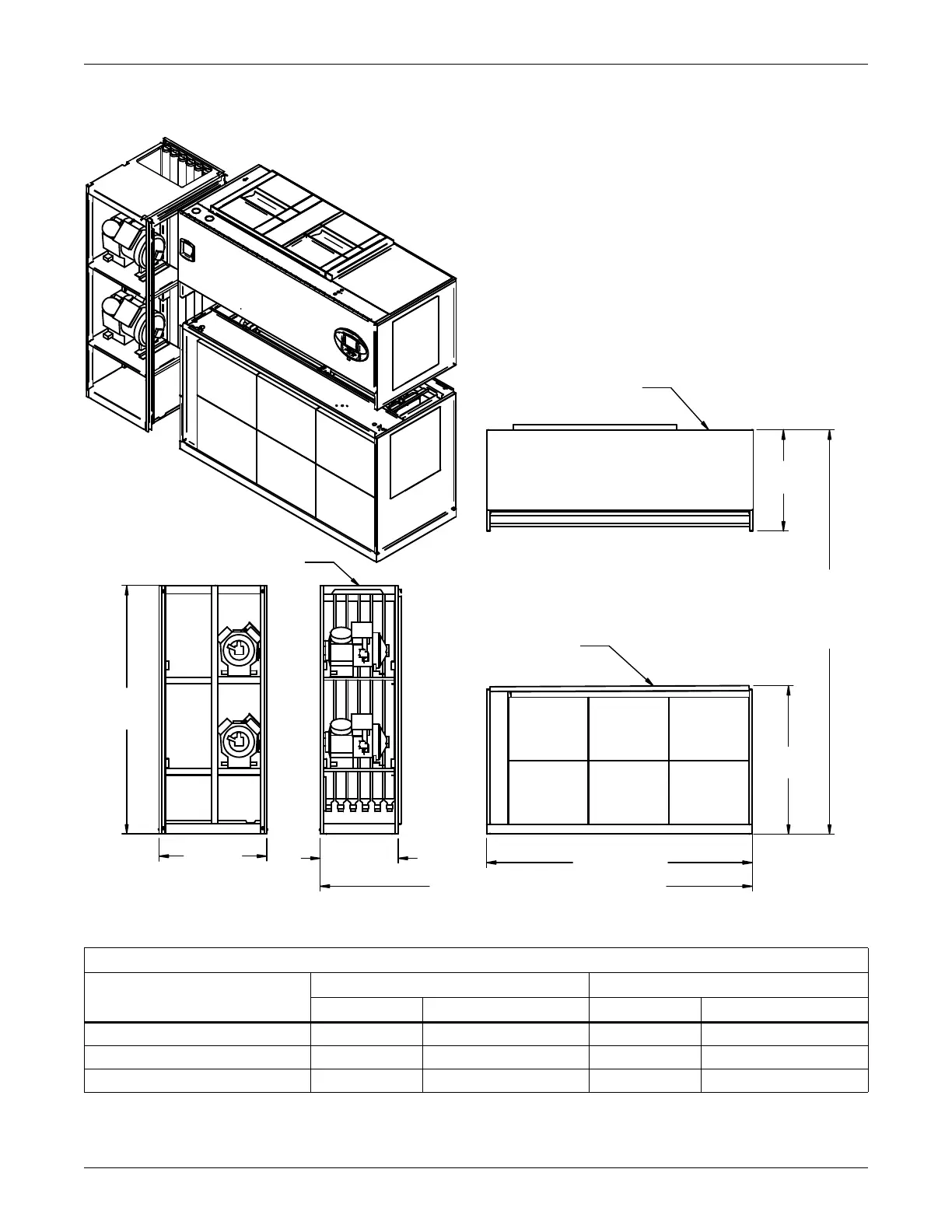

Figure 57 Component dimensions—upflow water/glycol/GLYCOOL 53-77kw (15-22 ton), all compressor
models
Table 43 Component weights—upflow water/glycol/GLYCOOL, 53-77kW (15-22 ton) all compressor
models
Dry Weight, Approximate, Including Panels, lb (kg)
Component
Semi-Hermetic Compressor Scroll or Digital Scroll Compressor
Water/Glycol GLYCOOL/Dual-Cool Water/Glycol GLYCOOL/Dual-Cool
Compressor Assembly 1270 (578) 1270 (578) 840 (382) 840 (382)
Blower & Electric Box Assembly 770 (349) 770 (349) 770 (349) 770 (349)
Filter & Coil Assembly 760 (345) 940 (426) 760 (345) 940 (426)
82" (2083mm)
33"
(838mm)
76"
(1930mm)
DPN001211
Rev. 0
26"
(660mm)
Compressor Assembly
Blower & Electric
Box Assembly
Filter & Coil
Assembly
45-13/16"
(1163mm)
31-1/4"
(794mm)
76"
(1930mm)
Assembled
Height
108" (2743mm) Assembled Length
Drawing views are simplified with panels
removed to show overall dimensions.
See disassembly and handling instructions
in installation manual.
