Disassembling the Liebert DS for Transport
71

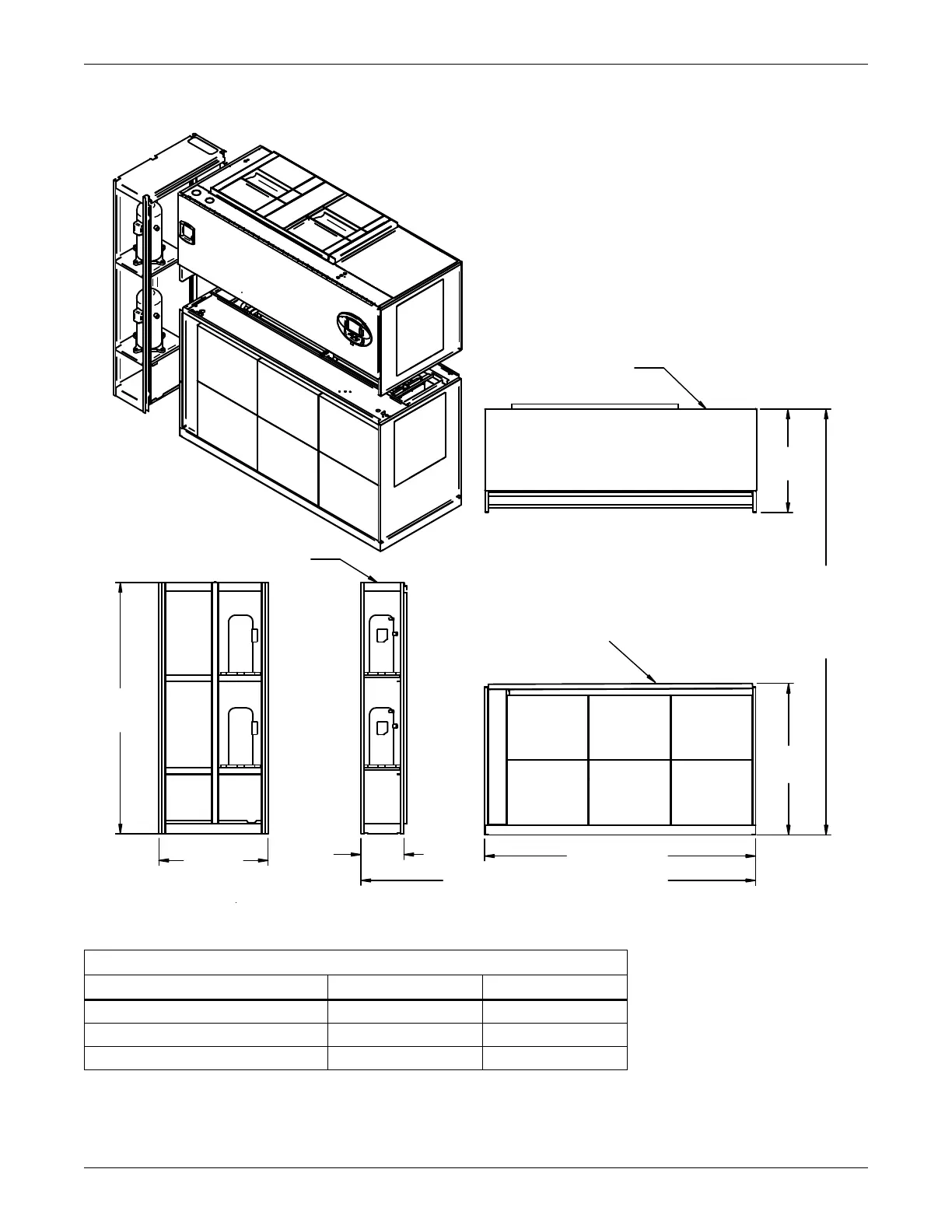

Figure 56 Component dimensions—upflow, air-cooled, 53-77kw (15-22 ton), scroll/digital scroll
compressor models
Table 42 Component weights—upflow, air-cooled, 53-77kw (15-22 ton), scroll /digital scroll compressor
models
Dry Weight, Approximate, Including Panels, lb (kg)
Component
Air-Cooled Dual-Cool
Compressor Assembly 540 (246) 540 (246)
Blower & Electric Box Assembly 770 (349) 770 (349)
Filter & Coil Assembly 760 (345) 940 (426)
82" (2083mm)
33"
(838mm)
76"
(1930mm)
DPN001210
Rev. 0
15"
(381mm)
Compressor Assembly
Blower & Electric
Box Assembly
Filter & Coil
Assembly
45-13/16"
(1163mm)
31-1/4"
(794mm)
76"
(1930mm)
Assembled
Height
97" (2464mm) Assembled Length
Drawing views are simplified with panels
removed to show overall dimensions.
See disassembly and handling instructions
in installation manual.
