Disassembling the Liebert DS for Transport
59

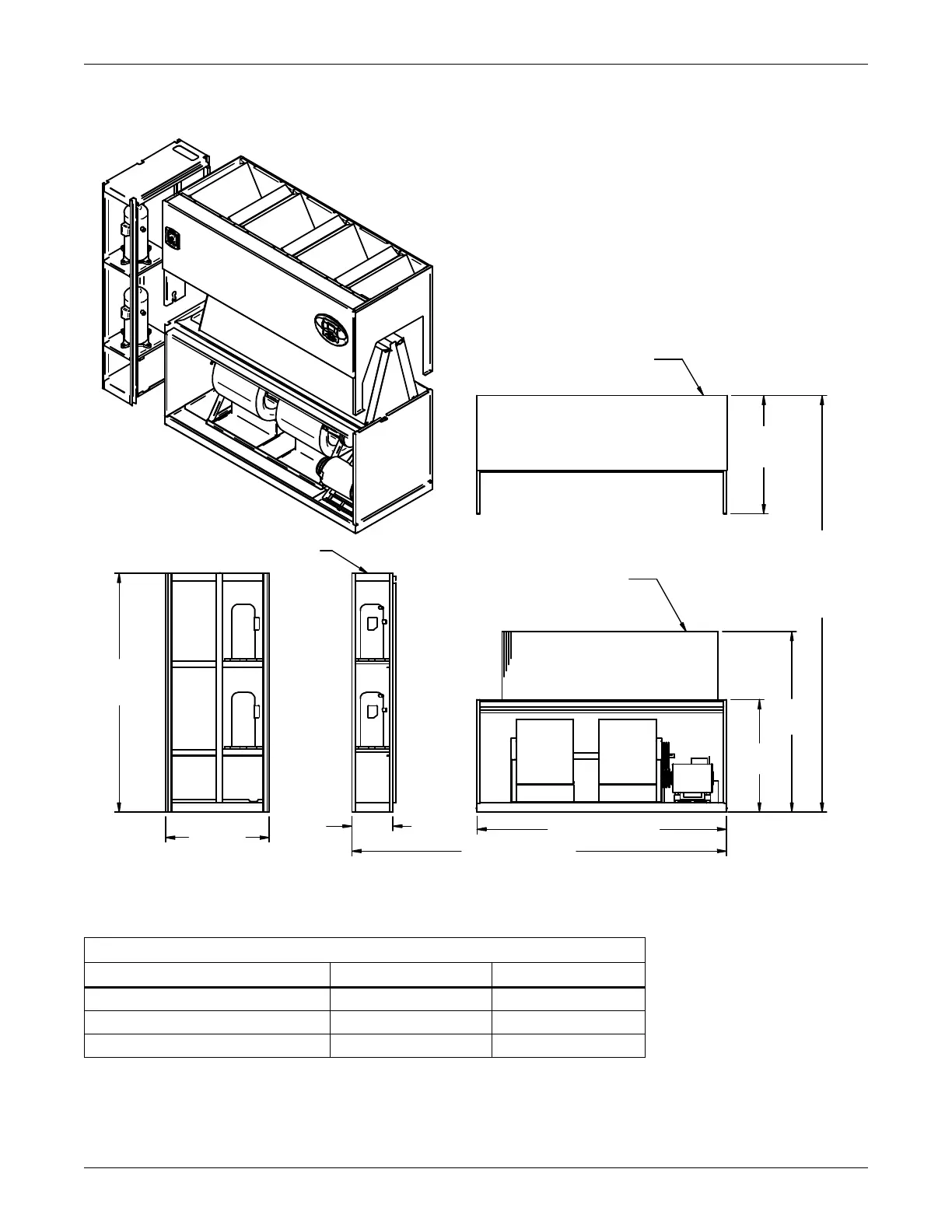

Figure 47 Component dimensions—downflow air-cooled, 53-77kW (15-22 ton), scroll/digital scroll
compressor models; forward-curved and EC fan
Table 33 Component weights—downflow, air-cooled, 53-77kW (15-22 ton), scroll/digital scroll;
forward-curved and EC fan
Dry Weight, Approximate, Including Panels, lb (kg)
Component
Air-Cooled Dual-Cool
Compressor Assembly 540 (246) 540 (246)
Filter & Electric Box Assembly 250 (114) 250 (114)
Blower & Coil Assembly 1230 (560) 1410 (641)
82" (2083mm)
DPN000927
Rev. 3
33"
(838mm)
15"
(381mm)
76"
(1930mm)
97" (2464mm)
Assembled Length
76"
(1930mm)
Assembled
Height
59-7/16"
(1509mm)
37"
(940mm)
39"
(991mm)
Compressor Assembly
Filter & Electric
Box Assembly
Blower & Coil
Assembly
Drawing views are simplified
with panels removed to show
overall dimensions.
See disassembly and handling
instructions in installation manual.
