Disassembling the Liebert DS for Transport

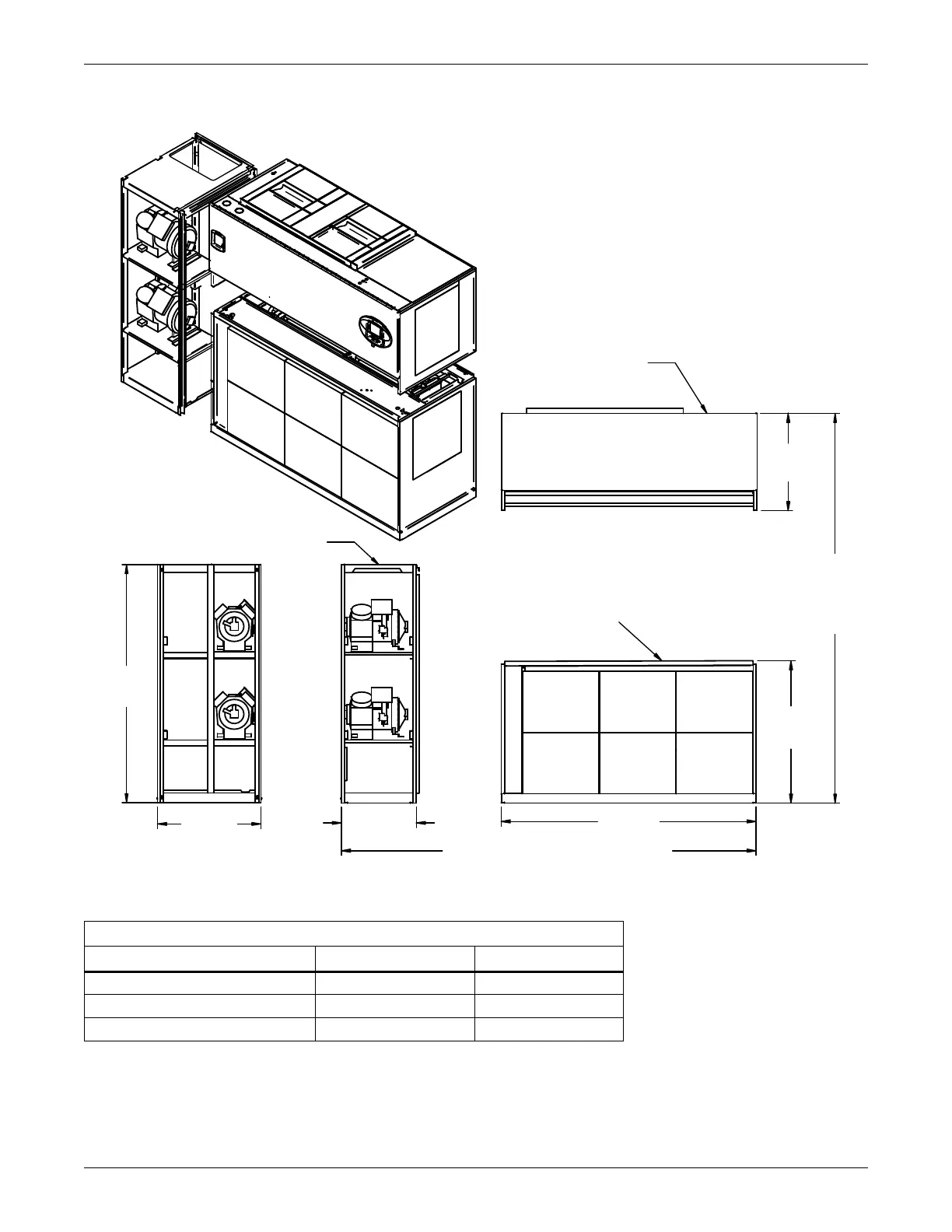

Figure 55 Component dimensions—upflow, air-cooled, 53-77kw (15-22 ton), semi-hermetic compressor

models

Table 41 Component weights—upflow air-cooled 53-77kw (15-22 ton), semi-hermetic compressor

models

Dry Weight, Approximate, Including Panels, lb (kg)

Component

Air-Cooled Dual-Cool

Compressor Assembly 970 (441) 970 (441)

Blower & Electric Box Assembly 770 (349) 770 (349)

Filter & Coil Assembly 760 (345) 940 (426)

82"

(2083mm)

33"

(838mm)

76"

(1930mm)

DPN001209

Rev. 0

26"

(660mm)

Compressor Assembly

Blower & Electric

Box Assembly

Filter & Coil Assembly

45-13/16"

(1163mm)

31-1/4"

(794mm)

76"

(1930mm)

Assembled

Height

108" (2743mm) Assembled Length

Drawing views are simplified with panels

removed to show overall dimensions.

See disassembly and handling instructions

in installation manual.
