Disassembling the Liebert DS for Transport
69

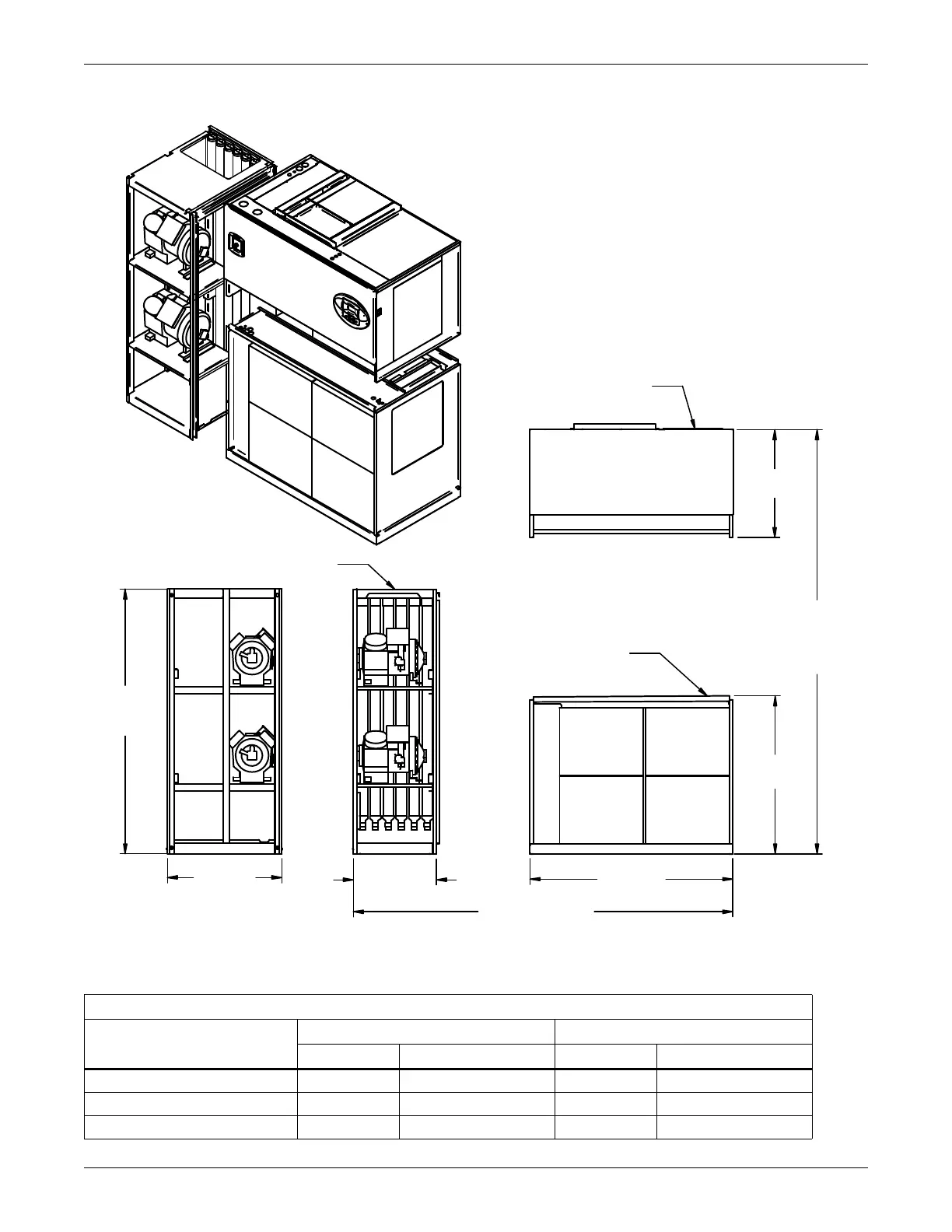

Figure 54 Component dimensions—upflow, water/glycol/GLYCOOL, 28-42kW (8-12 ton), all compressor
models
Table 40 Component weights—upflow, water/glycol/GLYCOOL, 28-42kW (8-12 ton), all compressor
models
Dry Weight, Approximate, Including Panels, lb (kg)
Component
Semi-Hermetic Compressor Scroll Compressor
Water/Glycol GLYCOOL/Dual-Cool Water/Glycol GLYCOOL/Dual-Cool
Compressor Assembly 950 (432) 950 (432) 800 (364) 800 (364)
Blower & Electric Box Assembly 510 (231) 510 (231) 510 (231) 510 (231)
Filter & Coil Assembly 520 (236) 670 (304) 520 (236) 670 (304)
DPN001173
Rev. 0
31-1/4"
(794mm)
45-13/16"
(1163mm)
76"
(1930mm)
Assembled
Height
85" (2159mm)
Assembled Length
59"
(1499mm)
26"
(660mm)
33"
(838mm)
76"
(1930mm)
Compressor Assembly
Blower & Electric
Box Assembly
Filter & Coil Assembly
Drawing views are simplified with panels
removed to show overall dimensions.
See disassembly and handling instructions
in installation manual.
