Liebert DS Dimensions and Weights
12

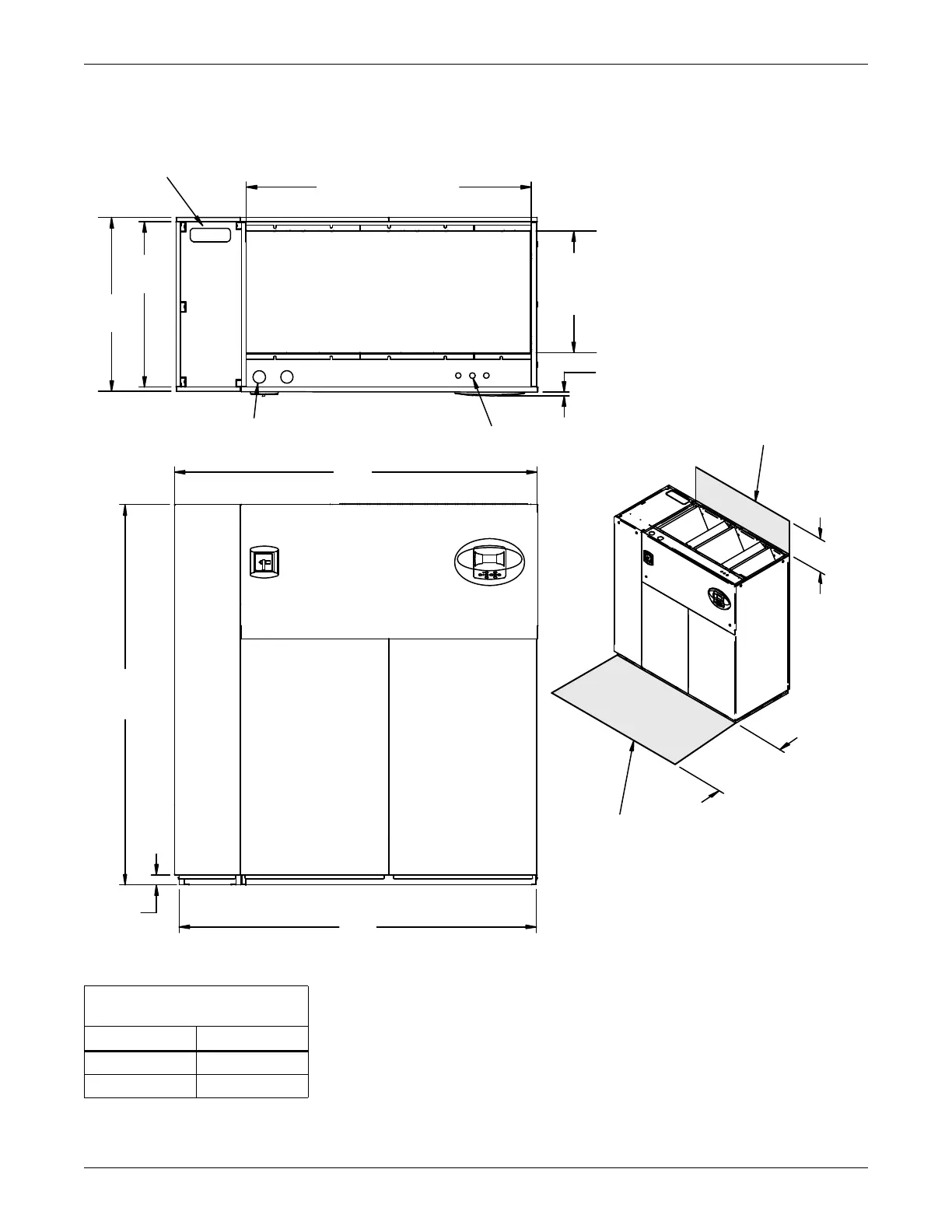

Figure 7 Cabinet and floor planning dimensions—downflow, air-cooled, 28-42kW (8-12 ton), scroll
compressor models
Table 4 Weights for downflow, air-cooled, 28-42kW (8-12 ton), scroll compressor models
Dry Weight, lb (kg),
Approximate
Model No. 028, 035, 042
Air-Cooled 1470 (668)
Dual-Cool 1620 (736)
Secondary Refrigerant
Piping Entrance
DPN000796
Rev. 2
Notes: Filters are accessible
through top of unit only.
Downflow electrical
connections can be made
from top or bottom of unit.
Shaded area indicates a
recommended minimum
clearance for component
access.
Top View
Air Inlet Opening
Secondary Entrance
High Volt Connection(s)
Secondary Entrance
Low Volt Connections
Minimum required
for filter replacement
73"
(1854mm)
72"
(1829mm)
76"
(1930mm)
35"
(889mm)
56-7/8"
(1445mm)
Opening
Opening
3/4"
(19mm)
24-3/8"
(619mm)
34" (864mm)
33"
(838mm)
15"
(381mm)
Bezels
Front View
2"
(51mm)
