Liebert DS Dimensions and Weights
28

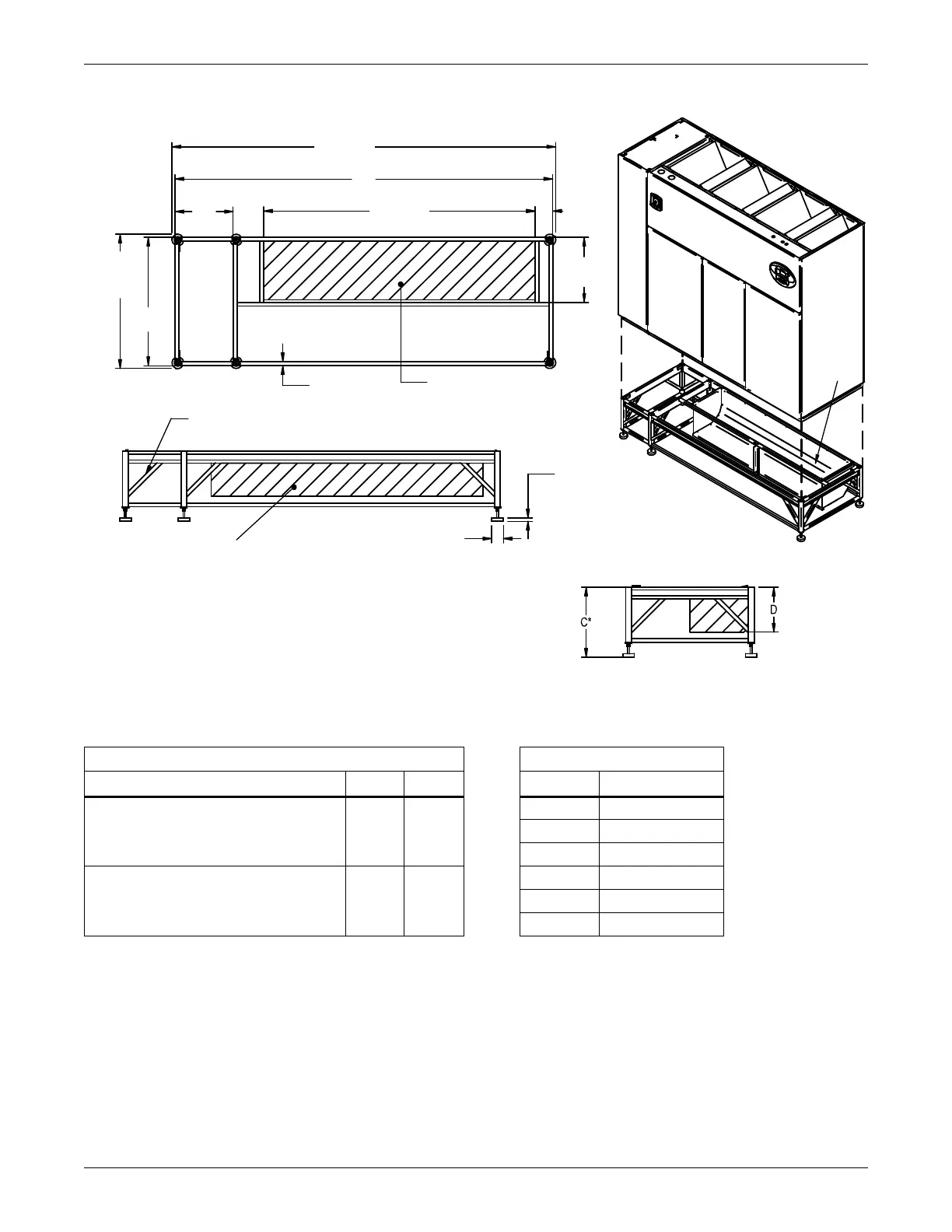

Figure 23 Floor stand dimensions—downflow, 53-77kW (15-22 ton) models
Table 20 Floor stand and floor planning dimensions—downflow, 53-77kW (15-22 ton) models
Dimensions, in. (mm) Height, in. (mm)
Model A B C* D Turning Vane
Air-Cooled Semi-Hermetic Models and
All Water/Glycol/GLYCOOL Models
108
(2743)
26
(660)
9 (229) 4 (111)
12 (305) 7 (187)
15 (381) 10 (264)
Air-Cooled Scroll Models and
Air-Cooled Digital Scroll Models
97
(2464)
15
(381)
18 (457) 13 (340)
21 (533) 16 (416)
24 (610) 19 (492)
DPN000930
REV 1
Gussets supplied on floor stands
12" (305 mm) tall and greater
Turning vane air outlet
Optional turning vane can be field-installed
in supply air discharge opening for front or
rear air discharge.
Supply air
discharge
opening
Optional turning vane
shown as front air discharge.
Supply air
discharge opening
34-1/2"
(876mm)
(with feet)
A+1-1/2"
(38mm) (with feet)
33"
(838mm)
69-3/4"
(1772mm)
16-3/4"
(425mm)
1"
(25mm) TYP.
3"
(76mm)
7/8"
(23mm)
4-1/2"
(114mm)
A
B
Right side of paneled unit is flush
with right side of floor stand. All other
paneled sides overhang floor stand 1" (25mm).
* Leveling feet are provided with ± 1-1/2" (38mm)
adjustment from nominal height C.
