Liebert DS Dimensions and Weights
23

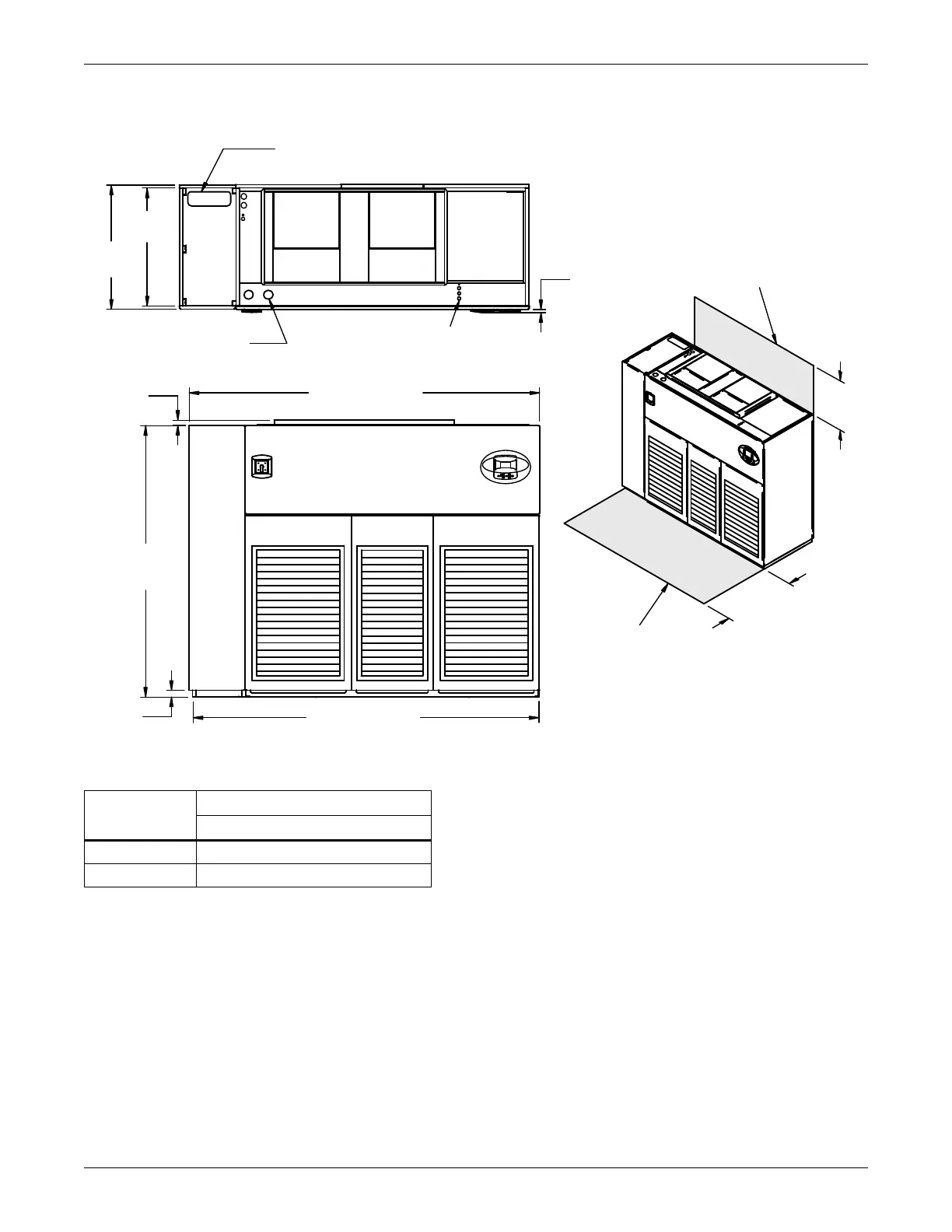

Figure 18 Cabinet and floor planning dimensions—upflow, air-cooled, 53-77kW (15-22 ton), scroll or digital
scroll compressor models
Table 15 Weight for upflow, air-cooled, 53-77kW (15-22 ton), scroll or digital scroll compressor models
Model No.
Dry Weight, lb (kg) approximate
053, 070, 077
Air-Cooled 2070 (939)
Dual-Cool 2250 (1021)
DPN001166
Rev. 1
TOP VIEW
FRONT VIEW
High Volt
Connection(s)
Alternate Refrigerant
Piping Entrance
Low Volt
Connection(s)
Shaded area indicates a
recommended minimum
clearance for component
access.
3/4"
(19mm)
Bezels
35"
(889mm)
33"
(838mm)
76"
(1930mm)
2"
(51mm)
98" (2489mm)
97" (2464mm)
1-1/2"
(38mm)
24"
(610mm)
34"
(864mm)
Minimum required
for blower replacement
Note: Front air return unit shown. For rear
return unit, in addition to front service
area shown, also include 25" (635mm) on
one side of unit for access to rear return
filter box. See DPN001196, Figure 30.
