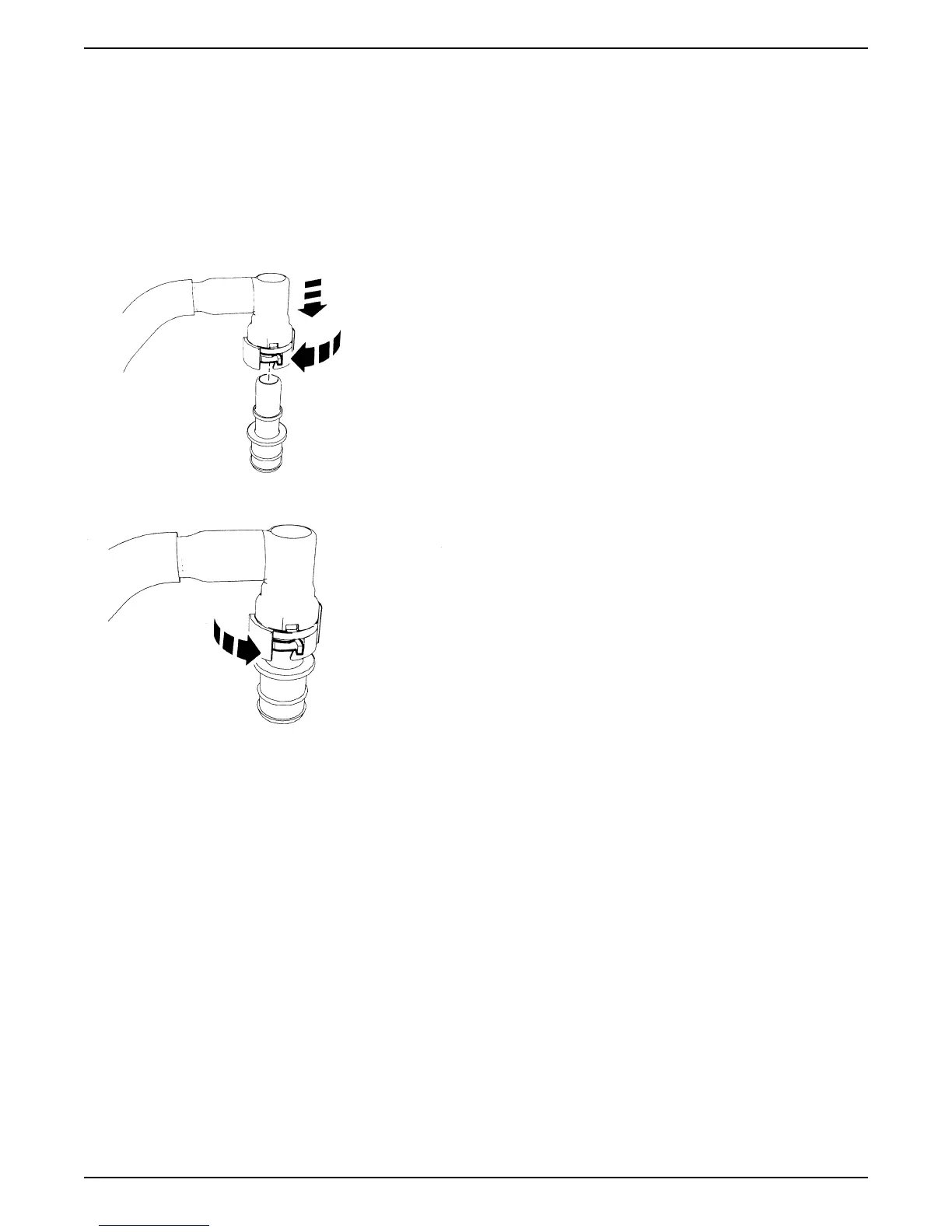

Quick Connect Coupling - Type II - Connect
1. Inspect for damage and clean fittings.
CAUTION: Make sure the fuel tube clicks into place
when installing the tube. To make sure that the fuel
tube is fully seated, pull on the tube.
2. Lubricate the o-ring seals with clean engine oil.
3. Release the locking tab and install the quick connect
coupling onto the fitting.
4. Position the locking tab into the latched position.
5. Pull on the fitting to make sure it is fully engaged.
