DSG-423 CHARGING SYSTEM
06-11
REMOVAL AND INSTALLATION
Generator - Replacement
1. Disconnect battery negative cable -- Refer to“Battery
Cleaning and Inspection” on page 9 of this section.
2. Remove or disconnect any component to allow
access and removal of generator.
3. Remove drive belt -- refer to Section 5.
4. Remove 2 bolts and position the generator aside.
5. Disconnect electrical connector.
6. Remove generator.
7. Reverse procedure to install:
• Tighten generator bolts to 25 Nm (18 lb-ft).
• Tighten B+ terminal to 8 Nm (71 lb-in).
Voltage Regulator - Replacement
1. Remove the generator -- Refer to“Generator -
Replacement” on page 11 of this section.
2. Remove 4 screws and voltage regulator (includes
brush and holder).
3. Reverse procedure to install:
• Insert a wire into the insertion hole to hold the
brushes during assembly. Remove wire when
done.
• Tighten screws to 3 Nm (27 lb-in).

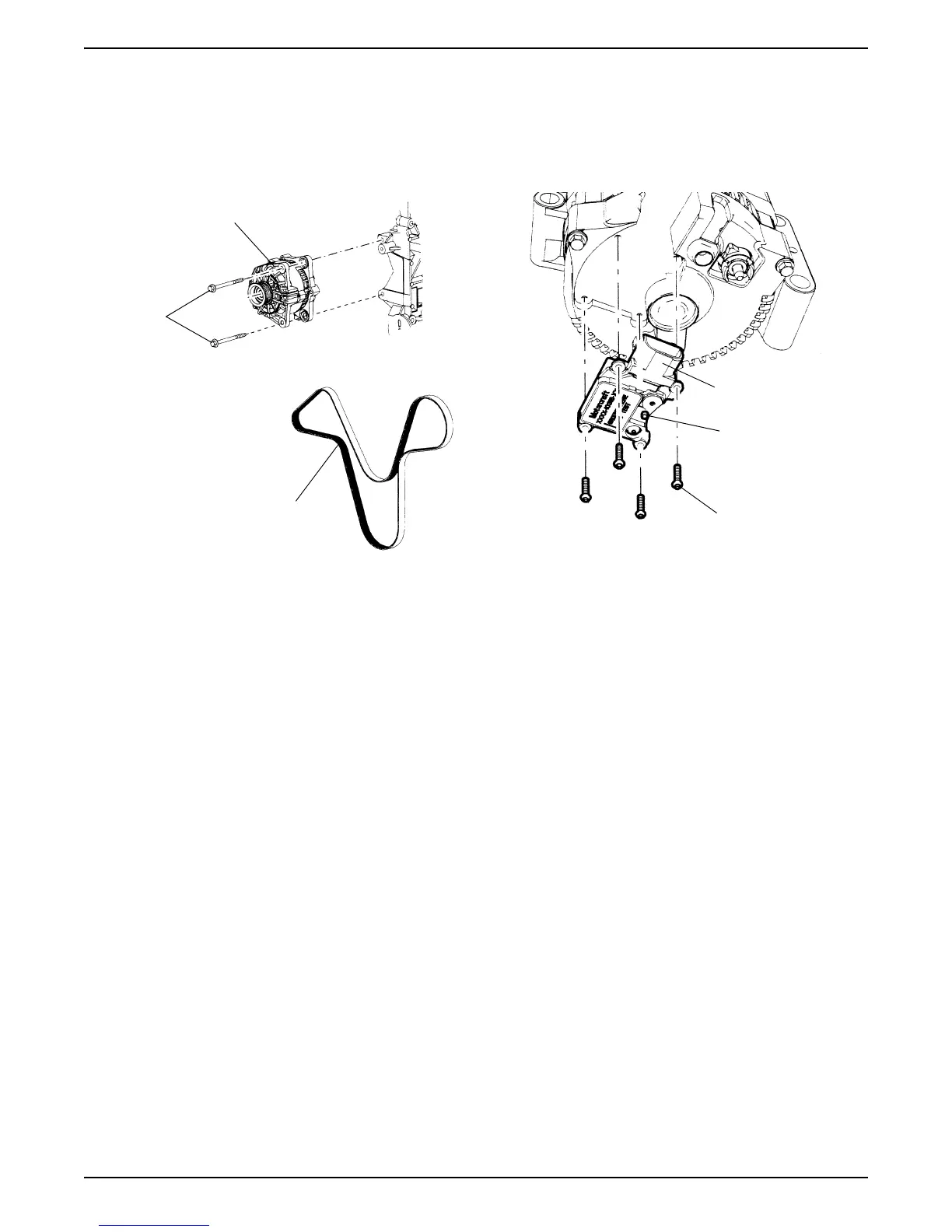

Voltage Regulator
Screws
Insertion Hole
