DSG-423 ENGINE CONTROLS
08-43
REMOVAL AND INSTALLATION

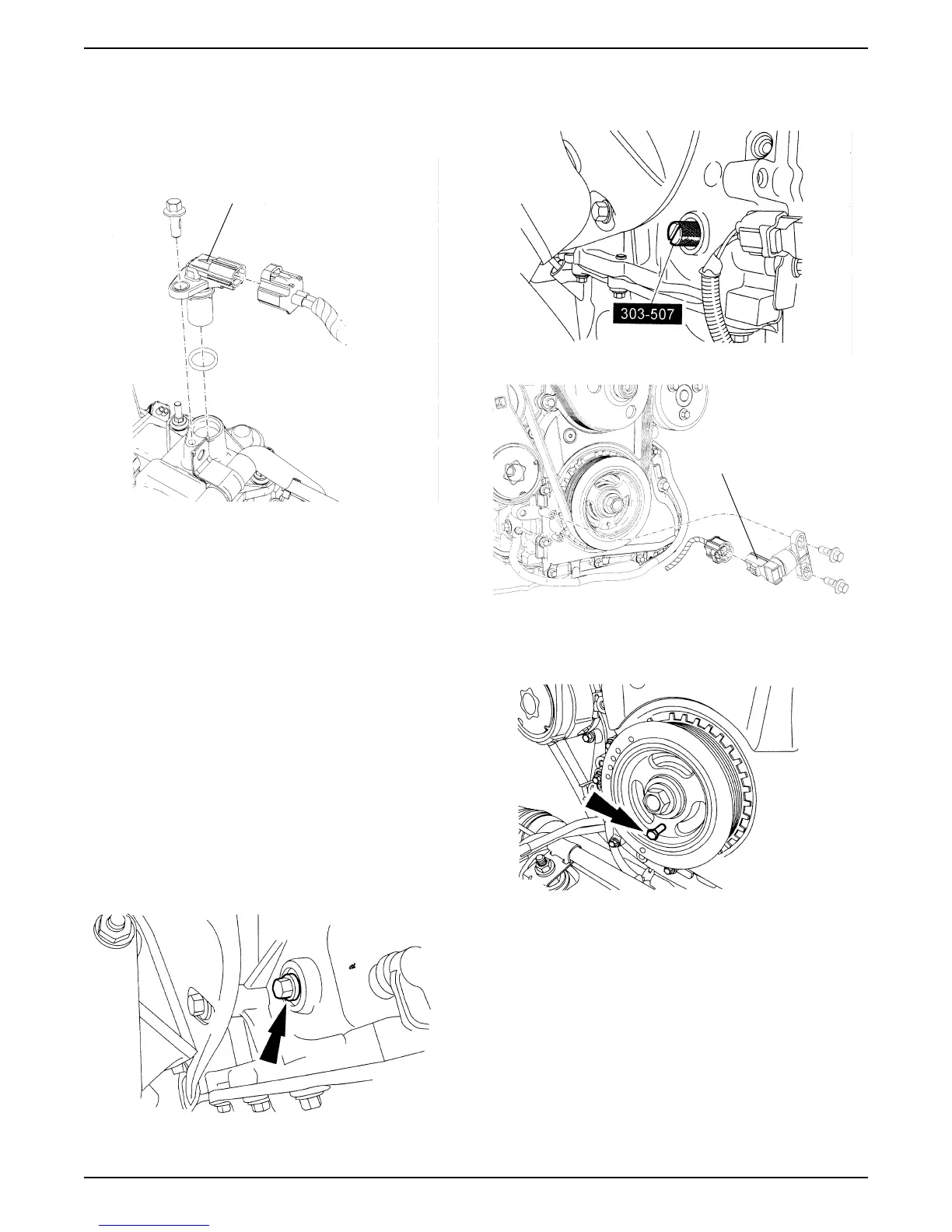

Camshaft Position (CMP) Sensor -
Replacement
1. Disconnect battery ground cable -- refer to section 6.
2. Remove or disconnect any component to allow
access and removal of the CMP Sensor.
3. Disconnect CMP electrical connector.
4. Remove bolt and CMP Sensor.
5. Reverse procedure to install:
• Use a new o-ring seal
• Lubricate o-ring with clean engine oil prior to in-
stallation
• Tighten bolt to 7 Nm (62 lb-in).
Crankshaft Position (CKP) Sensor -
Removal
1. Disconnect battery ground cable -- refer to section 6.
2. Remove or disconnect any component to allow
access and removal of the CKP Sensor.
3. Disconnect CKP electrical connector.
4. Remove plug.
5. Install special tool 303-507 and turn the crankshaft
pulley bolt to position the No. 1 cylinder at top dead
center (TDC).
6. Remove 2 bolts and CKP sensor.
7. Install an M6 bolt in the position shown.
CMP Sensor
CKP Sensor
