7. If necessary, remove the bolts and the camshaft
sprockets.
NOTE: Use the flats on the camshaft to prevent
camshaft rotation.

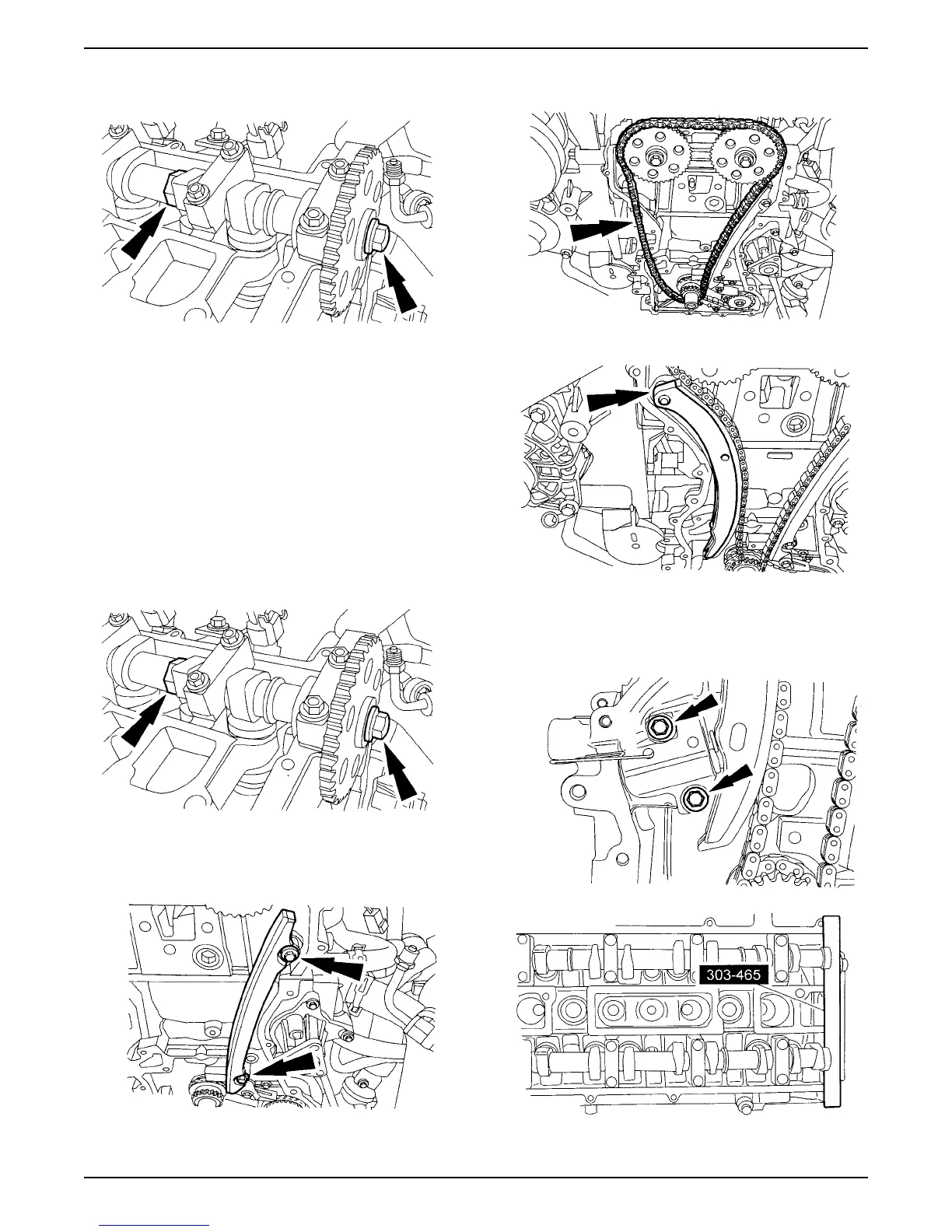

Timing Drive Components - Installation
CAUTION: Do not rotate the camshafts. Damage to
the valves and pistons can occur.
CAUTION: Do not rely on the Camshaft Alignment
Plate to prevent camshaft rotation. Damage to the
tool or the camshaft can occur.
NOTE: If the camshaft sprockets were not removed,
use the flats on the camshafts to prevent camshaft
rotation and loosen the sprocket bolts.
1. If removed, install the camshaft sprockets and the
bolts finger tight.
2. Install the left timing chain guide and 2 bolts:
• Tighten to 10 Nm (89 lb-in).
3. Install the timing chain.
4. Install the right timing chain guide.
5. Position the timing chain tensioner and install the 2
bolts:
• Tighten to 10 Nm (89 lb-in).
• Remove the paper clip to release the piston.
6. Install special tool 303-465.
