DSG-423 CHARGING SYSTEM
06-13

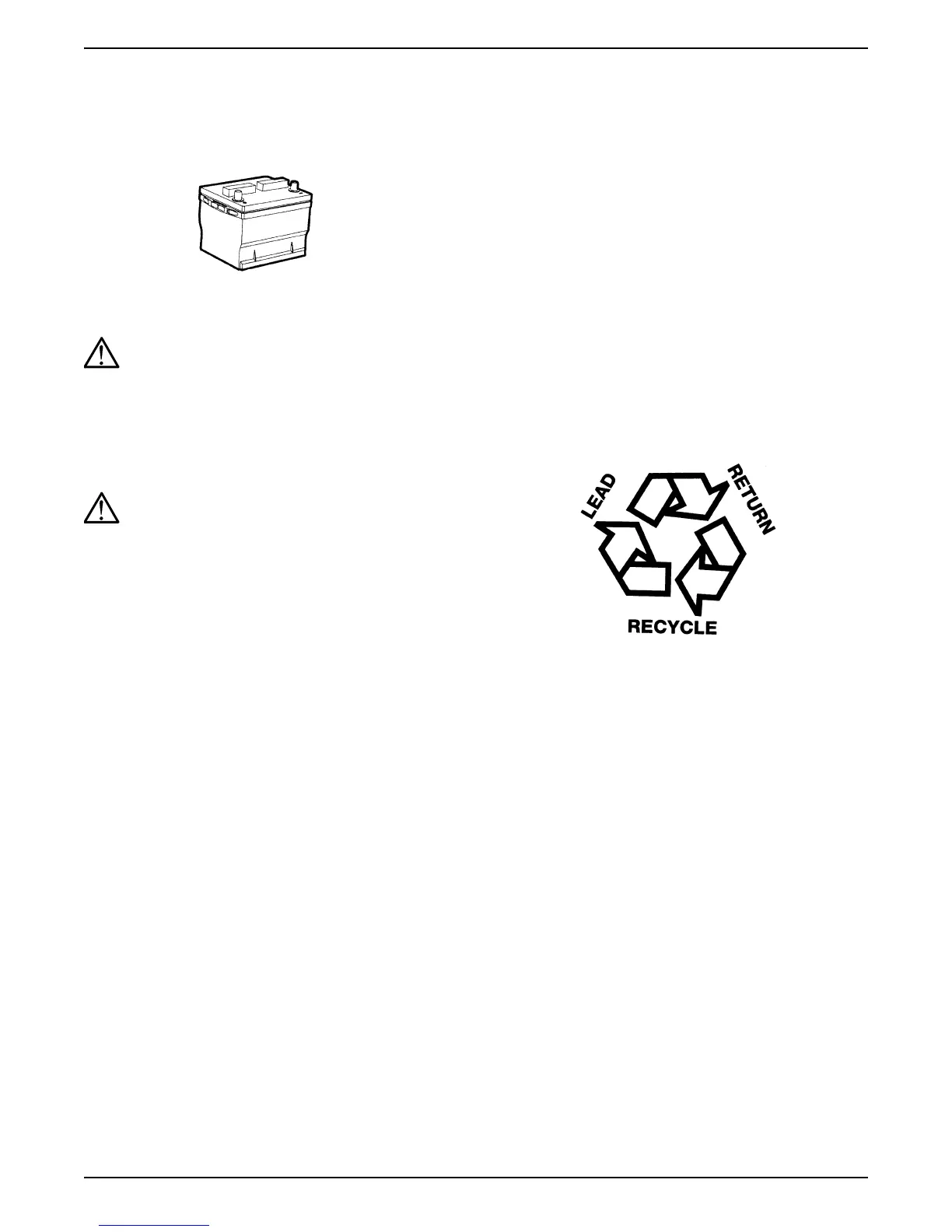

Battery - Removal
WARNING: WHEN LIFTING PLASTIC CASED
BATTERY, EXCESSIVE PRESSURE ON THE END
WALLS COULD CAUSE ACID TO SPEW THROUGH
THE VENT CAPS, RESULTING IN PERSONAL
INJURY, DAMAGE TO THE EQUIPMENT OR
BATTERY. LIFT WITH A BATTERY CARRIER OR
WITH YOUR HANDS ON OPPOSITE CORNERS.
WARNING: KEEP OUT OF REACH OF CHILDREN.
BATTERIES CONTAIN SULFURIC ACID. AVOID
CONTACT WITH SKIN, EYES, OR CLOTHING.
ALSO, SHIELD YOUR EYES WHEN WORKING
NEAR THE BATTERY TO PROTECT AGAINST
POSSIBLE SPLASHING OF THE ACID SOLUTION.
IN CASE OF ACID CONTACT WITH SKIN OR EYES,
FLUSH IMMEDIATELY WITH WATER FOR A
MINIMUM OF 15 MINUTES AND GET PROMPT
MEDICAL ATTENTION. IF ACID IS SWALLOWED,
DRINK LARGE QUANTITIES OF MILK OR WATER,
FOLLOWED BY MILK OF MAGNESIA, A BEATEN
EGG, OR VEGETABLE OIL. CALL A PHYSICIAN
IMMEDIATELY.
CAUTION: Care should be taken when removing or
replacing the cable clamp bolts so that the battery
terminal is not subjected to any excessive lateral or
twisting forces. Such forces could cause major
damage to the internal components of the battery,
and leakage at the terminals.
1. Remove battery cables from battery terminals
(battery ground cable first).
2. Remove battery hold down components.
CAUTION: When lifting a plastic-cased battery, ex-
cessive pressure on the end walls could cause acid
to spew through the vent caps, resulting in personal
injury, damage to the equipment or battery. Lift with
a battery carrier or with your hands on opposite cor-
ners.
3. Remove battery from equipment.
Battery - Installation
1. Clean cable terminals and battery hold down clamp
with a wire brush. Replace all cables or parts that are
worn or frayed.
2. Clean battery tray with a wire brush and scraper.
3. Place battery in battery tray with positive and
negative cables in same position as when removed.
4. Assemble and tighten battery hold down clamp so
battery is secure. Do not tighten excessively.
5. Secure cables to proper terminals. Tighten to 6 Nm
(53 lb-in). Apply petroleum jelly to terminals.
Ford Motor Company strongly recommends that lead-
acid batteries be returned to an authorized recycling
facility for disposal.
