DSG-423 STARTER
07-9
REMOVAL AND INSTALLATION
WARNING: REFER TO CAUTIONS & WARNINGS AT
THE BEGINNING OF THIS SECTION.
Starter Motor - Replacement
WARNING: WHEN SERVICING STARTER OR
PERFORMING OTHER WORK IN THE VICINITY OF
THE STARTER, BE AWARE THAT THE HEAVY
GAUGE BATTERY INPUT LEAD AT THE STARTER
SOLENOID IS “ELECTRICALLY HOT” AT ALL
TIMES.
WARNING: REFER TO CAUTIONS & WARNINGS AT
THE BEGINNING OF THIS SECTION.
1. Disconnect negative battery cable.
2. Remove any component to allow access and
removal of the starter motor.
3. Remove terminal cover and nuts.
4. Remove starter mount bolts.
5. Reverse procedure to install:
• Tighten “B” and “M” nuts to 12 Nm (9 lb-ft)
• Tighten “S” nut to 5 Nm (44 lb-in)
• Tighten mount bolts to 25 Nm (18 lb-ft).

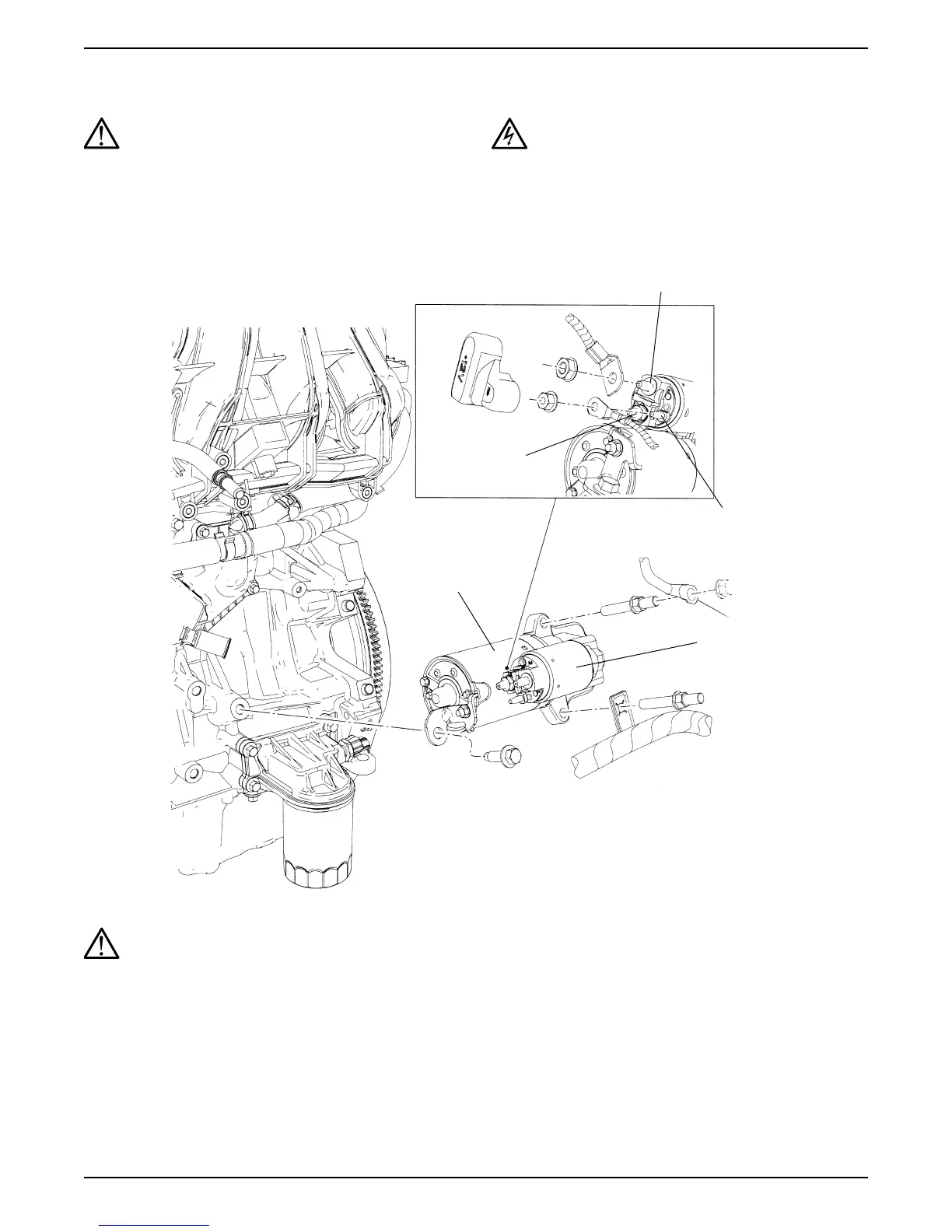

Starter Motor
Solenoid
B+ Terminal
S Terminal
M Terminal
