DSG-423 ENGINE CONTROLS
08-44
Crankshaft Position (CKP) Sensor -
Installation

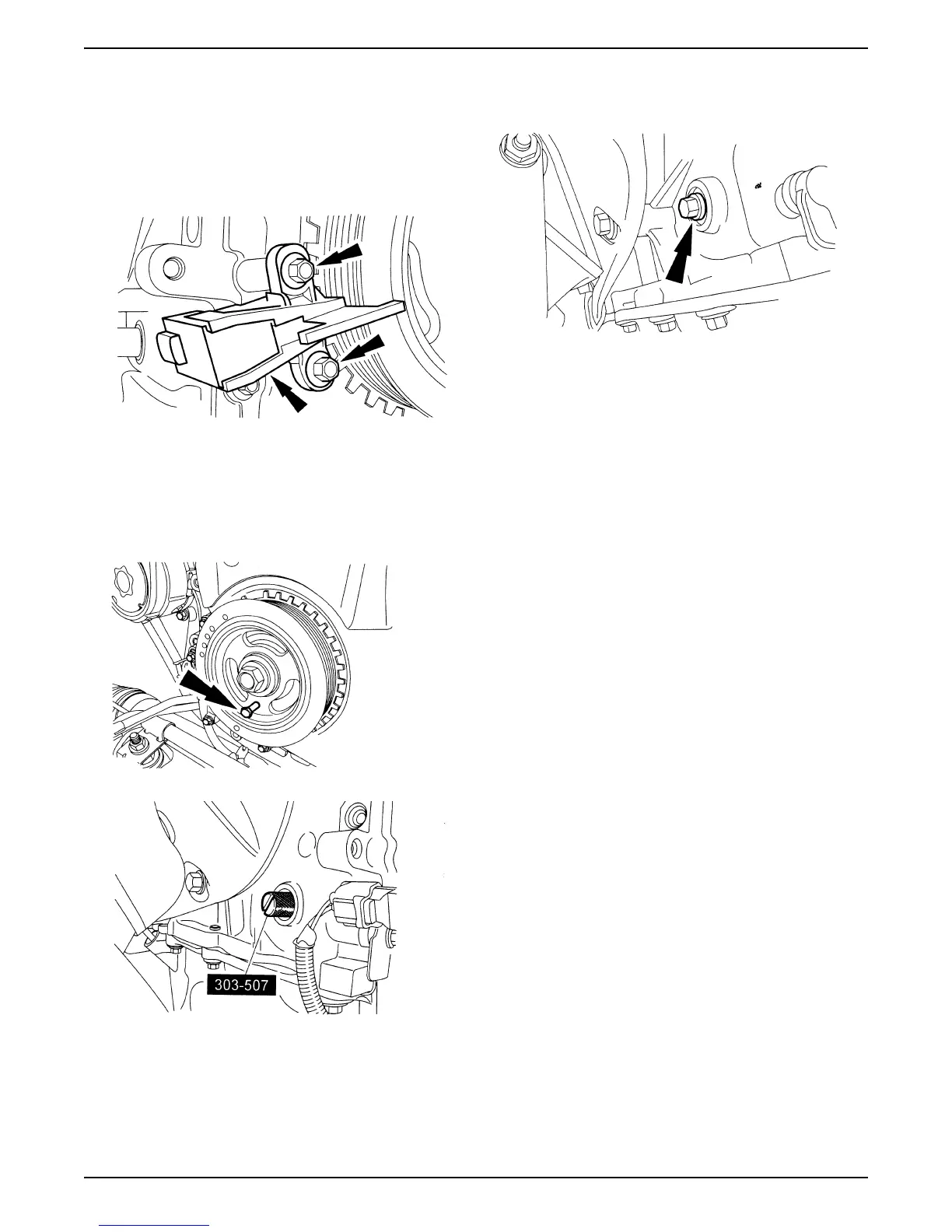

1. Position CKP sensor and loosely install the 2 bolts.
NOTE: The CKP sensor alignment tool is supplied with
the new sensor and is not available separately.
2. Adjust the CKP sensor with the alignment tool and
tighten 2 bolts.
• Tighten to 7 Nm (62 lb-in).
3. Connect CKP sensor electrical connector
4. Remove the M6 bolt.
5. Remove special tool 303-507.
6. Install the plug:
• Tighten to 10 Nm (89 lb-in)
7. Reconnect or install any other component that was
removed.
8. Reconnect battery cable -- refer to section 6.
