DSG-423 ENGINE

02-33

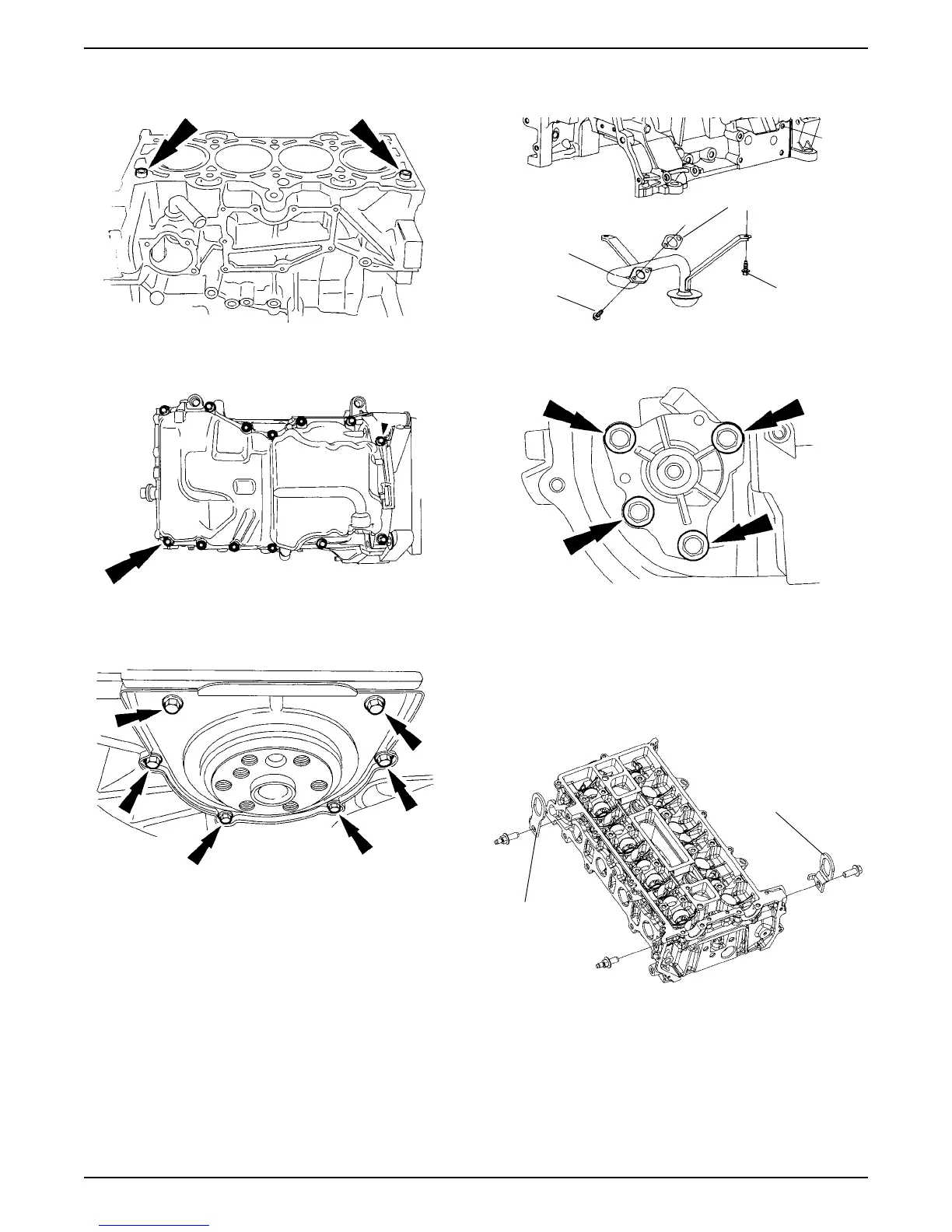

44.Remove the cylinder head alignment dowels.

45.Remove bolts and oil pan.

46.Remove bolts and rear seal retainer plate.

47.Remove bolts, oil pump pickup tube and discard

gasket.

48.Remove 4 bolts and oil pump.

49.Remove and discard oil pump gasket.

Cylinder Head Disassembly

1. Remove rear lifting eye and front bracket.

Pickup

Tube

Gasket

Bolt

Rear

Lifting Eye

Front

Lifting Eye
