DSG-423 FUEL SYSTEM
04-36

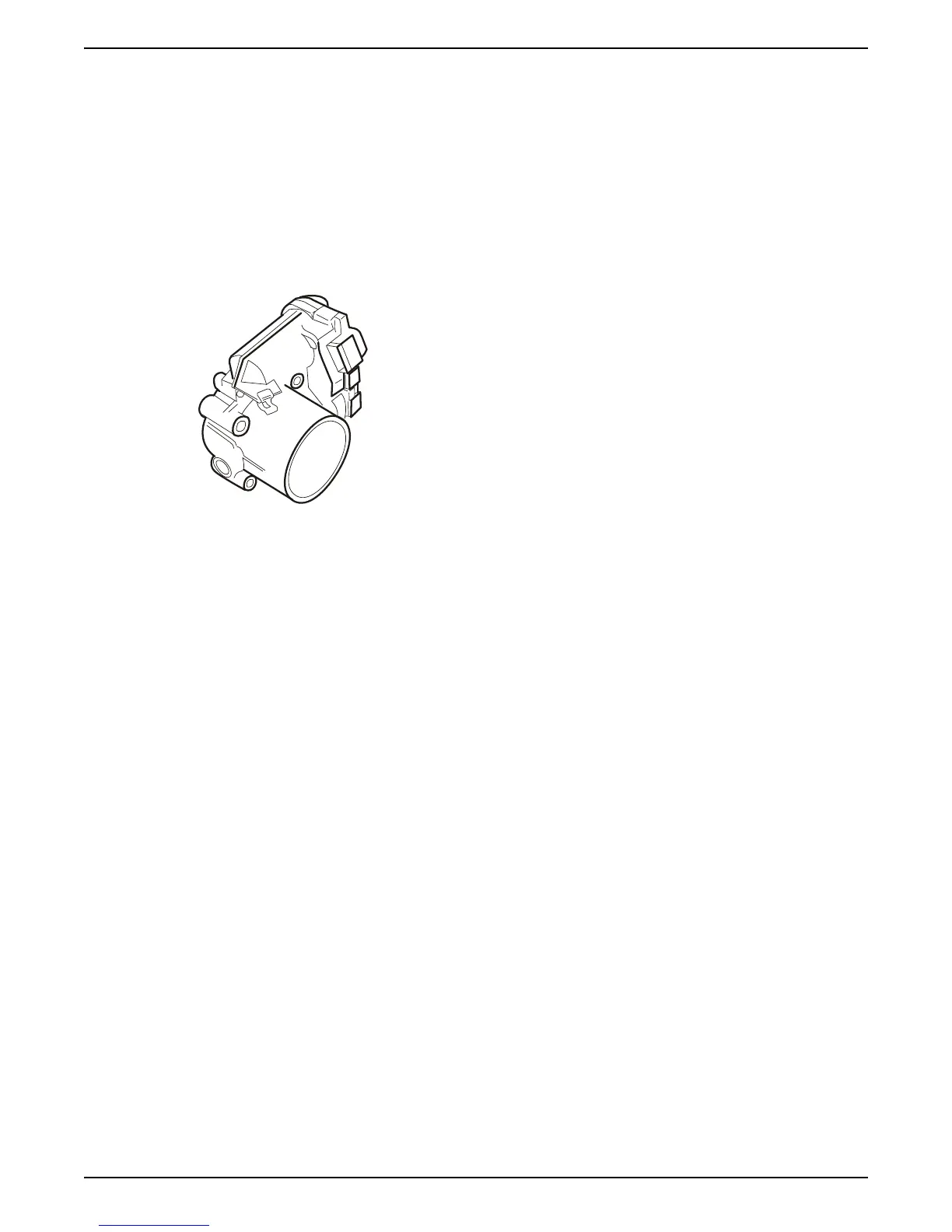

Actuator - Removal
1. Remove and/or disconnect components to allow
access and removal of the actuator. Label if
necessary to allow for correct reinstallation.
2. Disconnect air cleaner components from actuator.
3. Disconnect accelerator cable.
4. Disconnect electrical connectors.
5. Remove nuts.
6. Remove actuator and gasket.
Actuator - Installation
1. Inspect gasket and install a new one if necessary.
2. Position actuator onto studs.
3. Install nuts:
• Tighten to ????
4. Reconnect electrical connectors.
5. Reconnect accelerator cable.
6. Reconnect air cleaner components to actuator.
7. Install or connect any other component removed or
disconnected.
