DSG-423 IGNITION SYSTEM
03-6
REMOVAL AND INSTALLATION

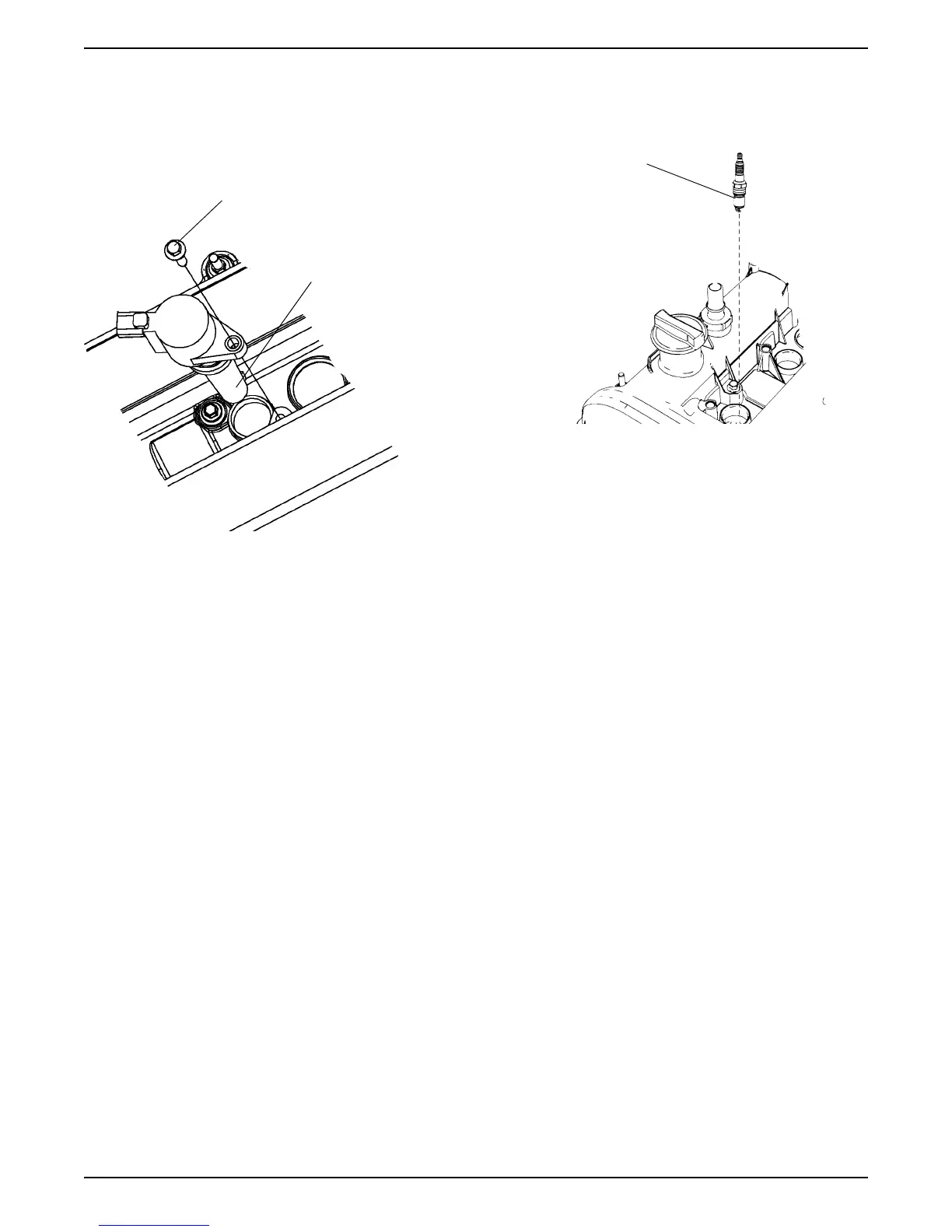

Ignition Coil - Replacement
1. Remove and/or disconnect components to allow
access and removal of the ignition coil. Label if
necessary to allow for correct reinstallation.
2. Disconnect electrical connector.
3. Remove bolt.
4. Remove ignition coil.
5. Reverse procedure to install:
• Inspect for cracks, carbon tracking or dirt
• Apply silicone dielectric compound to the inside
of coil.
Spark Plug - Removal
1. Remove ignition coil -- Refer to“Ignition Coil -
Replacement” on page 6 of this section.
2. Loosen spark plugs and remove any dirt or foreign
material from spark plug areas of cylinder head with
compressed air.
3. Remove spark plugs and mark location using a
piece of masking tape.
4. Inspect condition of spark plug -- Refer to“Spark
Plug Inspection” on page 7 of this section.
Spark Plug - Installation
1. Apply a few drops of engine oil to spark plug threads
near tip.
2. Adjust spark plug gap to: 1.25 - 1.35 mm (0.049 -
0.053 in.).
3. Install spark plugs (to original locations) and tighten
to 11 lb.ft. (15 Nm).
4. Install coil -- Refer to“Ignition Coil - Replacement” on
page 6 of this section.
To Next Page
