DSG-423 ENGINE
02-7
9. Remove bolts and camshaft cover.
10.Remove and discard gaskets.
CAUTION: Do not use metal scrapers, wire brushes,
power abrasive discs or other abrasive means to
clean the sealing surfaces. These tools cause
scratches and gouges which make leak paths. Use
a plastic scraping tool to remove all traces of old
sealant.
11.Clean the sealing surface of the cylinder head with
silicone gasket remover and metal surface prep.
WARNING: OBSERVE ALL WARNINGS AND
CAUTIONS AND FOLLOW ALL APPLICATION
DIRECTIONS CONTAINED ON THE PACKAGING OF
THE SILICONE GASKET REMOVER AND METAL
SURFACE PREP.
Camshaft Cover - Installation
1. Install new gaskets.
2. Position camshaft cover and install bolts in
sequence shown.
• Tighten to 10 Nm (89 lb-in).
3. Reconnect crankcase ventilation tube.
NOTE: Apply clean engine oil to CMP sensor o-ring
seal prior to installation.
4. Install CMP sensor and bolt.
• Tighten to 7 Nm (62 lb-in).
5. Reconnect CMP sensor, ignition coil and CHT
Sensor connectors.
6. Reinstall or connect any other components that were
removed or disconnected
7. Install intake manifold -- Refer to“Intake Manifold -
Installation” on page 6 of this section.
8. Reconnect negative battery cable -- refer to Section
6.

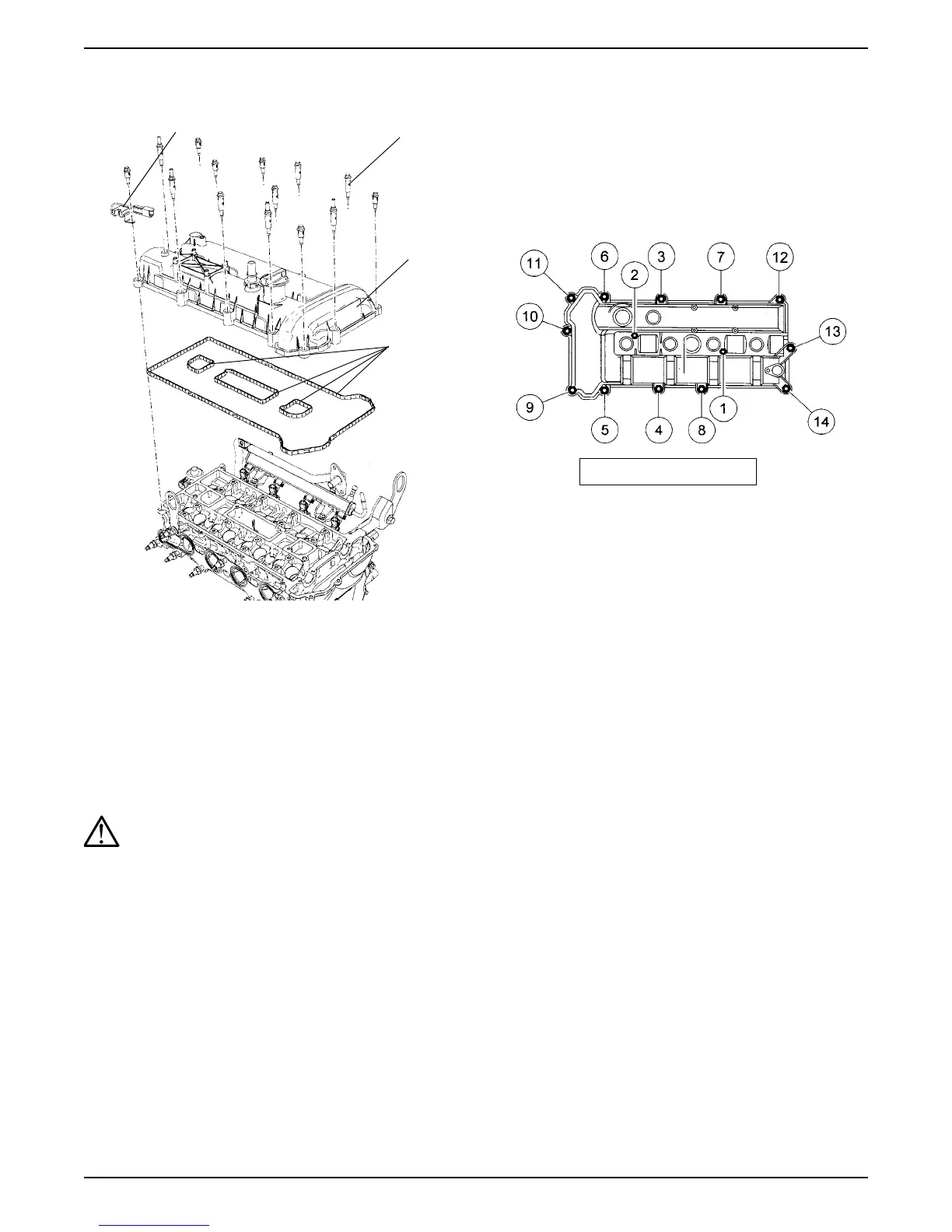

Cover
