Oil Pan - Installation
NOTE: If not secured within 4 minutes, the sealant must
be removed and the sealing area recleaned as before.
Refer to previous CAUTION & WARNING.

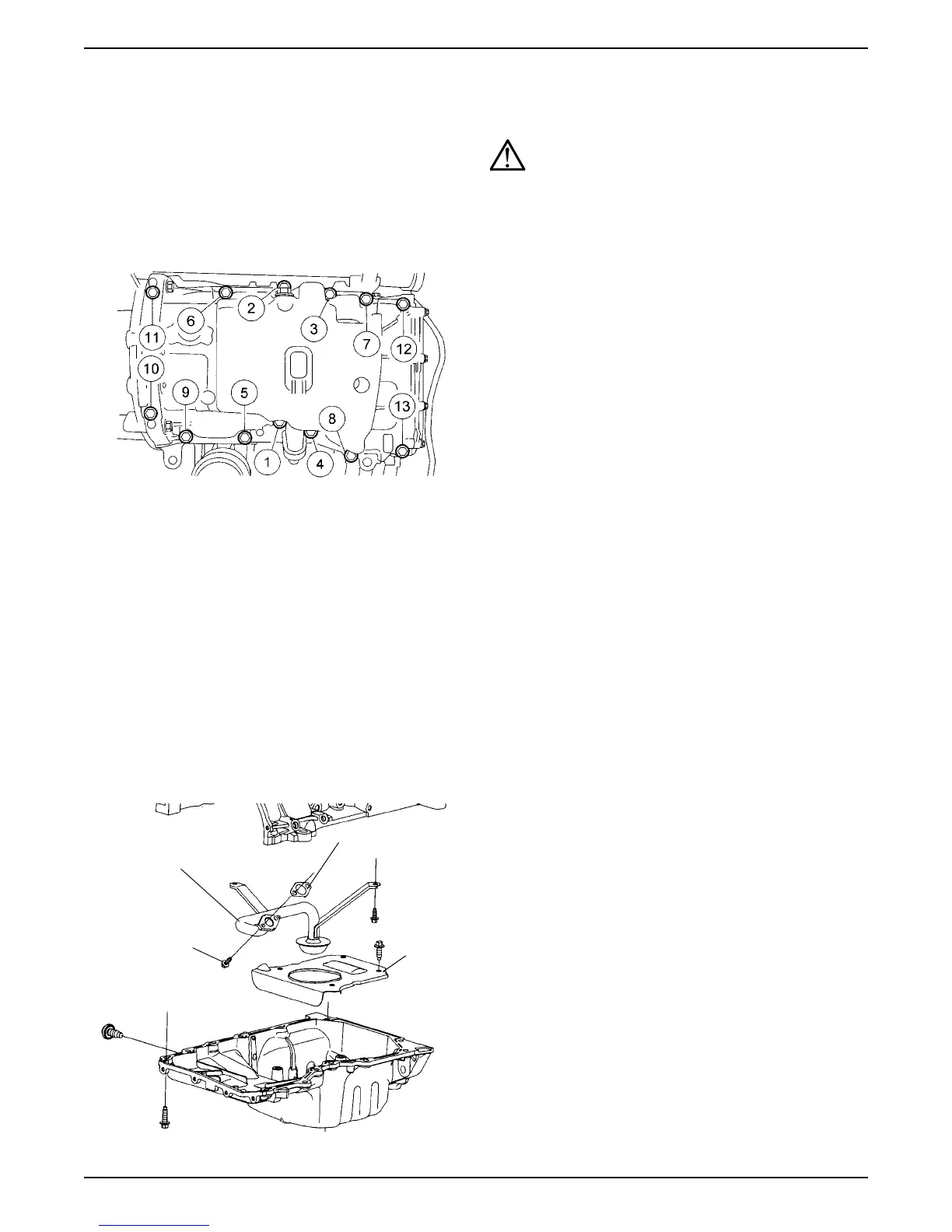

1. Apply a 2.5 mm (0.1 in) bead of silicone gasket and
sealant to the oil pan. Install the oil pan and bolts in
sequence shown:
• Tighten to 25 Nm (18 lb-ft).
2. Install oil level indicator and tube -- Refer to“Oil Level
Indicator & Tube - Replacement” on page 24 of this
section.
3. Install drain plug:
• Tighten to 28 Nm (21 lb-ft).
4. Fill engine with clean engine oil.
5. Install or reconnect any other component that was
removed or disconnected.
Oil Pickup Tube - Replacement
1. Remove the oil pan -- Refer to“Oil Pan - Removal” on
page 24 of this section.
2. Remove bolts and oil pickup tube.
3. Remove gasket and discard.
4. Clean the sealing surface with metal surface prep.
WARNING: OBSERVE ALL WARNINGS AND
CAUTIONS AND FOLLOW ALL APPLICATION
DIRECTIONS CONTAINED ON THE PACKAGING OF
THE SILICONE GASKET REMOVER AND METAL
SURFACE PREP.
5. Reverse procedure to install:
• Use a new gasket
• Tighten bolts to 10 Nm (89 lb-in).
Pickup Tube
Gasket
Bolt
Baffle
