DSG-423 COOLING SYSTEM
05-14

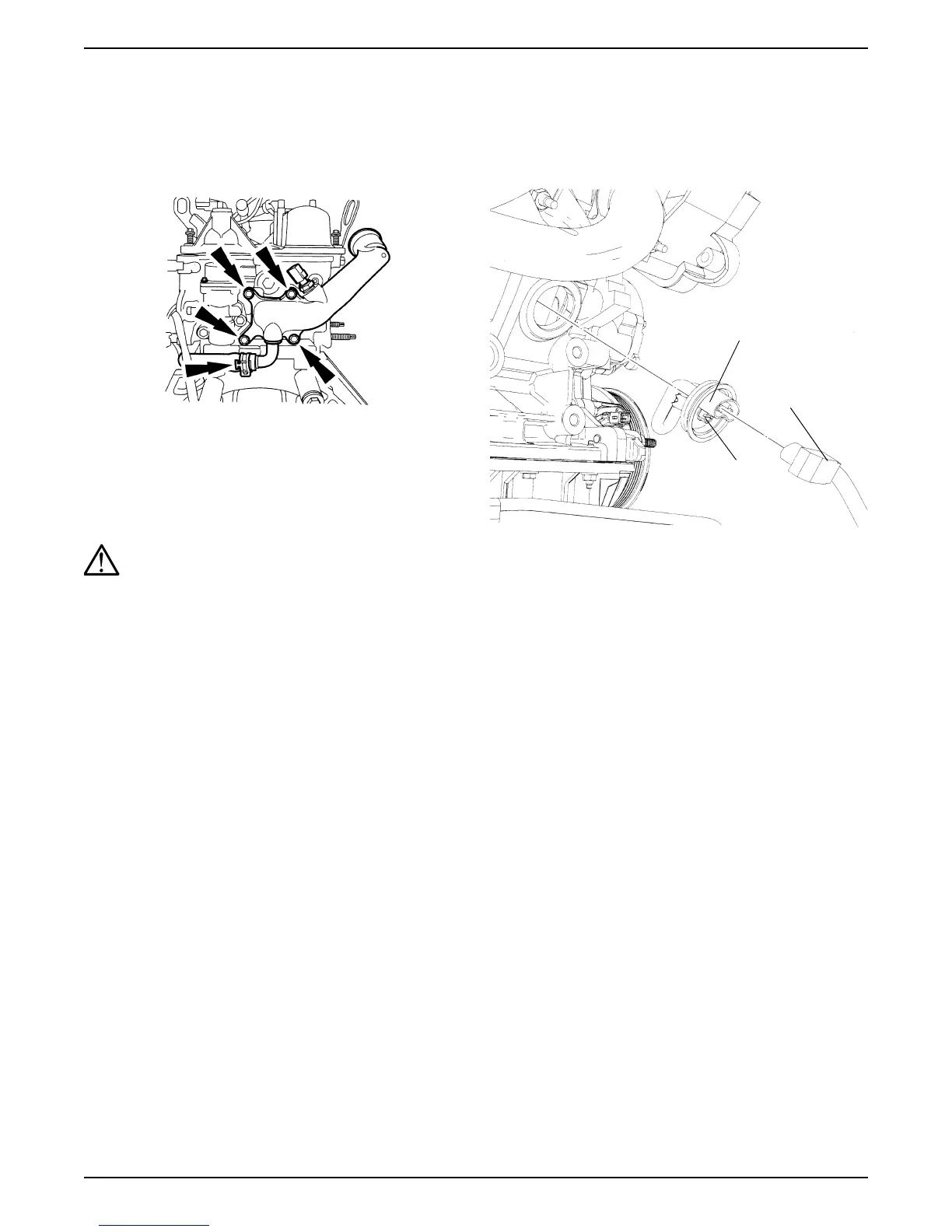

Outlet Pipe - Replacement
WARNING: REFER TO CAUTIONS AND WARNINGS
AT THE BEGINNING OF THIS SECTION.
1. Drain the cooling system -- Refer to“Draining the
Cooling System” on page 9 of this section.
2. Remove or disconnect components as necessary to
gain access to the outlet pipe.
3. Disconnect hoses from outlet pipe.
4. Disconnect electrical connector at ECT Sensor.
5. Remove bolts and outlet pipe.
6. Reverse procedure to install:
• Clean gasket mating surfaces
• Install new gasket
• Tighten bolts to 10 Nm (89 lb-in).
Block Heater - Replacement
1. Drain the cooling system -- Refer to“Draining the
Cooling System” on page 9 of this section.
2. Disconnect the block heater electrical connector.
NOTE: Do not loosen the screw more than necessary
for removal.
3. Loosen the block heater screw and twist and slide
the block heater to release the retainer clip. Discard
the retainer clip and remove the block heater.
4. Reverse procedure to install.
Block
Heater
Electrical
Connector
Screw
