DSG-423 ENGINE CONTROLS

08-27

Interface Hook-up

For connection to a laptop, use kit PN 2U1L 6K947-AA.

Connect serial cable to RS232 port on the back of the

laptop computer. Connect interface cable to serial

cable. Connect interface cable to the 4 pin diagnostic

connector on the engine harness.

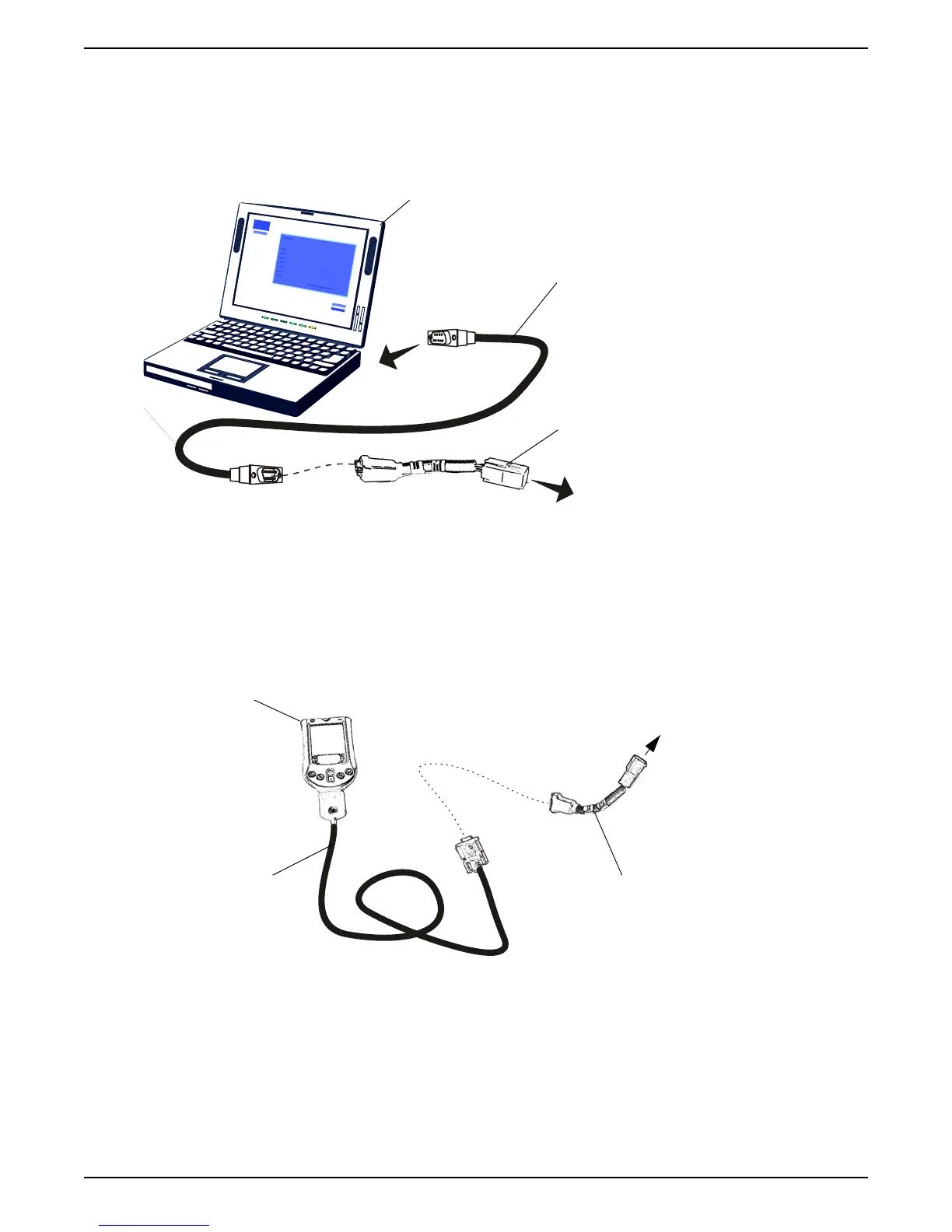

For connection to a PDA, use kit PN 2U1E-6K947-AA. Connect as shown below:

Laptop Computer

Serial Communication Cable

Interface Cable

To Diagnostic Connector

PDA

HotSync Cable

To Diagnostic Connector

Interface Cable
