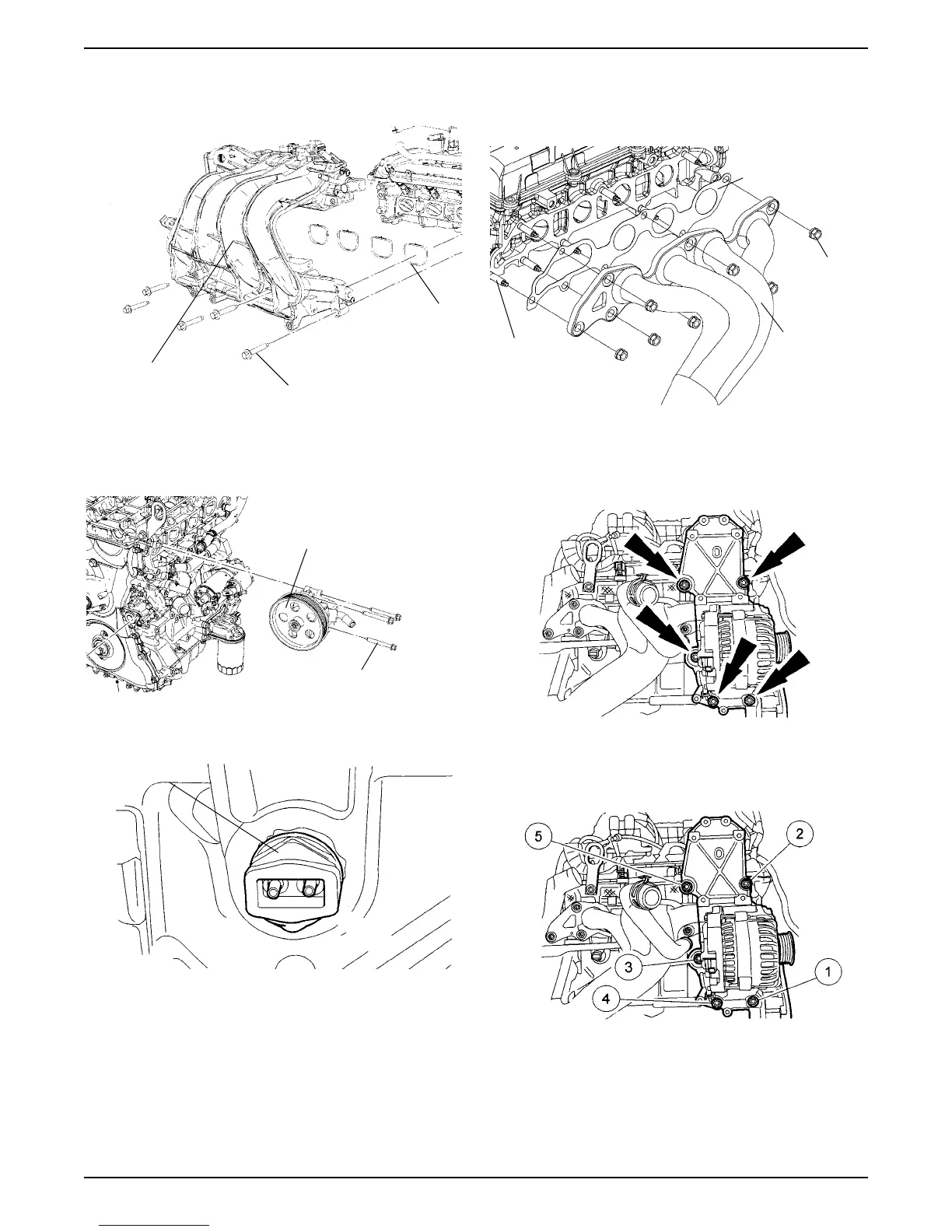

56.Install intake manifold and bolts:
• Tighten to 18 Nm (13 lb-ft).
57.Install power steering pump and bolts:
• Tighten to 25 Nm (18 lb-ft).
58.Install block heater (if equipped).
59.Install 7 new exhaust manifold studs:
• Tighten to 17 Nm (13 lb-ft).
60.Position a new gasket and install exhaust manifold
and 7 new nuts:
• Tighten to 54 Nm (40 lb-ft).
61.Install generator and support bracket.
62.Tighten bolts in the sequence shown in 2 stages:
• Stage 1: Tighten finger tight
• Stage 2: Tighten to 47 Nm (935 lb-ft).
63.Install A/C compressor (if equipped) and bolts:
• Tighten to 25 Nm (18 lb-ft).
Intake
Manifold
Bolt
Gasket
Power Steering
Pump
Bolt
Block
Heater
Exhaust
Manifold
Gasket
Nut
Stud
