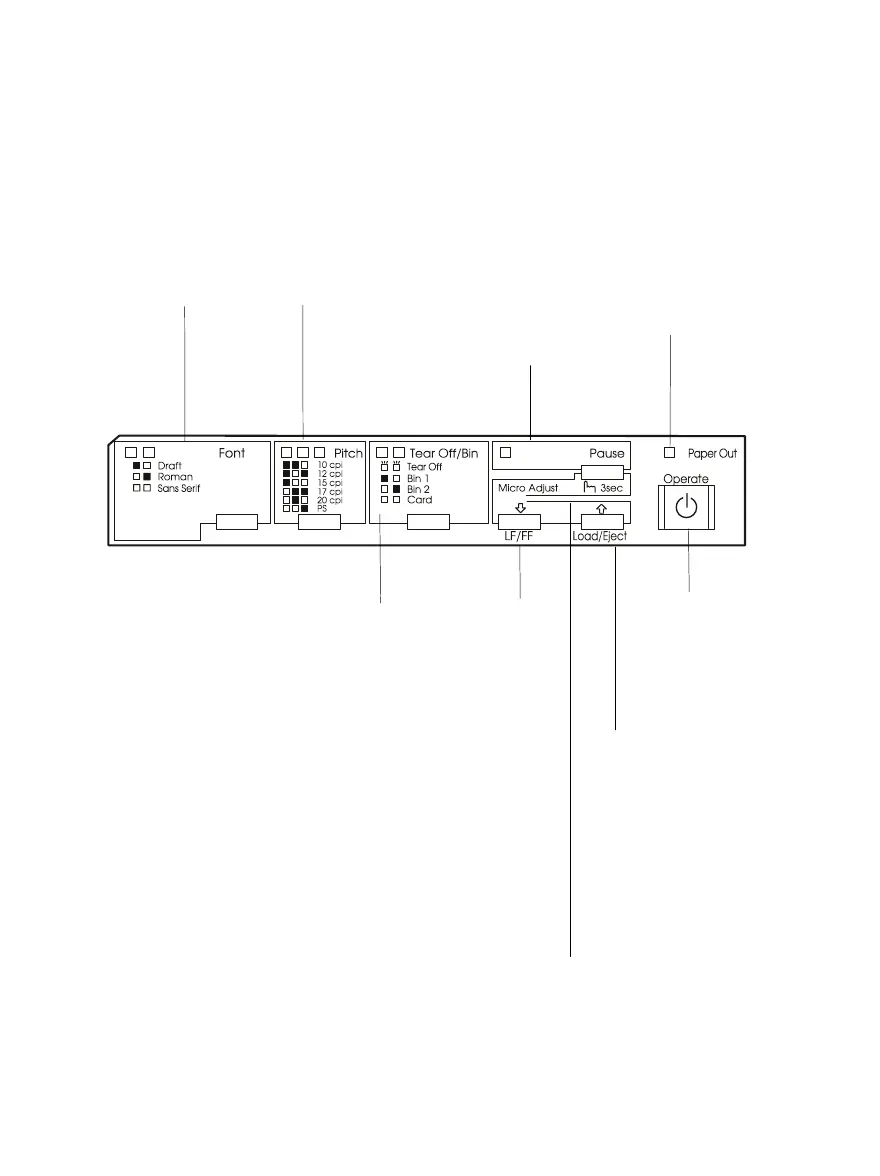

Control Panel Buttons and Lights
n = On
f = Flashing
o = Off
Tear Off/Bin button
•
Advances continuous paper to the
tear-off position.
•
Feeds continuous paper backward from
the tear-off position to the top-of-form
position.
•
Selects a cut-sheet feeder bin when the
cut-sheet feeder is installed.
•
Enters the card mode to print on
postcards and envelopes. See Chapter 3.
Tear Off/Bin lights
•
f f
when continuous paper is in the
tear-off position.
•
o n
when bin 1 of the optional cut-sheet
feeder is selected.
•
n o
when bin 2 of the optional cut-sheet
feeder is selected.
•
n n
when the printer is in the card mode.
Font button
Selects the font.
See Chapter 5.
Font lights
Indicate which
font is selected.
Micro Adjust
When holding down the Pause button for three
seconds, the printer enters the micro adjust mode.
Using the micro adjust feature, you can press the
D
and
U buttons to adjust the top-of-form or tear-off
position. See Chapter 2.
Paper Out light
• On when no paper is
loaded in the selected
paper source or paper
is not loaded correctly.
• Flashes when paper
has not been fully
ejected or a paper
jam has occurred.
Operate button
Turns the printer on
and off. The printer
is off when the top
of this button is
even with the
button protectors.
Pause button
Stops printing
temporarily, and
resumes printing when
pressed again.
Pause light
• On when the printer
is paused.
• Flashes when the
printer is in the micro
adjust mode.
Load/Eject button
• Loads a single sheet of
paper.
•
Ejects a single sheet of
paper if a sheet is
loaded.
•
Loads continuous paper
from the standby
position.
•
Feeds continuous paper
backward to the
standby position.
LF/FF button
• Feeds paper line by
line.
• Ejects a single sheet
or advances
continuous paper
to the next
top-of-form position
when held down.
Pitch button
Selects the font
size. See Chapter 5.
Pitch lights
Indicate what font
size is selected.
