Installing the tractor in the pull position
To install a tractor in the pull position you must either remove
the front push tractor or purchase the optional pull tractor
(C80032@ ). To remove the front push tractor, see “Removing
the front push tractor” on page 2-16.
Note:
The tractor in the rear push position cannot be removed.
To install a tractor in the pull position, follow these steps:
1. Make sure the printer is turned off. Lift the printer cover up and
off the printer.

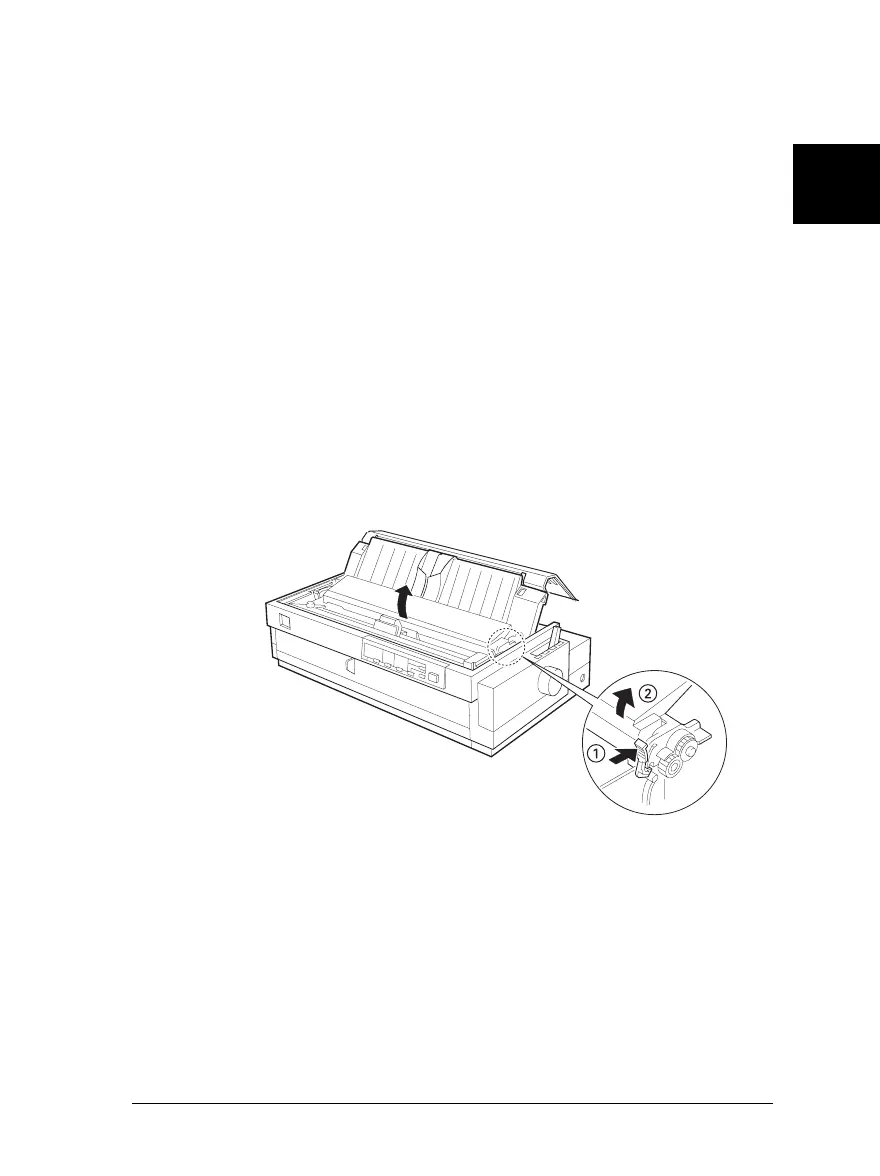

2. Push up the tabs on each side of the paper tension unit and
lift the unit up and off the printer. Store the paper tension
unit in a safe place.
2-18NN
2
R
Sun-G+ Rev.C
A5 size Chapter 2
97/11/17 pass 3
Printing on Continuous Paper 2-23
