Epson L1800 Service Manual

L1800 Revision A

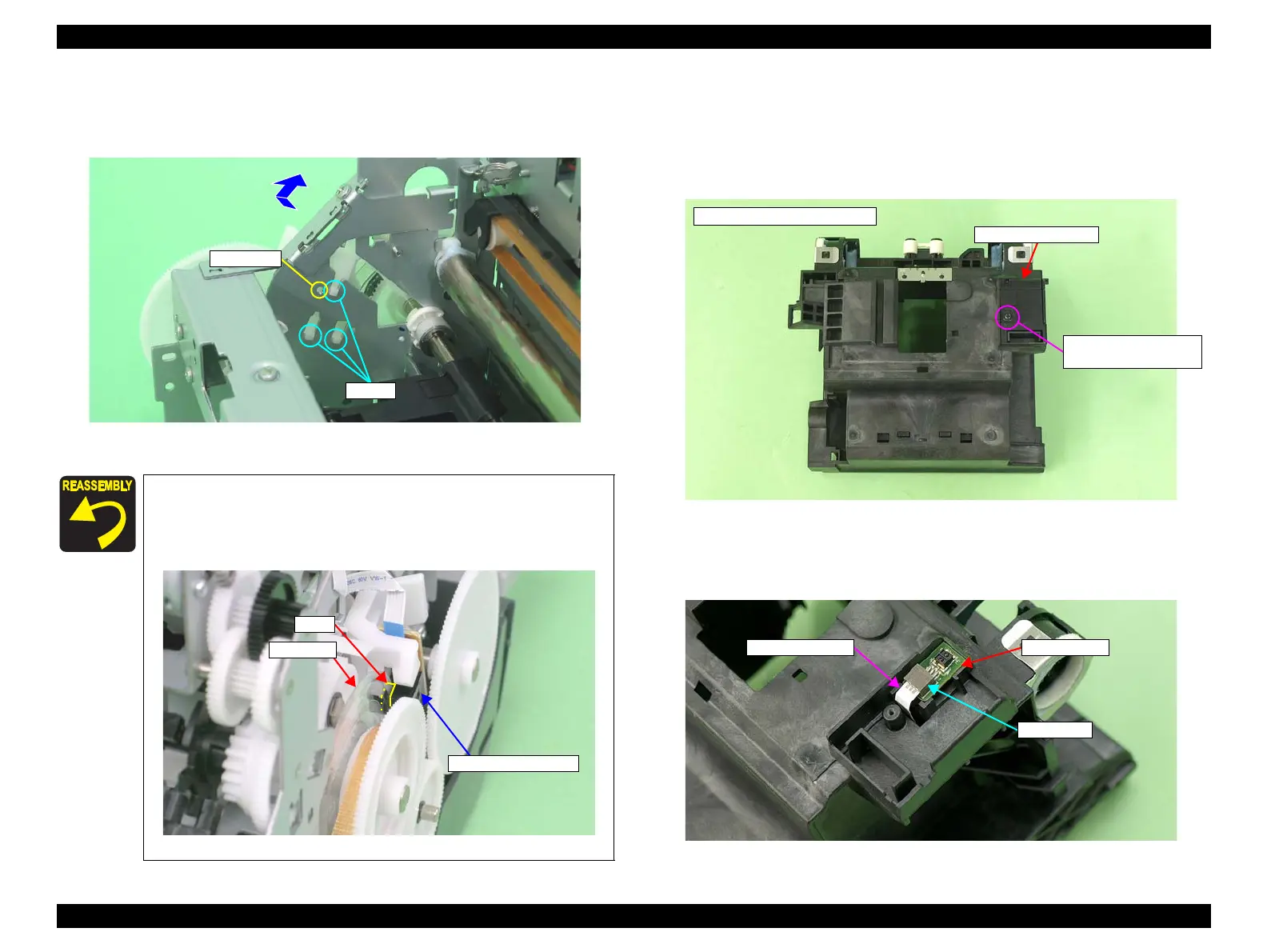

Disassembly And Assembly Removing the Sensors 98
Confidential
4. While pressing the guide pin on the PF Encoder Sensor Holder using tweezers,
slide the holder upwards to release the three tabs, and remove the PF Encoder
Sensor Holder.
Figure 3-151. Removing the PF Encoder Sensor Holder
3.6.3 PW Sensor
1. Remove the Carriage Shaft / Carriage Unit. (p.63)
2. Remove the C.P.B. (P1) M1.7 x 5 screw that secures the PW Sensor Holder, and
remove the PW Sensor Holder from the Carriage Unit.
Figure 3-153. Removing the PW Sensor Holder
3. Disconnect the PW Sensor FFC from the PW Sensor connector, and remove the
PW Sensor.
Figure 3-154. Removing the PW Sensor
 Make sure that the PF Scale is in the slit on the PF Encoder
Sensor.
 Make sure that the PF Encoder Sensor is not in contact with the
PF Scale.
Figure 3-152. Reinstalling the PF Encoder Sensor Holder
Guide pin
Tabs
PF Encoder Sensor
PF Scale
Slit
PW Sensor Holder
12) C.P.B. (P1) M1.7x5
(0.8±0.2 kgf.cm)
Carriage Unit Bottom Side
PW Sensor
Connector
PW Sensor FFC
