Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Overview 41
Confidential
 Points to be checked before packing the printer
3.1.6 Locking/Releasing the Carriage
Locking and releasing the Carriage is shown below.
1. Remove the Decoration Plate Right. (Refer to 3.2.6 Decoration Plate Left/Right
(p.49).)
2. Insert a phillips screwdriver into the hole on the right side of the frame, and rotate
the white shaft of the Ink System Unit.

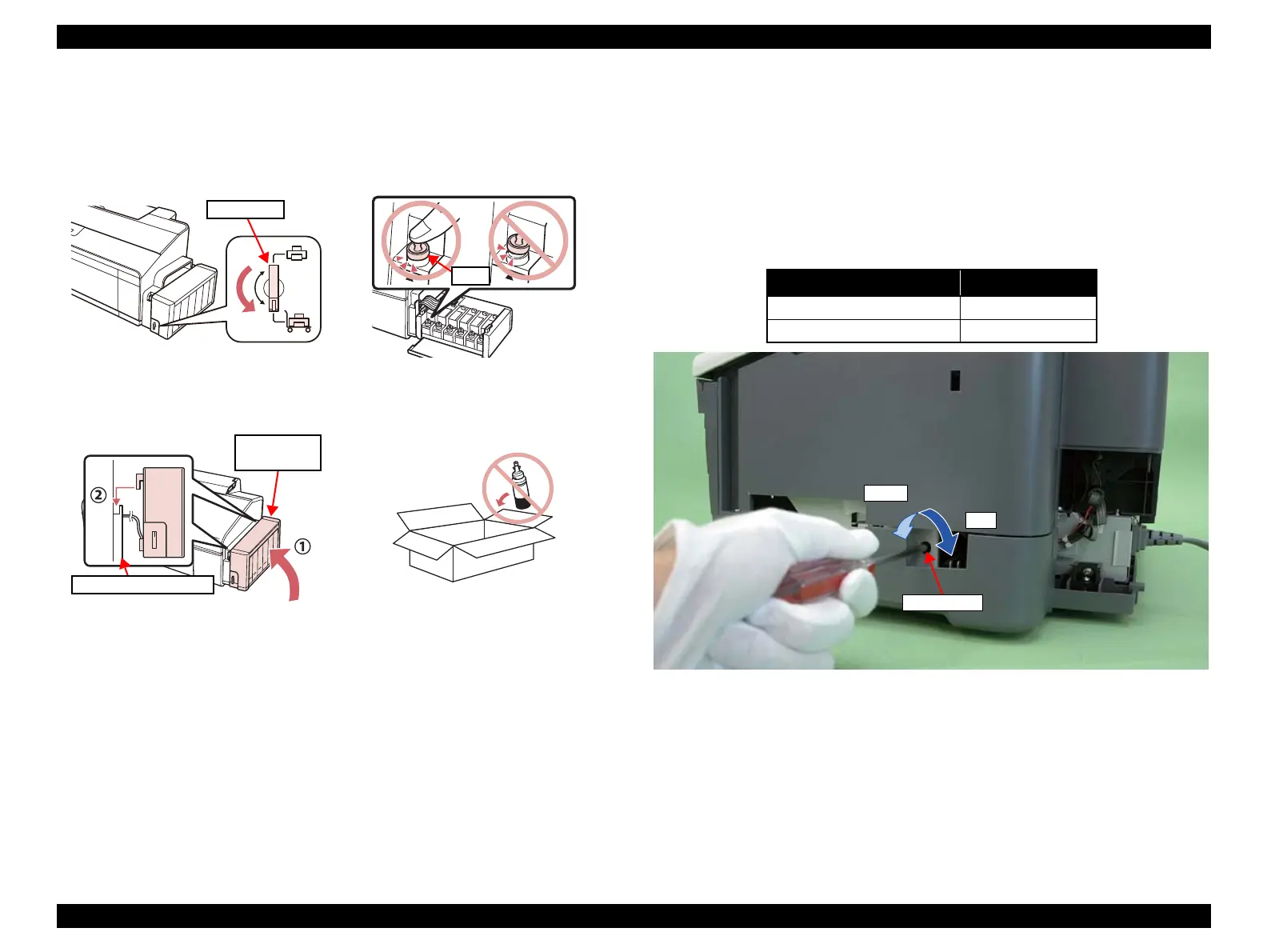

Figure 3-8. Release the Carriage Lock
 The Valve Lever is on the position
shown below (the Choke Valve is
closed). (See Figure 3-3.)
 All the caps of the Ink Supply Tank
Assy are securely closed.
 The hooks (x2) of the Ink Supply
Tank Assy are securely engaged
with the Decoration Plate Right.
 The opened ink bottle is not
included in the box.
Valve Lever
Cap
Ink Supply
Tank Assy
Decoration Plate Right
Table 3-3. Carriage Lock/Release
Direction of Rotation Carriage
Clockwise (CW) Locked
Counterclockwise (CCW) Released
White Shaft
CCW
CW
