L1800 Revision A
Disassembly And Assembly Disassembling the CISS section 102
Confidential
3.7.2 Ink Supply Tube Assy section
3.7.2.1 Tube Guide Sheet/Tube Guide Sheet Sub
3.7.2.2 Tube Guide Sheet (w/Tube Guide Sheet sub)

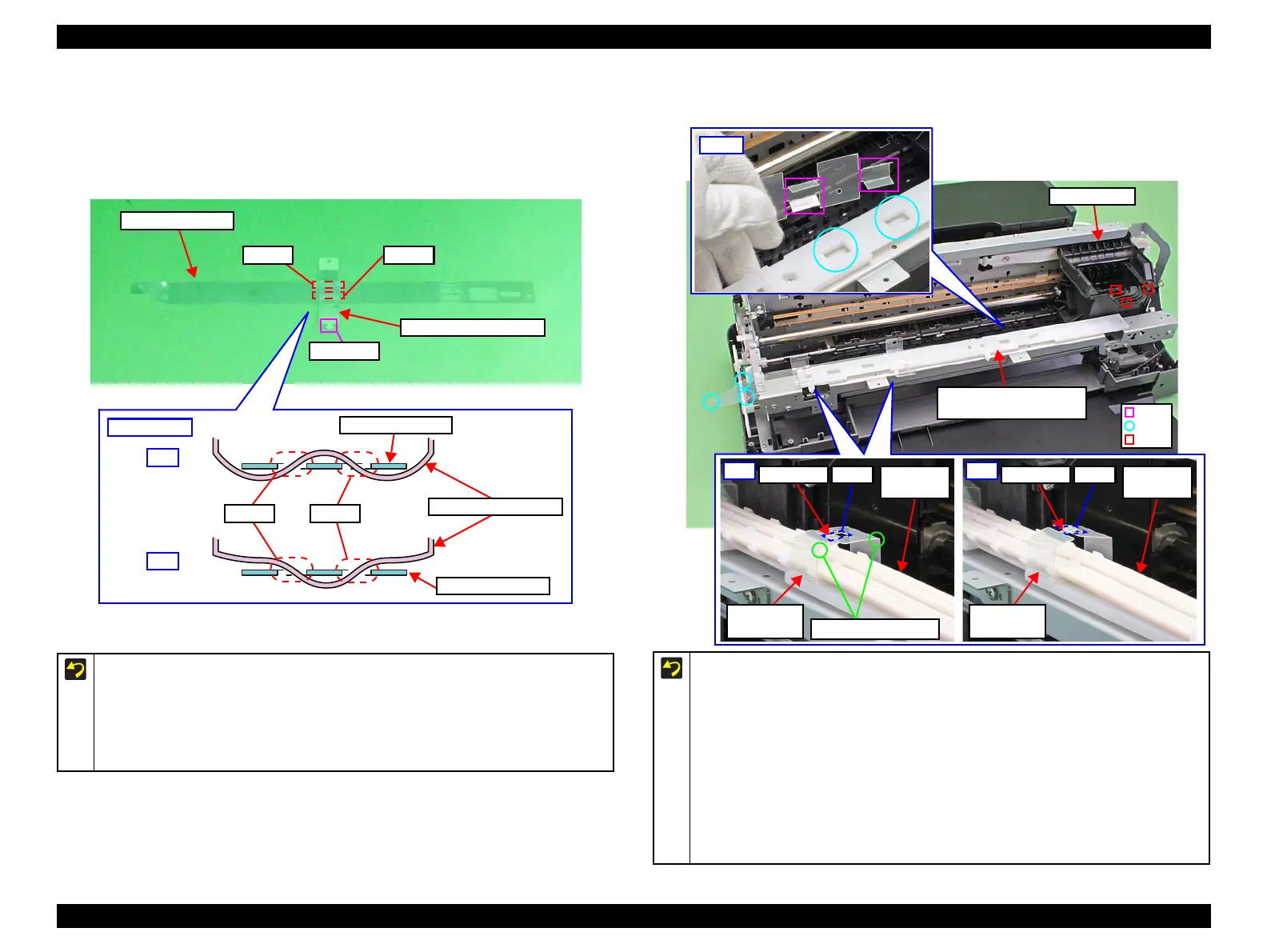

Refer the figure above and follow the procedure below when attaching the Tube Guide
Sheet Sub to the Tube Guide Sheet.
1. Insert the section A of the Tube Guide Sheet Sub into the hole 1 of the Tube Guide
Sheet from the bottom.
2. Insert the section A of the Tube Guide Sheet Sub into the hole 2 of the Tube Guide
Sheet from the top.
Hole 2
Section A
Hole 1
Tube Guide Sheet
Tube Guide Sheet Sub
OK
Cross Section
NG
Hole 2
Tube Guide Sheet Sub
Tube Guide Sheet
Tube Guide Sheet
Hole 1
Follow the procedure below when installing the Tube Guide Sheet (w/Tube Guide Sheet
sub).
1. Insert the tabs (x2) on the Tube Guide Sheet (w/Tube Guide Sheet sub) in the holes
(x2) on the Ink Supply Tube Guide 2nd, then attach the Tube Guide Sheet (w/Tube
Guide Sheet sub) to the printer.
2. Install the Ink Supply Tube Assy. (p.103)
3. Insert the section A of the Tube Guide Sheet Sub (x2) into the hole of the Tube
Guide Sheet Sub from the top to secure it.
4. Engage the holes (x3) on the Tube Guide Sheet (w/Tube Guide Sheet sub) with the
hooks (x3) on the Carriage Unit, and attach the Tube Guide Sheet (w/Tube Guide
Sheet sub) on the Carriage Unit.
OK
Ink Supply
Tube
Section A Hole
Tube Guide
Sheet Sub
Fold at a right angle.
Step 1
Tube Guide Sheet
(w/Tube Guide Sheet sub)
Carriage Unit
Tab
Hole
Hook
NG
Ink Supply
Tube
Section A Hole
Tube Guide
Sheet Sub
