Epson L1800 Service Manual

L1800 Revision A
Adjustment Adjustment Using Adjustment Program 119
Confidential
4.2.3 Bi-D adjustment
The pattern shown below is printed for each of the PG settings.

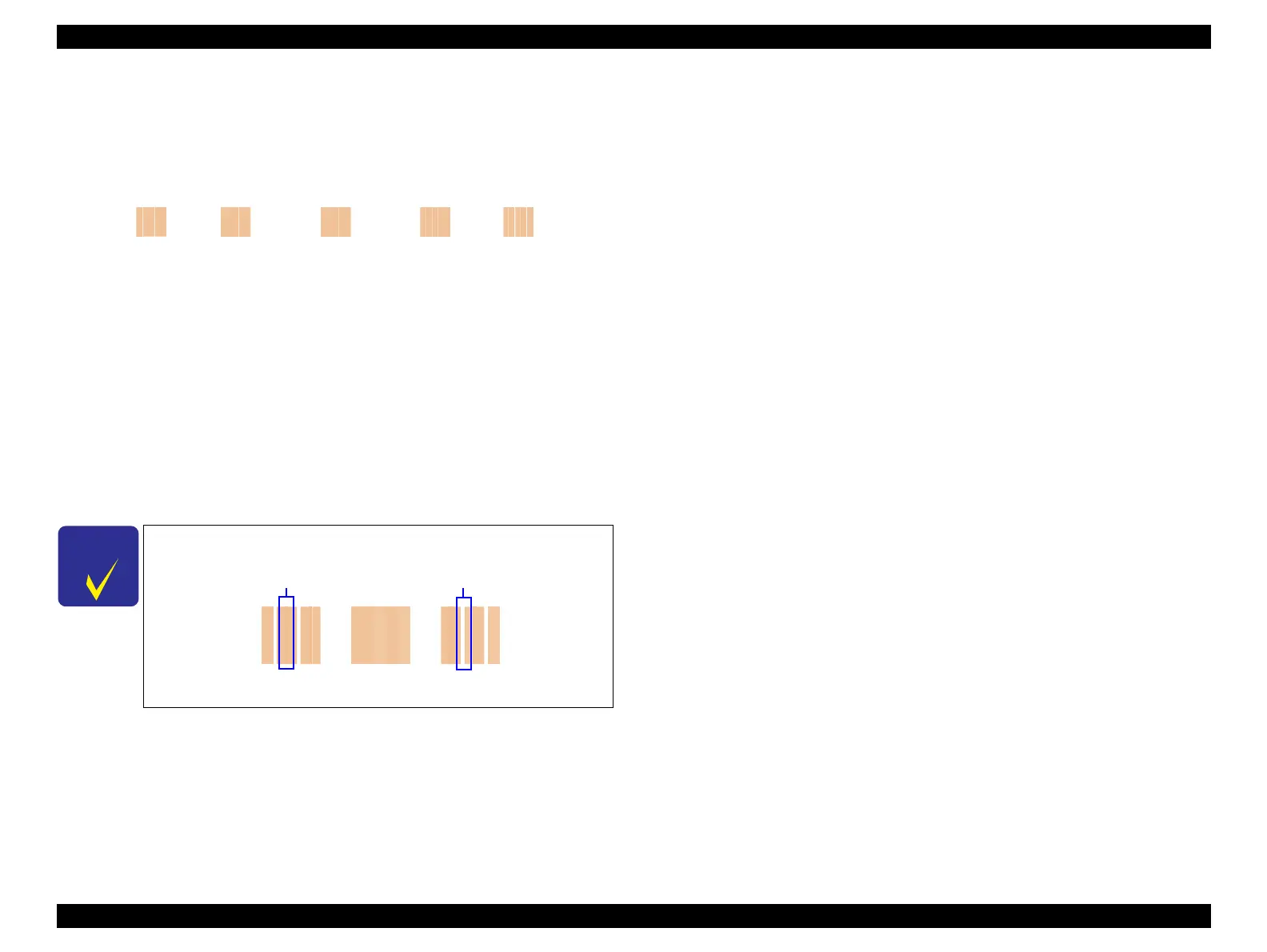

Figure 4-3. Bi-D Adjustment Printout Pattern
How to Judge
Examine the printout patterns for each of the five modes, and enter the value for the
pattern with no gap and overlap for each mode.
Additional information
If no OK pattern is printed, enter the value for the best one, and print the adjustment
pattern again.
C H E C K
P O I N T
Example for judgement
+0 +1 +2 +3 +4
OK NGNG
Overlap
Gap
