L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 58
Confidential
3.4.3 Printhead / Adapter Guide Holder
1. Remove the Upper Housing / Printer Cover. (p.50)
2. Release the Carriage Lock, and move the Carriage Unit to the center.
(Refer to 3.1.6 Locking/Releasing the Carriage (p.41).)
3. Remove the Adapter section. (p.101)
4. Release the dowel and two hooks of the Cable Holder, and remove the Cable
Holder.

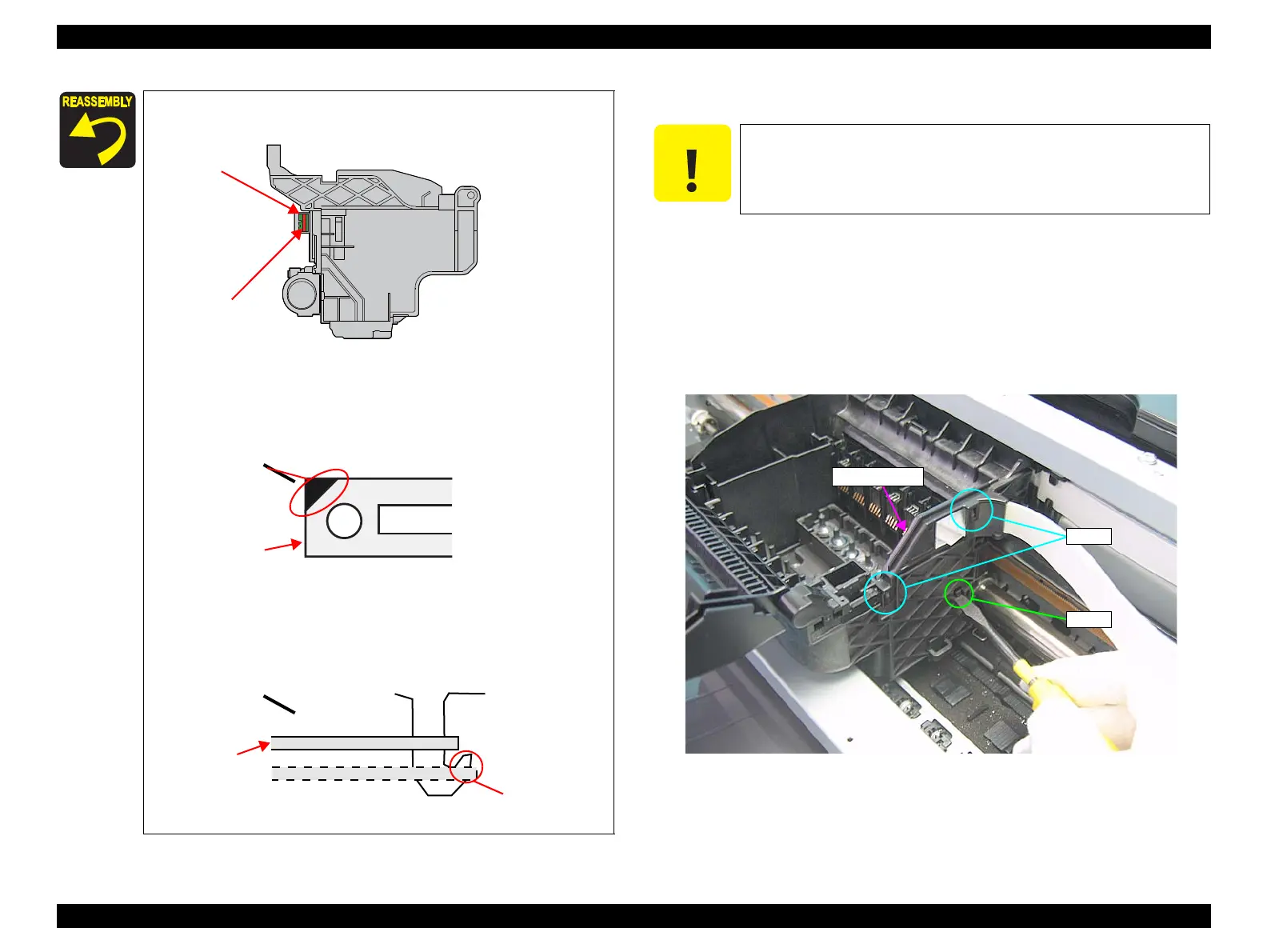

Figure 3-46. Removing the Adapter Guide Holder (1)
Pass the CR Scale through the slot on the CR Encoder.
Figure 3-43. Reinstalling the CR Scale (1)
Set the left end of the CR Scale with the black mark facing
upwards.
Figure 3-44. Reinstalling the CR Scale (2)
Place the right end of the CR Scale correctly so that it is not
hooked onto the Right CR Shaft Mounting Plate.
Figure 3-45. Reinstalling the CR Scale (3)
CR Scale
Hooked Portion
OK
NG
So as not to damage the FFC, do not use any tools with the
sharp ends when removing the Cable Holder.
Be careful not to break the hooks of the Cable Holder.
To Next Page
