L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 74
Confidential
3.4.7 LD Roller
1. Remove the ASF Assy. (p.71)
2. Remove the ASF Motor. (p.96)
3. Remove the Combination Gear 29,11 from the ASF Assy.
4. Release the tab that secure the LD Spur Gear, and remove the LD Spur Gear from
the LD Roller Shaft.

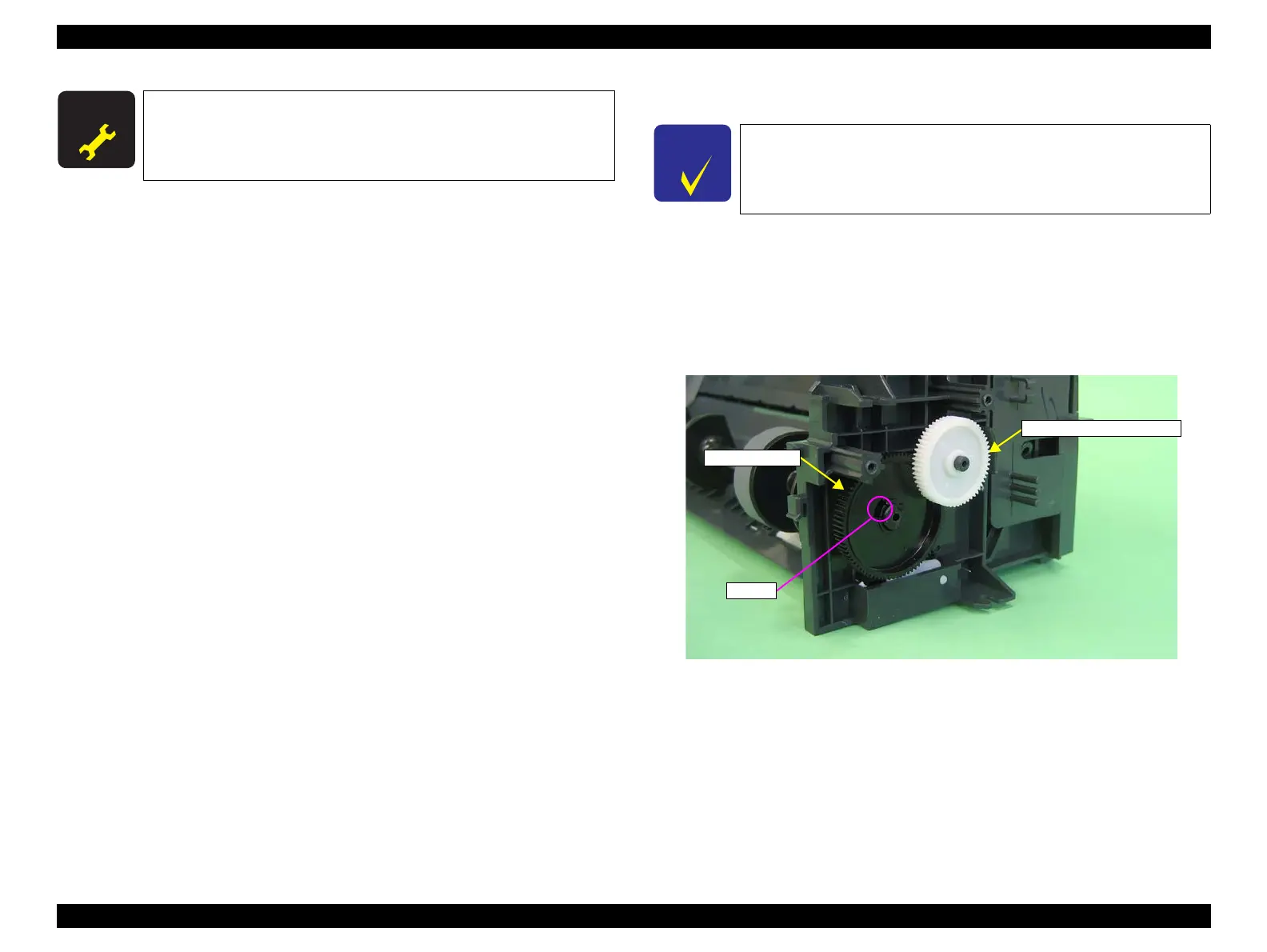

Figure 3-89. Removing the LD Roller (1)
A D J U S T M E N T
R E Q U I R E D
After replacing or removing the ASF Assy, always make the required
adjustments referring to the following.
“Chapter 4 Adjustment (p.109)
C H E C K
P O I N T
When replacing the LD Roller, replace the Retard Roller Assy
together with the LD Roller. (Refer to 3.4.8 Retard Roller Assy
(p.76).)
Combination Gear 29.11
LD Spur Gear
Tab
