Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 91
Confidential
3.4.17 Upper Paper Guide Assys
1. Remove the Release Holder Assy. (p.90)
2. Remove the PE Sensor Holder. (p.99)
3. Pass a sheet of A3 size paper into the gap between the Upper Paper Guide Assy
and the Rear Paper Guide.

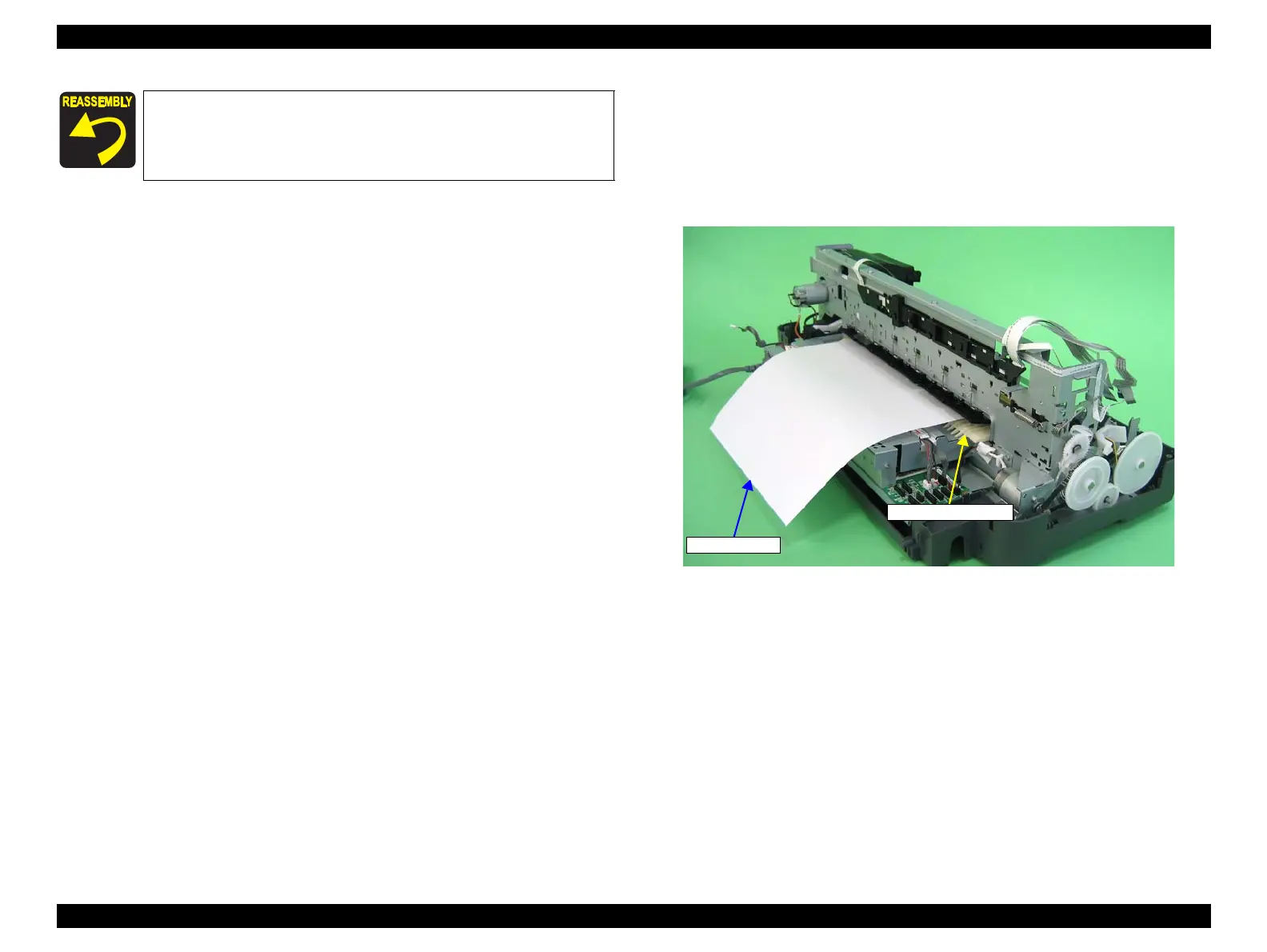

Figure 3-135. Setting the Paper
 Align the three upper tabs on the Release Holder Assy with the
positioning holes on the Main Frame. See Figure 3-134 (p.90)
 Tighten the screws in the order shown in Figure 3-134
A3-size paper
Rear Paper Guide

Epson L1800 Specifications

General

Style	Inkjet
Color	Black
Control Panel	-
Noise Level
Interface Connectors	10/100/1000BaseTX
Wireless Connectivity	Wireless LAN/WiFi Direct
Apple Macintosh OS X 10.5 or later; Linux	Windows 7
Mac OS® X 10.6.8 – 10.10.x8	Windows 7
MPT: Min. A6R - Max. A4R (Legal)	DL (Envelope)
MPT: Min. A6R – Max. A4 (Legal)	5 in x 7 in
Duplex Printing: A4 / Letter / Oficio / Folio / Legal / JIS B5 / ISO B5 / Executive / Statement	C6 (Envelope)
Manual Feed Slot: Letter	A6
Functions	Scan
Features	Creative Print mobile app
Printing Method	Monochrome
Nozzles	-
Print Resolution	Up to 5760 x 1440 dpi (mono) / up to 5760 x 1440 dpi (color)
Scanner Type	-
Scan Formats	-
Copy Modes	-
Max Copies	-
Copy Size	-
Copy Scale	-
Power Consumption	6 Watt (Ready)
Battery Life	-
Battery Capacity	-

Weight and Dimensions

Depth	322 mm
Height	215 mm
Width	705 mm
Net Weight	24.62 kg
