L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 80
Confidential
3.4.11 Foot
1. Remove the Printer Mechanism. (Refer to 3.4.4 Lower Housing / Printer
Mechanism (p.61).)
2. Remove the six foot at the backside of the Lower Housing.

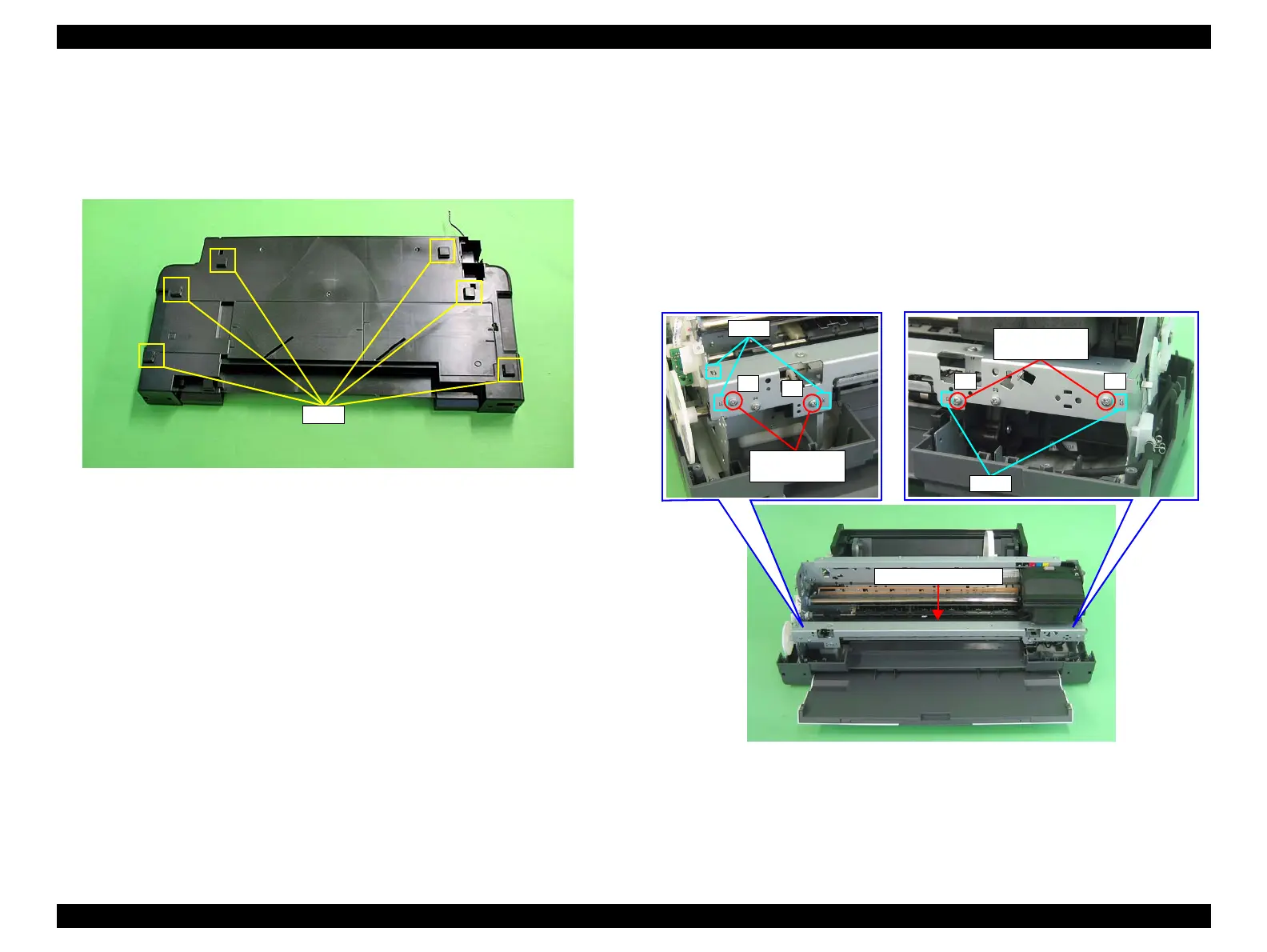

Figure 3-105. Removing the Foot
3.4.12 Paper EJ Frame Assy
1. Remove the Upper Housing Support Assy. (p.52)
2. Remove the Ink Supply Tube Assy section. (p.102)
3. Remove the Ink Supply Tank Tube Assy section. (p.104)
4. Remove the Left Frame Support Plate. (Refer to 3.4.5 Carriage Shaft / Carriage
Unit Step4 (p63), Step5(p63).)
5. Return the rotation position of the Right PG Cam.
6. Remove the four C.B.S. M3 x 6 that secure the Paper EJ Frame Assy.
Figure 3-106. Screws that Secure the Paper EJ Frame Assy
Foot
Paper EJ Frame Assy
2
3
Tabs
2) C.B.S. M3x6
(8±1 kgf.cm)
4
1
Tabs
2) C.B.S. M3x6
(8±1 kgf.cm)
