Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Disassembling the Printer Mechanism 81
Confidential

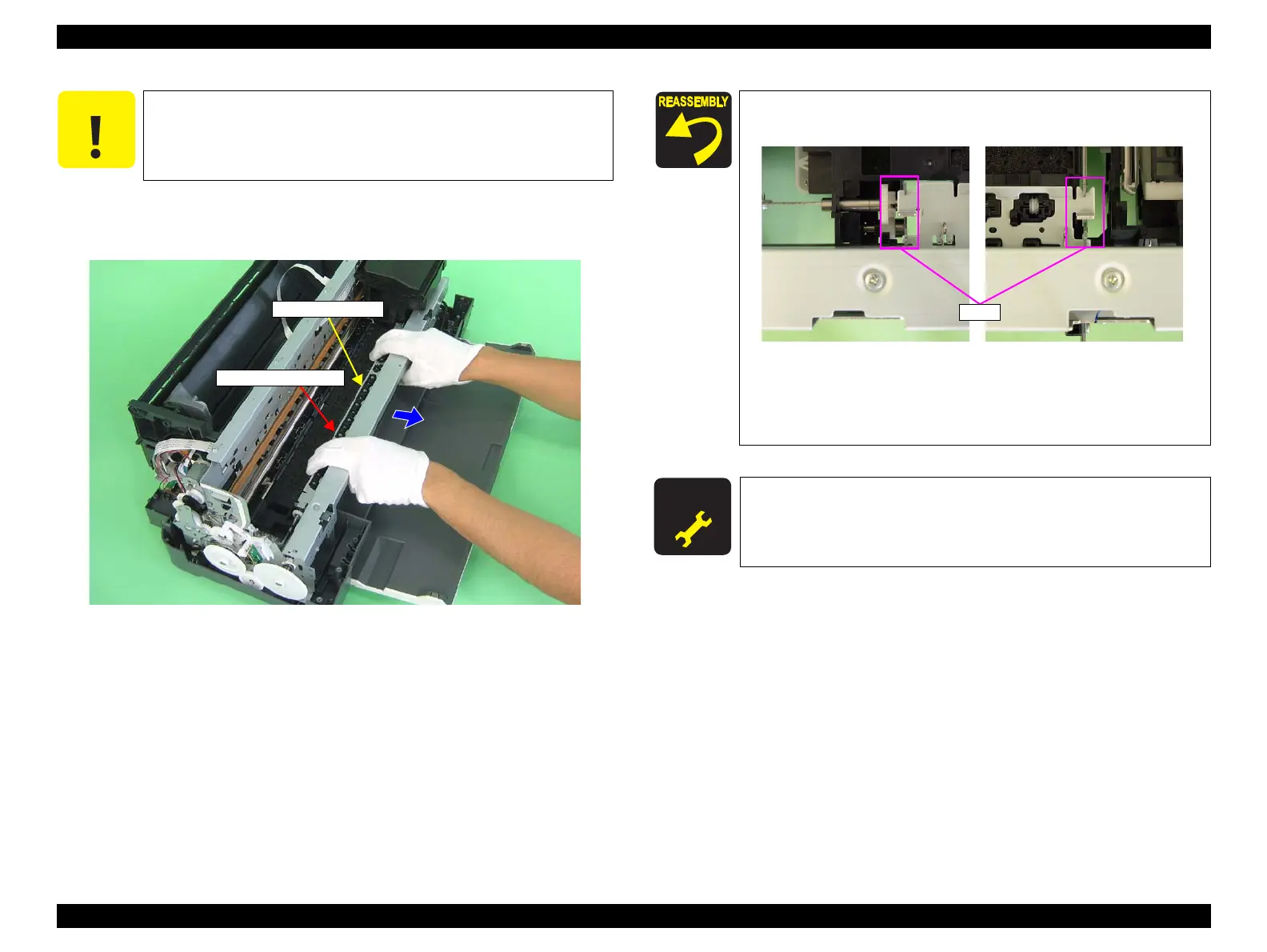

7. Pull frontward the Paper EJ Frame Assy and remove it from the Printer
Mechanism.
Figure 3-107. Removing the Paper EJ Frame Assy
C A U T I O N
When performing the following procedure, take care not to scratch
the Star Wheel.
Star Wheel Roller
Paper EJ Frame Assy
 Hook both rear ends of the Paper EJ Frame Assy onto the tabs
on the Main Frame.
Figure 3-108. Reinstalling the Paper EJ Frame Assy
 Align the tabs with the five positioning holes.
See Figure 3-106 (p.80)
 Tighten the screws in the order shown in Figure 3-106
A D J U S T M E N T
R E Q U I R E D
After replacing or removing the Paper EJ Frame Assy, always make
the required adjustments referring to the following.
 “Chapter 4 Adjustment (p.109)”
Tabs
