3.4.2 CR Scale
1. Remove the Upper Housing / Printer Cover. (p.50)
2. Release the Carriage Lock, and move the Carriage Unit to the center.
(Refer to 3.1.6 Locking/Releasing the Carriage (p.41).)
3. Pull the right end of the CR Scale in the direction of the arrow, and remove the CR
Scale from the tab on the Right CR Shaft Mounting Plate.
4. Pull out the right end of the CR Scale towards the left direction from the rear of the
Carriage Unit.

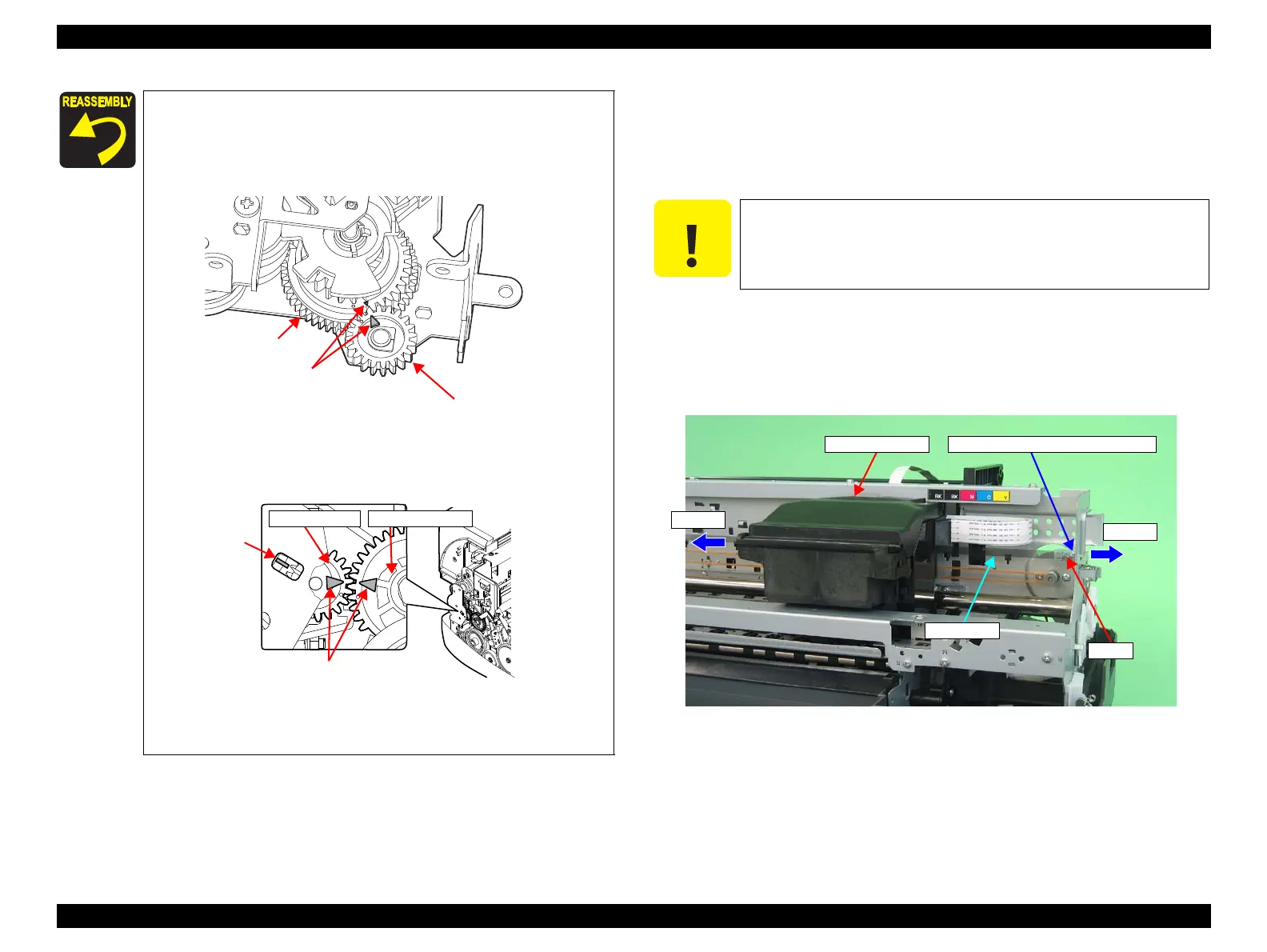

Figure 3-39. Pulling out the CR Scale
Align the phase of the APG Assy in the following procedure.
1.Align the delta marks of Spur Gear 16 and Combination Gear
22, 28.8, 32.4.
2. At the position where the tab can be identified through the
notch of the PG Frame, align the delta marks of Spur Gear
16 and PG Cam (Left).
Figure 3-38. Phase Aligning
Tighten the screws in the order shown in Figure 3-37.
Delta Marks
Spur Gear 16
Combination Gear,
22, 28.8, 32.4
Delta Marks
Tab
Spur Gear 16 PG Cam (Left)
When performing the following procedure, take care to prevent
both ends of the CR Scale from being broken.
Step 3
Step 4
Carriage Unit
Right CR Shaft Mounting Plate
CR Scale
Hook
To Next Page
