Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Disassembling the CISS section 101
Confidential

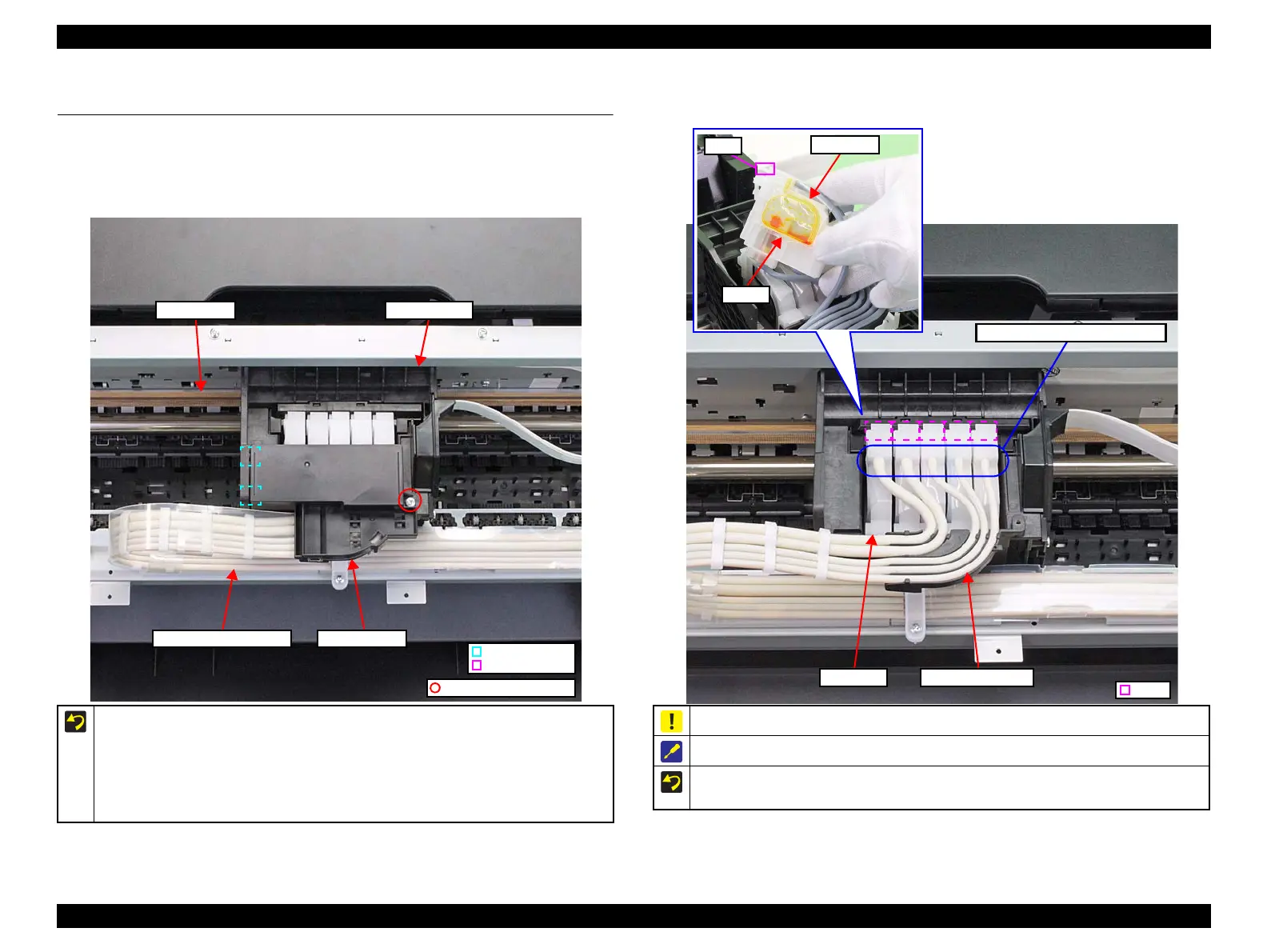

3.7 Disassembling the CISS section
3.7.1 Adapter section
3.7.1.1 Adapter Cover
3.7.1.2 Adapter
 When attaching the Adapter Cover, align the dowels (x2) with the holes (x2) on the
Carriage Unit, then engage the hook.
 Take care not to catch the Ink Supply Tube Assy.
 After installing the Adapter Cover to the Carriage Unit, move the Carriage Unit from
side to side while holding the Timing Belt to make sure that the Ink Supply Tube
Assy does not apply extra load of the Carriage Unit movement.
CBP. 3X8 (6±1 kgf.cm)
Carriage Unit
Adapter CoverInk Supply Tube Assy
Dowel and Hole
Timing Belt
Hook
Be careful not to damage or peel off the film of the Adapter.
Use a precision screwdriver when releasing the hooks of the Adapter.
When connecting the Ink Supply Tube to the Adapter, take care not to connect it to a
wrong joint.
Adapter
Film
Hook
Adapter
Hook
Connection of Ink Supply Tubes
Ink Supply Tube
