Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Disassembling the CISS section 103
Confidential

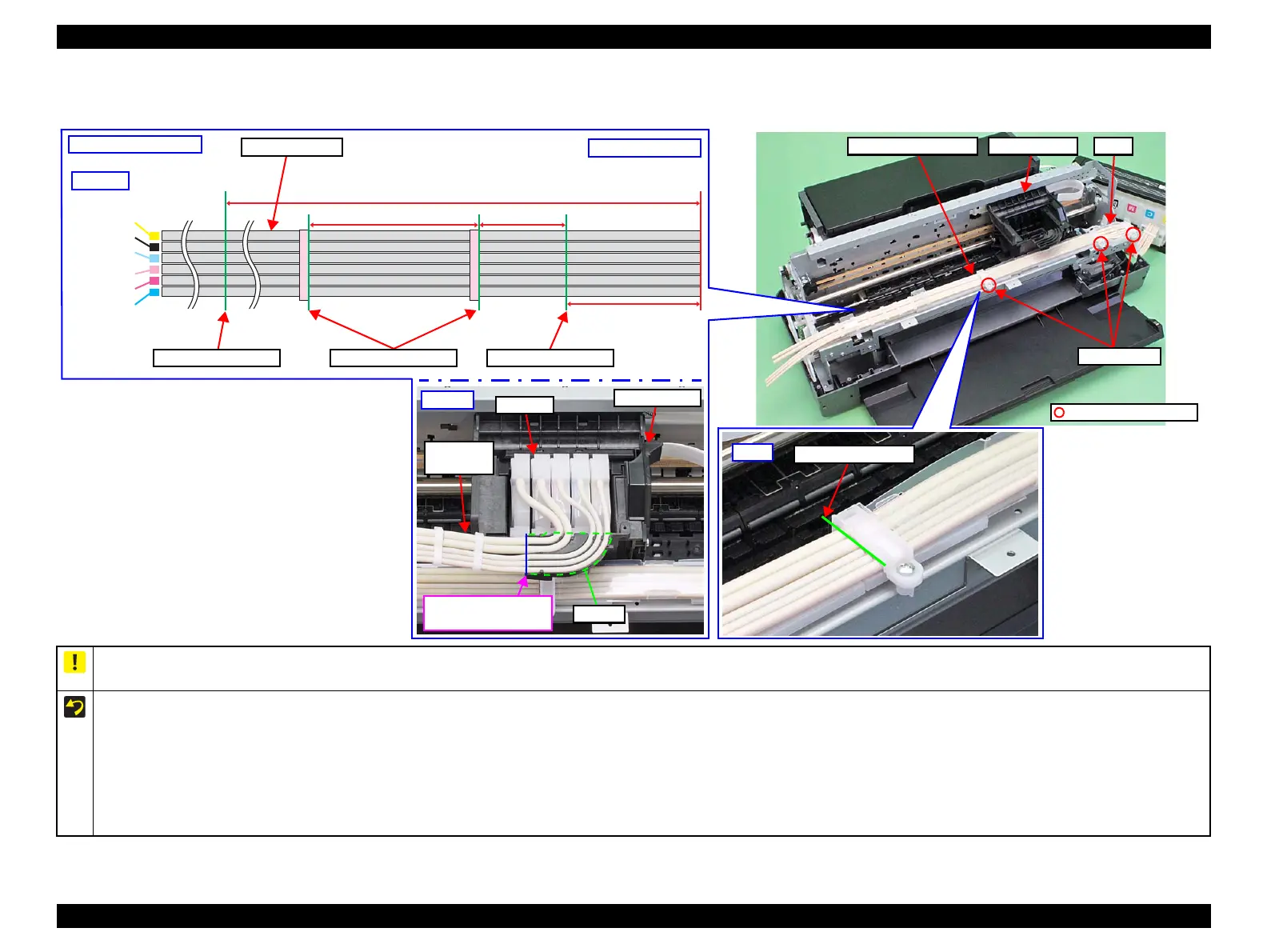

3.7.2.3 Ink Supply Tube Assy
 Make sure the Tube Clamp (x2) are aligned with the Marking Position B shown above and attached on the Ink Supply Tube Assy.
 When installing the Tube Holder, take care not to catch the Ink Supply Tube Assy.
Follow the procedure below when installing the Ink Supply Tube Assy.
1. Attach the Tube Guide Sheet (w/Tube Guide Sheet sub) on the printer. (p.103)
2. Connect the Ink Supply Tubes (x6) to the Joint. (p.105)
3. Attach the Tube Holder (x3) and secure them with the screws (x1 each). When attaching the one nearest to the 130 digit side, align it with the Marking Position A on the Ink Supply Tube
Assy.
4. Connect the Ink Supply Tube to the Adapter, and install the Adapter to the Carriage Unit. (p.101)
5. Route the Ink Supply Tubes through the grooves on the Carriage Unit, and align the Marking Position C on the Ink Supply Tubes with the edge of the grooves as shown in the figure above.
Tube Holders
Ink Supply Tube Assy
CBP. 3X8 (6±1 kgf.cm)
JointCarriage Unit
Step3
Marking Position A
90 ± 1
Unit: mm
352.5 ± 1
67.5 ± 195 ± 1
Yellow
Black
Light Cyan
Magenta
Light Magenta
Cyan
Joint side
Adapter Assy side
Marking Position A
Ink Supply Tube
Ink Supply Tube Assy
Marking Position B Marking Position C
Adapter
Align markings with
edge of grooves.
Carriage Unit
Step 5
Grooves
Ink Supply
Tube
