L1800 Revision A
Disassembly And Assembly Removing the Housings 49
Confidential
3.2.6 Decoration Plate Left/Right
1. Remove the Rear Housing. (p.46)
2. Remove the Front Decoration Plate Left/Right. (p.46)
3. Remove the Ink Supply Tank Assy from the Decoration Plate Right.
4. Remove the four C.B.P. M3 x 8 screws that secure the Ink Eject Cover 1st, and
remove the Ink Eject Cover 1st.
5. Remove the four C.B.P. M3 x 8 screws that secure the Ink Eject Cover 2nd, and
remove the Ink Eject Cover 2nd.
6. Remove the two C.B.P. M3 x 8 screws that secure the Decoration Plate Right.

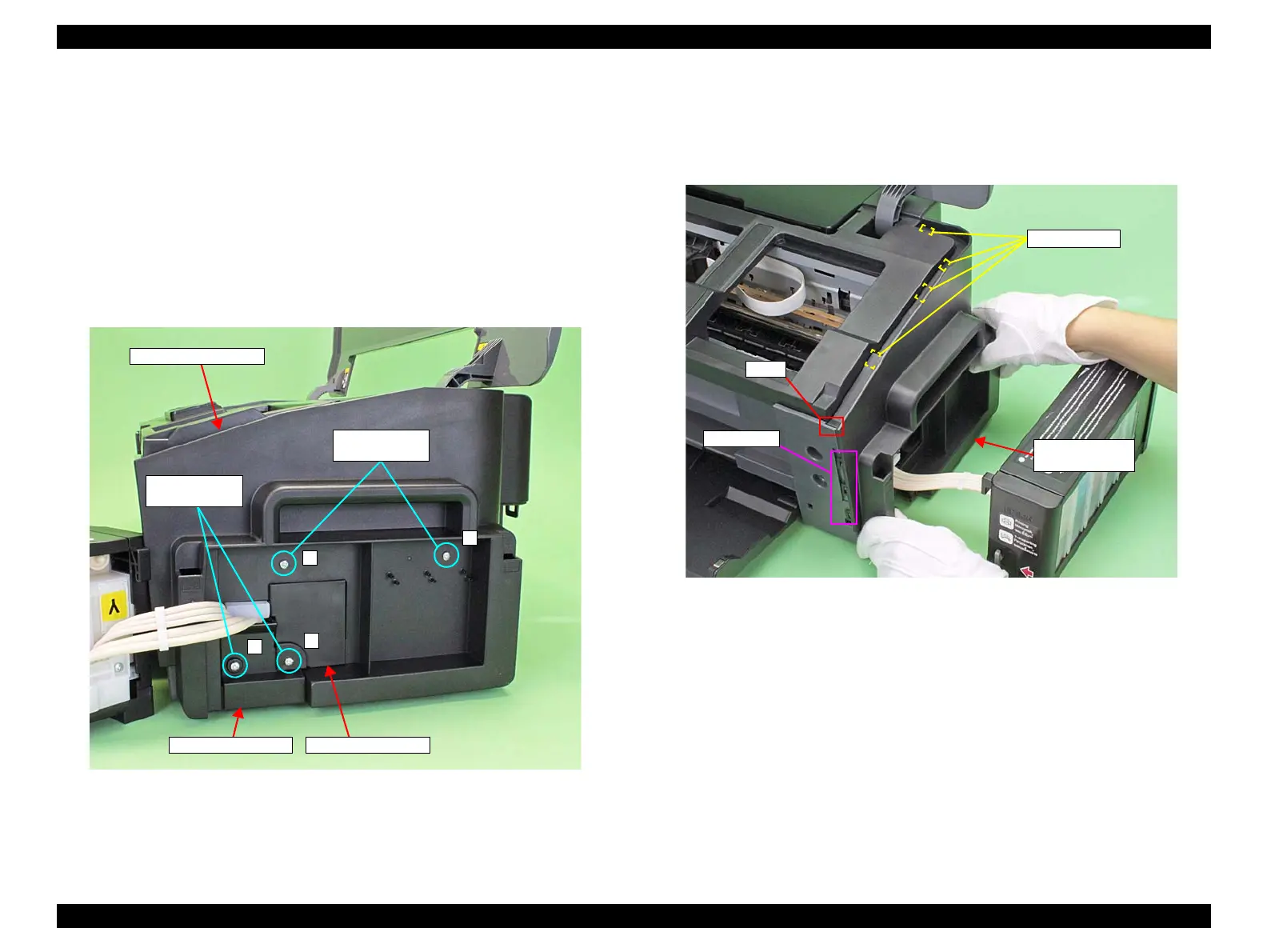

Figure 3-22. Removing the Decoration Plate Left/Right (1)
7. Release the three hooks on the front of the Decoration Plate Right and lift the plate
a little to release the tab and the four guide pins on the upper side, then remove the
Decoration Plate Right.
8. In the same way as in Step 7, remove the Decoration Plate Left.
Figure 3-23. Removing the Decoration Plate Left/Right (2)
Decoration Plate Right
1
Ink Eject Cover 1stInk Eject Cover 2nd
4) C.B.P. M3x8
(6±1 kgf.cm)
4) C.B.P. M3x8
(6±1 kgf.cm)
2
3
4
Decoration Plate
Right
Hook (x3)
Tab
Guide pin (x4)
To Next Page
