Epson L1800 Service Manual

L1800 Revision A
Disassembly And Assembly Removing the Housings 46
Confidential

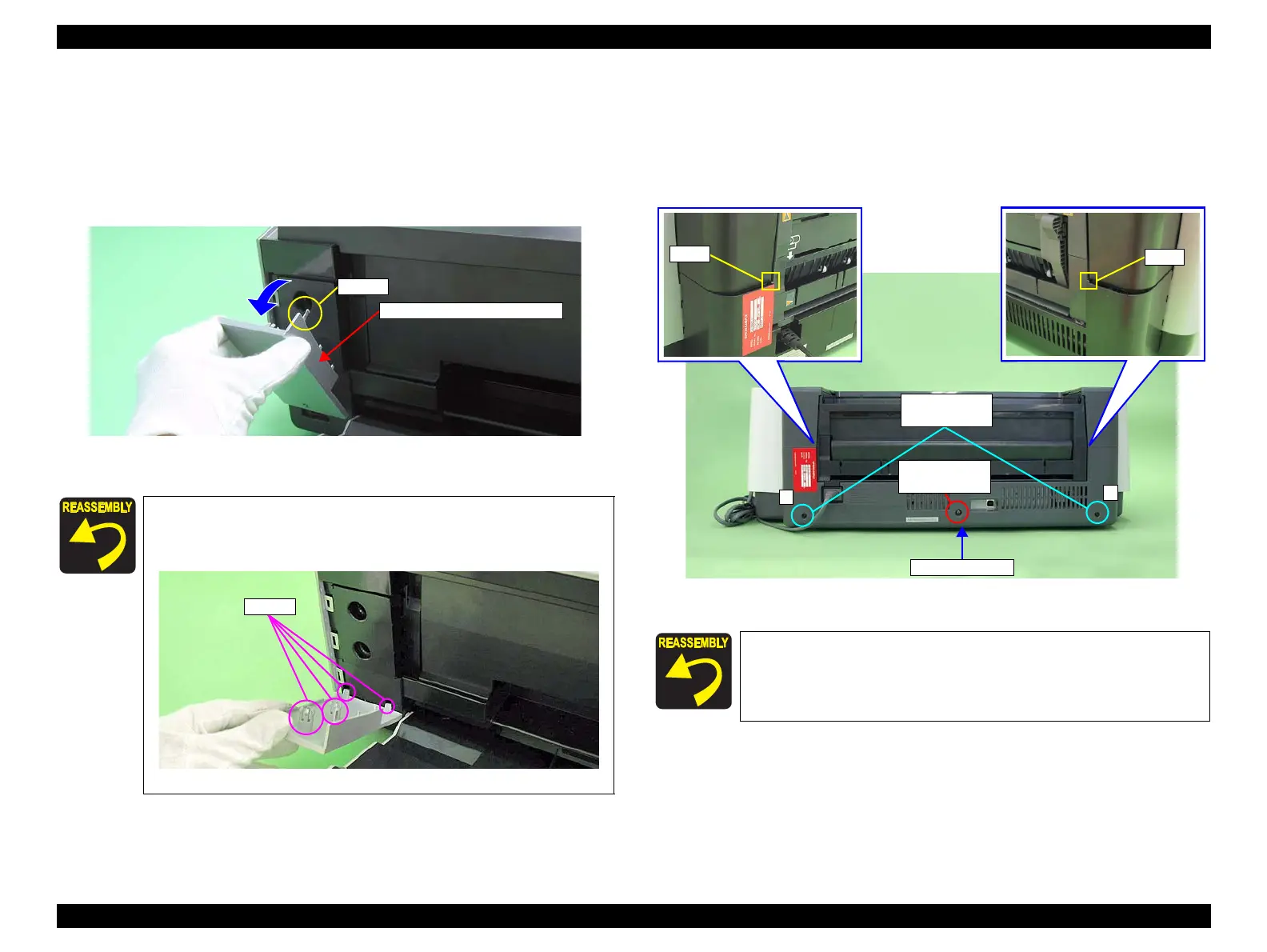

3.2.3 Front Decoration Plate Left/Right
1. Open the Stacker Assy.
2. While releasing the hook on the Front Decoration Plate Left, open the plate in the
direction of the arrow, and remove it.
3. In the same way, remove the Front Decoration Plate Right.
Figure 3-15. Removing the Front Decoration Plate Left/Right
3.2.4 Rear Housing
1. Remove the two C.B.P. M3 x 8 screws and the C.B.S. M3 x 6 screw that secure the
Rear Housing.
2. Disengage the two tabs from the Upper Housing and remove the Rear Housing.
Figure 3-17. Removing the Rear Housing
When installing the Front Decoration Plate L/R, insert the two
hooks at the bottom of them into the holes of the Lower housing,
then secure the Front Decoration Plate L/R with the other hooks.
Figure 3-16. Reinstalling the Front Decoration Plate Left/Right
Front Decoration Plate Left
Hook
Hook
Tighten the screws in the order shown in Figure 3-17.
Tab
4) C.B.P. M3x8
(6±1 kgf.cm)
Rear Housing
Tab
2) C.B.S. M3x6
(6±1 kgf.cm)
1
2
