4.2 Adjustment Using Adjustment Program
This section explains the adjustments using the Adjustment Program.
4.2.1 Head angular adjustment
The following pattern is printed. The lines on the top are printed while the carriage
moves from the home to the other side (from 1 to 80 digit), and the lines at the bottom
are printed while the carriage returns to the home (80 to 1 digit).

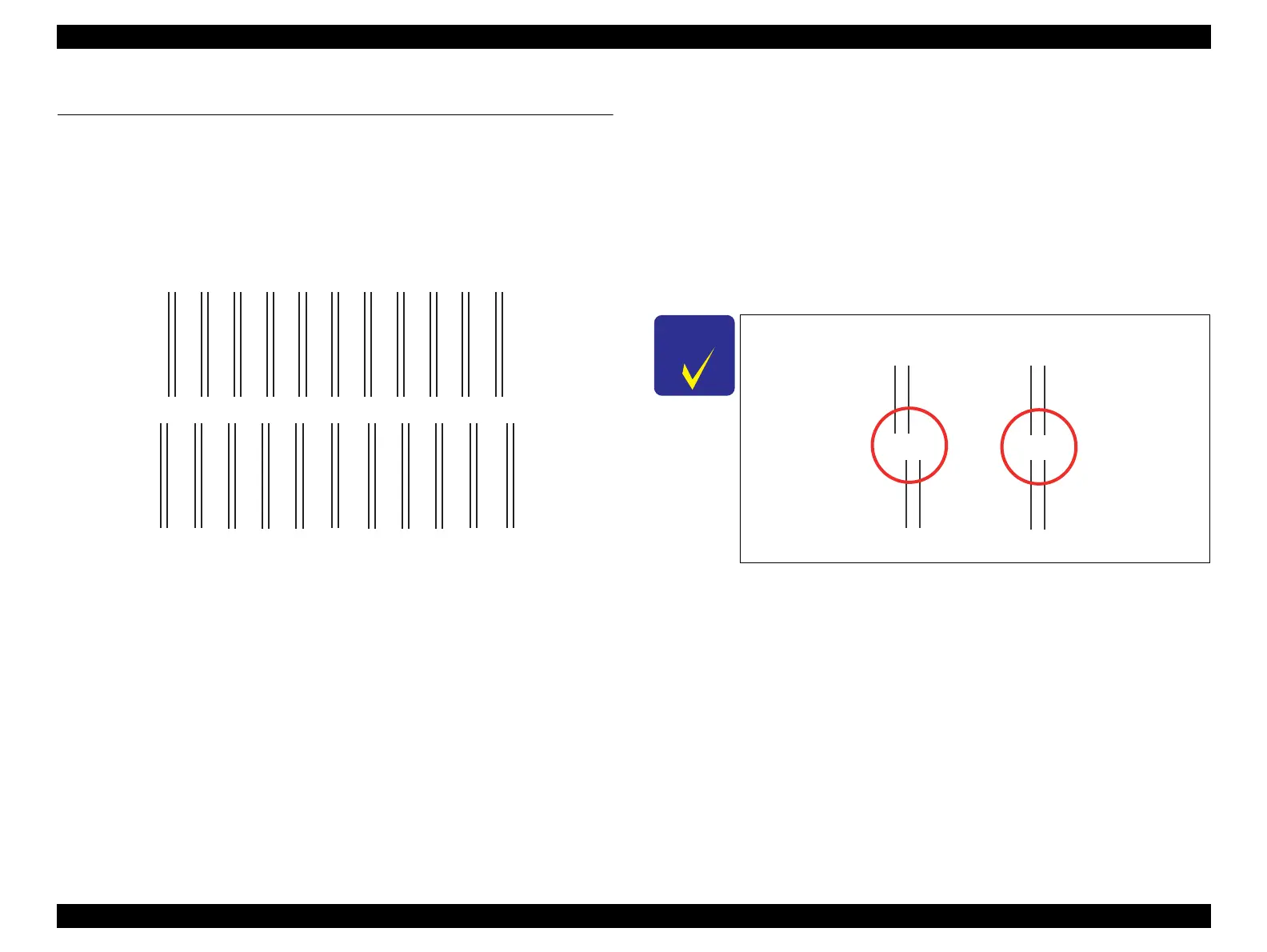

Figure 4-1. Head Angular Adjustment Printout Pattern
How to Judge
Examine the printout patterns and enter the value (-10 to 10) for the most straight lines.
Additional information
In the following cases, reassemble or replace the Printhead and carry out the
adjustment again.
The difference between the adjusted values of 1 -> 80 and 80 -> 1 exceeds 8.
The larger the difference is, the more the Printhead is tilted in the front-to-
back direction. (Not parallel to the paper surface.)
The average of the values of 1 -> 80 and 80 -> 1 falls outside the range from -
4 to +4.
The further the value is beyond the range, the more the Printhead is tilted in
the left-to-right direction. (Not parallel to the paper edge.)
-6
-4
-2
2
46
-6 -4 -2
2
468
8
10
10
0
-8
-10
-8-10
0
Example for judgement
