L1800 Revision A
Disassembly And Assembly Removing the Housings 47
Confidential

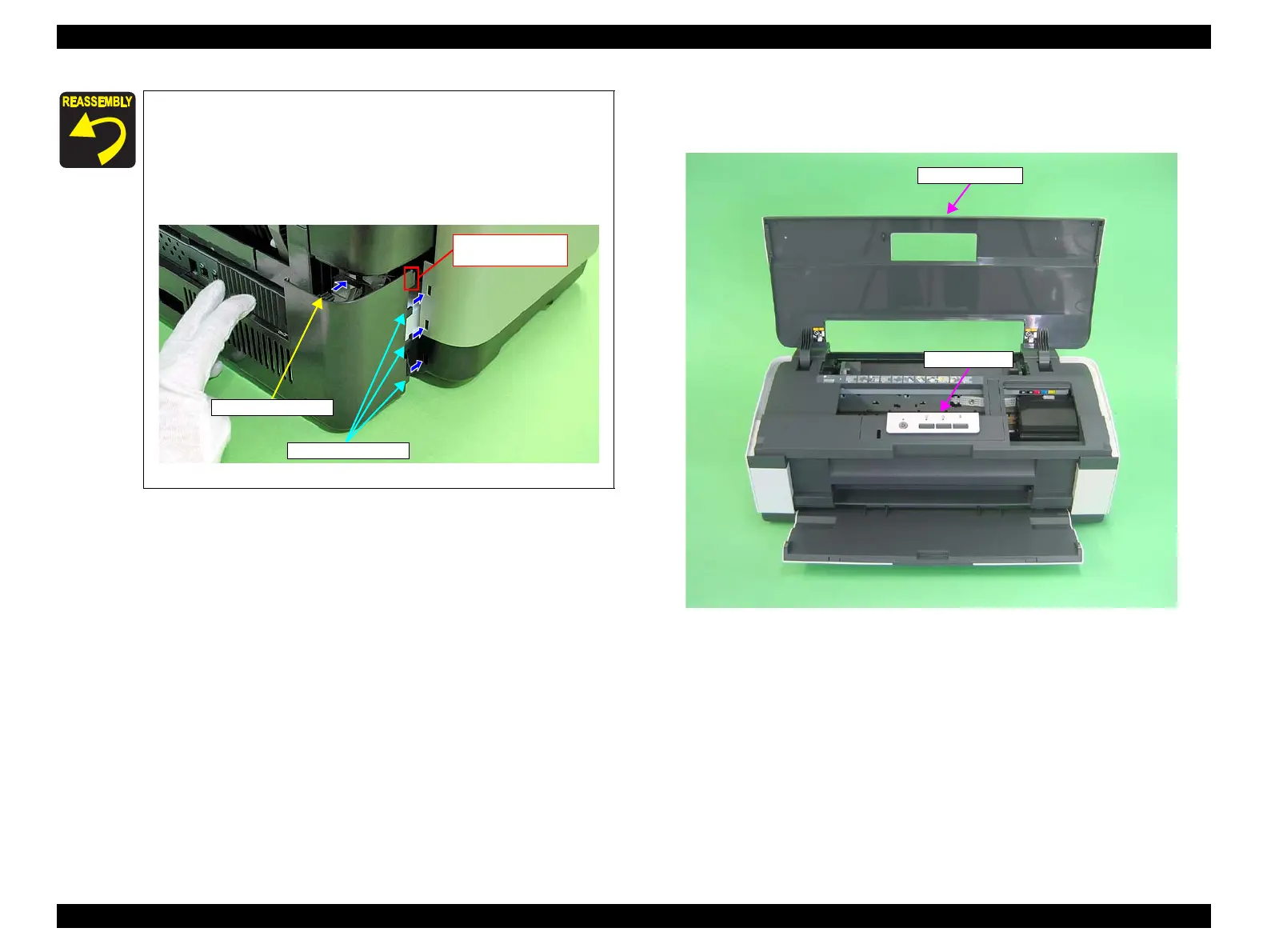

3.2.5 Panel Unit
1. Open the Printer Cover.
Figure 3-19. Removing the Panel Unit (1)
Align the positioning tabs (one each on the left/right) with the
positioning holes (one each on the left/right) on the Upper
Housing.
Align the positioning tabs (three each on the left/right) with the
positioning holes (three each on the left/right) on the Decoration
Plate Left/Right and the Lower Housing.
Figure 3-18. Reinstalling the Rear Housing
Positioning tab
Hook this to the
Upper Housing
Positioning tab
Panel Unit
Printer Cover
